ESAB PT-36 Data Manual

ESAB PT-36 Data Manual

Cutting data for smartflow, esp-150 & esp-200, esp-1000, pcc - 90 / 91
Hide thumbs Also See for PT-36:

Advertisement

Quick Links

Download this manual See also: Instruction Manual

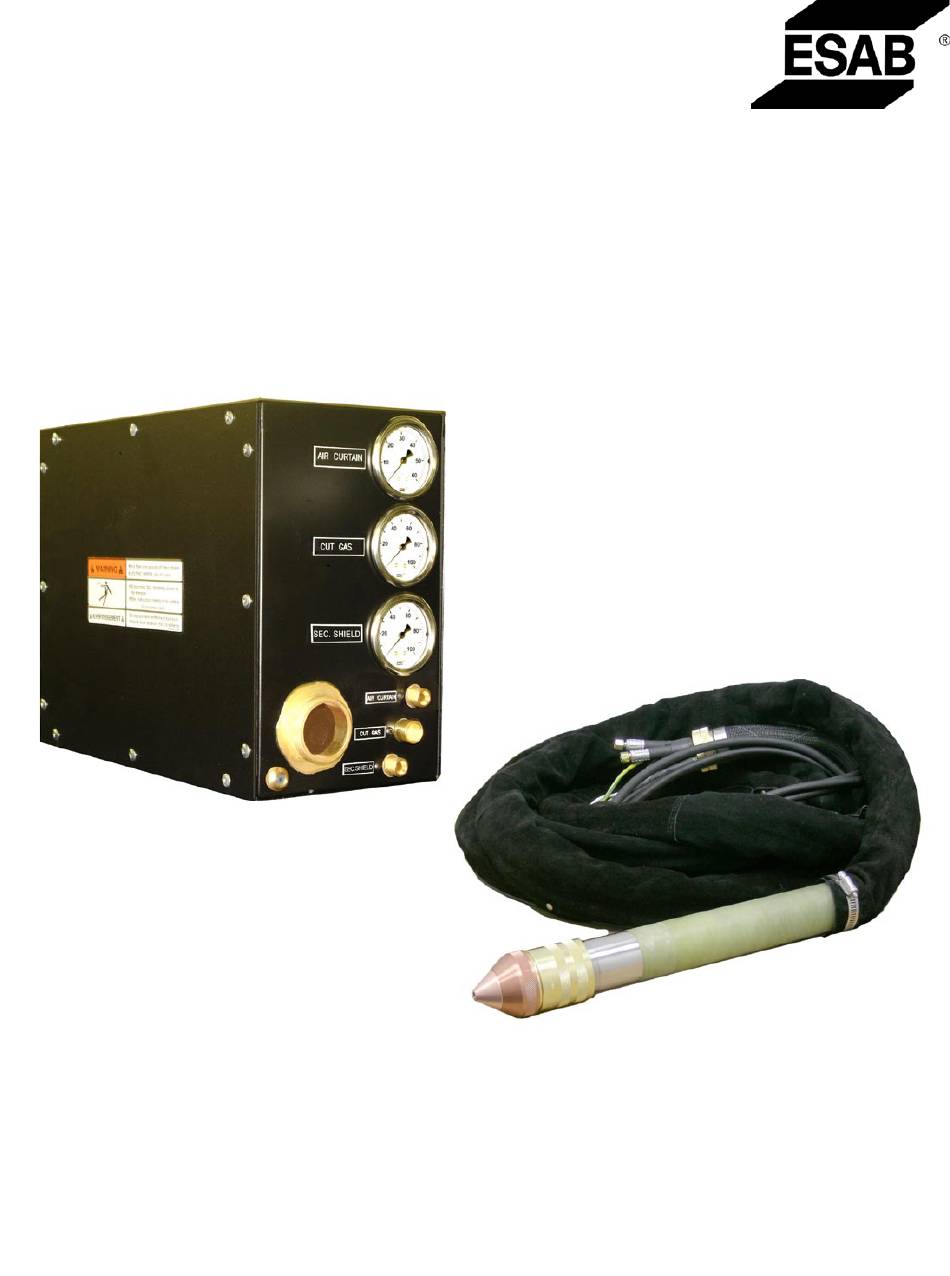

PT-36 Cutting Data
•
SmartFlow
•
ESP-150 & ESP-200
•
ESP-1000, PCC - 90 / 91
Cut Data Manual
0558006876
08/2007
