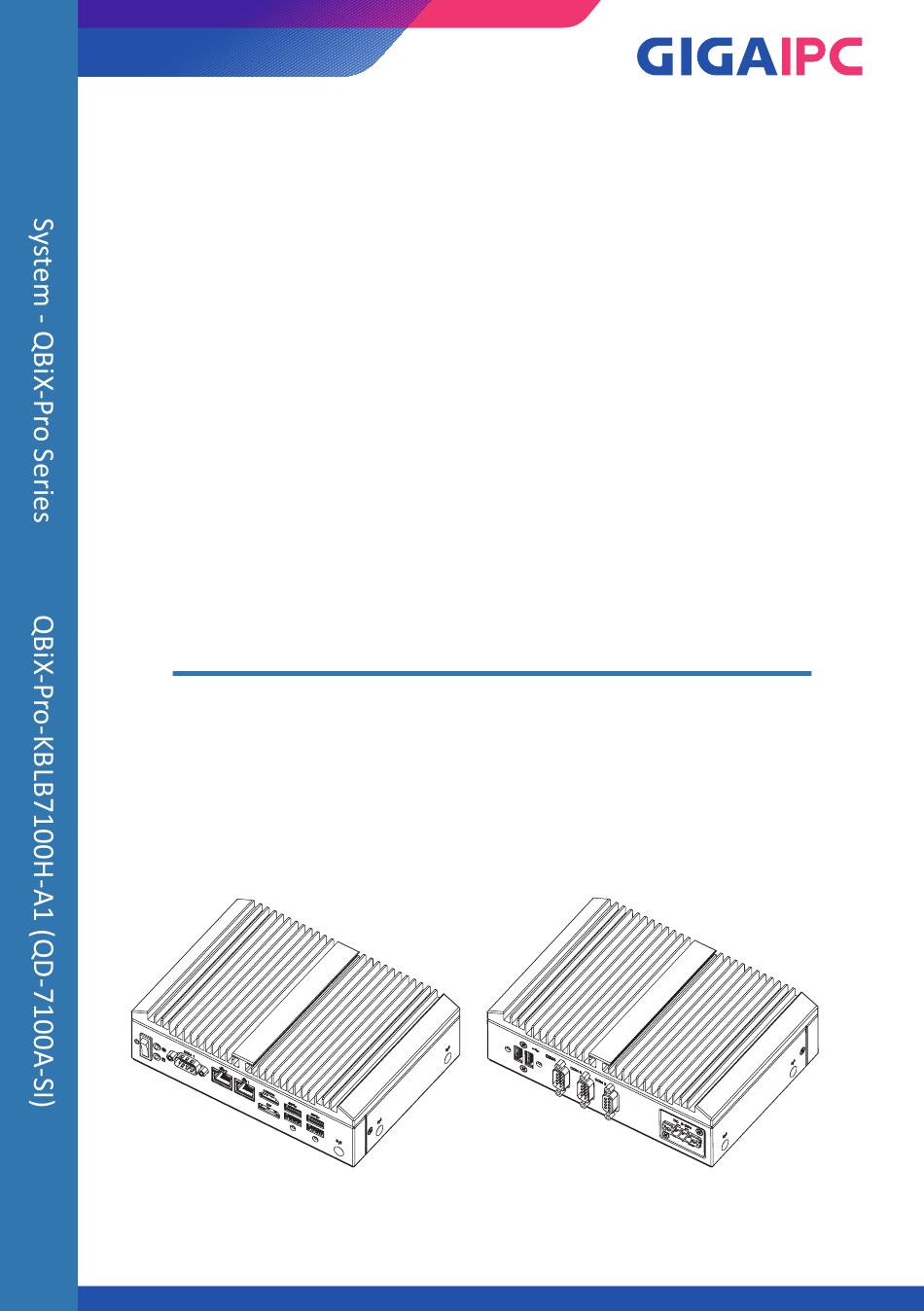

QBiX-Pro-KBLB7100H-A1
(QD-7100A-SI)
QBiX-Pro Industrial Embedded System
Quick Start Guide
1
www.gigaipc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QD-7100A-SI and is the answer not in the manual?

Questions and answers

Related Manuals for GIGAIPC QD-7100A-SI

Summary of Contents for GIGAIPC QD-7100A-SI

  • Page 1: Qbix-Pro Industrial Embedded System Quick Start Guide

    QBiX-Pro-KBLB7100H-A1 (QD-7100A-SI) QBiX-Pro Industrial Embedded System Quick Start Guide www.gigaipc.com...

  • Page 2: Copyright Notice

    While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein.

  • Page 3: Acknowledgement

    Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com...

  • Page 4: Packing List

    System kit 19V / 65W adapter Power cord (May vary based on local distribution) FPC SATA Cable Exsiccator (10g) Thermal pad for HDD If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com...

  • Page 5: About This Document

    (if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com...

  • Page 6: Safety Precautions

    Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com...
  • Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...

  • Page 8: Fcc Statement

    Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com...

  • Page 9: Table Of Contents

    Safety Precautions ............... 6 FCC Statement ................8 Chapter 1 - Product Specifications Specifications ............... 15 Chapter 2 – QBiX-Pro-KBLB7100H-A1 (QD-7100A-SI) Industrial Embedded System Kit Dimension ..............18 Getting Familiar with Your Unit........19 A) Wireless Module: How to safely install the Module (Wireless Module inclusion may vary based on local distribution) ..............
  • Page 10 DC_IN (DC IN 1x4-pin power connector ) ..... 39 2.2.10 SPK_OUT (Speaker out connector) ....... 40 2.2.11 FP_Audio (Front Audio connector) ........41 2.2.12 BKL_CN (Back light brightness control connector) ..42 2.2.13 SYS_PANEL (Front panel header) ........43 2.2.14 LVDS (LVDS connector) ..........44 www.gigaipc.com...
  • Page 11 Hardware Monitor ............57 4.2.4 Super IO Configuration ..........58 4.2.4.1 Serial Port Configuration ..........59 4.2.6 S5 RTC Wake Settings ........... 61 4.2.7 OS Selection ..............62 4.2.8 NVMe Configuration ............. 63 Chipset Menu ..............64 Security Menu ............... 66 www.gigaipc.com...
  • Page 12 4.4.1 Security Menu ............... 67 Boot Menu ..............69 Save & Exit Menu ............70 www.gigaipc.com...

  • Page 13: Chapter 1 - Product Specifications

    Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com...
  • Page 14 www.gigaipc.com...

  • Page 15: Specifications

    Specifications System QBiX-Pro-KBLB7100H-A1 (QD-7100A-SI) Dimension System Size : 178W x 125D x 52.7H (mm) Intel® Core™ i3-7100U Processor 14nm, 2 cores, 4 threads 2.40 GHz TDP 15W, 3 MB SmartCache Chipset 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB...
  • Page 16 System QBiX-Pro-KBLB7100H-A1 (QD-7100A-SI) Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Operation Non-operating temperature: -20°C to 70°C Temperature Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr Vibration During / Per Axis, with SSD/M.2 2280...

  • Page 17: Chapter 2 - Qbix-Pro-Kblb7100H-A1 (Qd-7100A-Si) Industrial Embedded System Kit

    Chapter 2 Chapter 2 – QBiX-Pro-KBLB7100H-A1 (QD-7100A-SI) Industrial Embedded System Kit www.gigaipc.com...

  • Page 18: Dimension

    Dimension www.gigaipc.com...

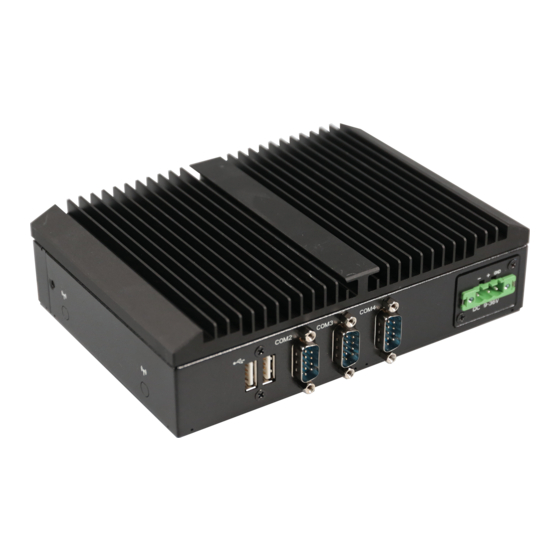

  • Page 19: Getting Familiar With Your Unit

    2 x RJ45 LAN port 1 x COM1 HDD LED [Rear Side] [Right Side] 2 x USB2.0 1 x COM header (RS422/485/232, 2 x Antenna (optional) RI/5V/12V) 2 x COM Port (RS-232) 1 x 3 pin Terninal Block connector www.gigaipc.com...
  • Page 20 2 x DDR4 SO-DIMM sockets, Max. 1 x 2230 M.2 E-Key Capacity 32 GB, Support Dual 1 x 2280 M.2 M-Key Channel DDR4 2133 MHz (PCIe x4, SATA 6Gb/s) 1 x Full-size miniPCIe with SIM slot 2.5’’ Hard drive/ SSD www.gigaipc.com...

  • Page 21: A) Wireless Module: How To Safely Install The Module (Wireless Module Inclusion May Vary Based On Local Distribution)

    Module (Wireless Module inclusion may vary based on local distribution) Carefully insert the wireless module into Lock the screw in the middle. the M.2 slot 鎖入固定於無線模組中央頂端的螺 小心地將無線模組安裝於M.2插槽中。 絲。 青山依舊在，幾度夕陽紅。慣看秋月春風。一 壺濁酒喜相逢，浪花淘盡英雄。是非成敗轉頭 Install the antenna on the left side of the connection wireless module down. 向下安裝連結於無線模組左側頂端天線。 www.gigaipc.com...

  • Page 22: B) Memory Installation: Ddr4 So-Dimm

    B) Memory Installation: DDR4 SO-DIMM SO-DIMM www.gigaipc.com...

  • Page 23: Antenna Installation (Antenna Inclusion May Vary Based On Local Distribution)

    Antenna Installation (Antenna inclusion may vary based on local distribution) www.gigaipc.com...
  • Page 24 www.gigaipc.com...

  • Page 25: Support

    Support ● For a list of tested memory, M.2, 2.5’’ SSD, wireless adapters and OS supported, go to: http://www.gigaipc.com ● To download the latest drivers and BIOS updates, go to: http://www. gigaipc.com ● For product support, go to: http://www.gigaipc.com www.gigaipc.com...

  • Page 26: Safety And Regulatory Information

    At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. www.gigaipc.com...

  • Page 27: Chapter 2 - Hardware Information

    Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 28: Jumpers And Connectors

    Jumpers and Connectors www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 29 COM1 (COM RI# pin RI#/5V/12V Select) RUSB1 USB3.0 Connector RUSB2 19 HDMI2_DP HDMI connector (Bottom) & DP connector (Top) 20 LAN1, LAN2 LAN connector www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 30 23 M2M1 M.2 Slot, SATA/PCIeX4, NGFF2280 24 SIM-CARD Sim Card slot 25 MPCIE Mini PCIe full size, support 3G/4G module SODIMM1 DDR4 SO-DIMM Slot SODIMM2 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 31: Cpu Fan (Cpu Fan Connector)

    CPU FAN (CPU FAN connector) Pin 1 CPU FAN connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH 1 2 3 4 Pin No. Definition Detect Speed Control www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 32: System Fan (System Fan Connector)

    System FAN (System FAN connector) Pin 1 System FAN Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH 1 2 3 4 Pin No. Definition Detect Speed Control www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 33: Com2, Com3, Com4 (Serial Port Header)

    COM2, COM3, COM4 (Serial port header) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition No Connect RI/ 5V/ 12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 34: Fusb (Usb 2.0 Header)

    2.2.4 FUSB (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 35: Sataiii_0, Sataiii_1 (Sata 6Gb/S Connector)

    2.2.5 SATAIII_0, SATAIII_1 (SATA 6GB/S Connector) SATA Connector SATAIII_1,SATAIII_0 Connector PN Vendor WATM-07ABNB2BAUW3 WINWIN 770-83-07SW19 PINREX Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 36: Gpio_Cnt (General Purpose Input/Output Header )

    Pin 1 GPIO Connector Connector PN Vendor 725-81-12TW00 PINREX A2004WV-2X06P46 JOINT-TECH Pin No. Definition GPO1 GPI1 GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 SMB_CLK SMB_DATA www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 37: Satapw1, Satapw2 (Sata 6Gb/S Power Connector)

    2.2.7 SATAPW1, SATAPW2 (SATA 6Gb/s power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 38: At_Cn (At/Atx Power Mode Select Jumper)

    PINREX PH03N2-7BAN000 HORNGTONG Pin No. Definition AT MODE TXD5 ATX MODE Jumper setting 1-2 Close : AT mode. 2-3 Close : ATX mode.(Default setting) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 39: Dc_In (Dc In 1X4-Pin Power Connector )

    2.2.9 DC_IN (DC IN 1x4-pin power connector ) Pin 1 DC in connector Connector PN Vendor 753-81-04TW00 PINREX Pin No. Definition Power Power www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 40: Spk_Out (Speaker Out Connector)

    Audio Amplifie Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 41: Fp_Audio (Front Audio Connector)

    2.2.11 FP_Audio (Front Audio connector) Pin 1 Front Audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition MIC_L MIC_R Detect HPOUT_R FAUDIO_JD No Connect HPOUT_L www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 42: Bkl_Cn (Back Light Brightness Control Connector)

    2.2.12 BKL_CN (Back light brightness control connector) Pin 1 Back light brightness control Connector PN Vendor connector A2001WV-05P146 JOINT-TECH Pin No. Definition Back Light Enable Connector PN Vendor 721-81-05TW00 PINREX www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 43: Sys_Panel (Front Panel Header)

    Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 44: Lvds (Lvds Connector)

    Pin 1 LVDS Connector Connector PN Vendor 712-76-40GWE0 PINREX A1252WV-SF-2X20PD01 JOINT-TECH Pin No. Definition Pin No. Definition 3.3V 3.3V SPEC0 SPED0 CLK2+ CLK1+ CLK2- CLK1- www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 45: Lsw (Lvds Resolution Jumper)

    1024 x 600 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 46: Battery (Battery Cable Connector)

    2.2.16 BATTERY (Battery cable connector) Pin 1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 47: Jcom1 (Com1 Ri# Pin Ri#/5V/12V Select)

    JCOM11 Jumper Select Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) 5-6 Close: 12V (Power COM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 48 GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 49: Chapter 4 - Bios

    Chapter 4 Chapter 4 – BIOS www.gigaipc.com...

  • Page 50: The Main Menu

    • When the system is not stable as usual, select the Restore User Defaults item to set your system to its defaults. • The BIOS Setup menus described in this chapter are for reference only and may differ by BIOS version. www.gigaipc.com...
  • Page 51 » LAN1/2 MAC Address » Total Memory Displays the technical specifications for the installed memory. » TXE FW Version » System Date Set the date following the weekday-month-day- year format. » System Time Set the system time following the hour-minute- second format. www.gigaipc.com...

  • Page 52: Advanced Menu

    Advanced Menu The Advanced menu display submenu options for configuring the function of various hardware components. Select a submenu item, and then press Enter to access the related submenu screen. www.gigaipc.com...

  • Page 53: Cpu Configuration

    Enables or disables Intel® Virtualization Technology. Virtualization enhanced by Intel® Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple virtual systems. Options available: Enabled/Disabled. Default setting is Enable www.gigaipc.com...
  • Page 54 Enables or disables support for C-States. Options available: Enabled/Disabled. Default setting is Enable CPU P-States Enables or disables support for P-States. Options available: Enabled/Disabled. Default setting is Enable CFG lock Enable/Disable CFG lock. Options available: Enabled/Disabled. Default setting is Disabled www.gigaipc.com...

  • Page 55: Trusted Computing

    4.2.2 Trusted Computing » Security Device Support Select Enabled to activate TPM support feature. Options available: Enabled/Disabled. Default setting is Disabled. www.gigaipc.com...

  • Page 56: Sata Configuration

    Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. Hard drive information should be labeled on the outside device casing. Enter the appropriate option based on this information. www.gigaipc.com...

  • Page 57: Hardware Monitor

    Enable CPU/System Fan Speed Control function. Option available: Normal/Full Speed. Default setting is Normal. » System/CPU Temperature Displays current CPU temperature. » CPU/System Fan Speed (RPM) Displays current CPU and system fan speed. » VCORE/DDR1.2V/+12V/VCC/VCC3/VSB3V Displays a real-time record of the related system voltage. www.gigaipc.com...

  • Page 58: Super Io Configuration

    Press [Enter] for configuration of advanced items. Serial Port 2 Configuration Press [Enter] for configuration of advanced items. Serial Port 3 Configuration Press [Enter] for configuration of advanced items. Serial Port 4 Configuration Press [Enter] for configuration of advanced items. www.gigaipc.com...

  • Page 59: 4.2.4.1 Serial Port Configuration

    When enabled allows you to configure the serial port settings. When set to Disabled, displays no configuration for the serial port. Options available: Enabled/Disabled. Default setting is Enabled. » Device Settings Display the specified Serial Port base I/O address and IRQ. www.gigaipc.com...
  • Page 60 www.gigaipc.com...

  • Page 61: S5 Rtc Wake Settings

    Press <+> and <-> to define the wake up hour. » Wake up minute (Note) Press <+> and <-> to define the wake up minute. » Wake up second (Note) Press <+> and <-> to define the wake up second. www.gigaipc.com...

  • Page 62: Os Selection

    Options available: Enabled/Disabled. Default setting is Disabled. If the CSM is set to Disabled, the following five items will not be able to support Legacy mode. » LAN EFI driver Enable/Disable LAN EFI driver. Options available: Enabled/Disabled. Default setting is Disabled www.gigaipc.com...

  • Page 63: Nvme Configuration

    4.2.8 NVMe Configuration NVMe Configuration Displays information on your M.2 NVME PCIe SSD if installed. www.gigaipc.com...

  • Page 64: Chipset Menu

    Internal Graphics Device. Options available: 64M/128M/192M/256M/320M/384M/512M. Default setting is 64M. » Onboard Audio Enable/Disable onboard audio controller. Options available: Enabled/Disabled. Default setting is Enabled. » Onboard LAN1/2 Enable/Disable onboard LAN controller. Options available: Enabled/Disabled. Default setting is Enabled. www.gigaipc.com...
  • Page 65 Determines whether to enable XHCI Hand-off feature for an operating system without XHCI Hand-off support. (Default: Enabled) » WatchDog Timer Force system reboot if system gang up by memory detection fail » LVDS Support Enable/Disable LVDS. Options available: Enabled/Disabled. Default setting is Disable. www.gigaipc.com...

  • Page 66: Security Menu

    System Time, System Date, and Set User Password fields. » Administrator Password Press Enter to configure the Administrator password. » User Password Press Enter to configure the user password. » Secure Boot menu Press [Enter] for configuration of advanced items. www.gigaipc.com...
  • Page 67 This way, the system knows all the files being loaded before Windows 8 loads and gets to the login screen have not been tampered with. Options available: Enabled/Disabled. Default setting is Disabled. www.gigaipc.com...
  • Page 68 » Secure Boot Mode (Note) Define the Secure Boot Mode. Set this item to Custom to advanced items configuration. Option available: Standard/Custom. Default setting is Custom. » Key Management Press Enter to configure the advanced items. www.gigaipc.com...
  • Page 69 The Boot menu allows you to set the drive priority during system boot- up. BIOS setup will display an error message if the drive(s) specified is not bootable. » Boot Configuration » Boot Option Priorities » Boot Option #1/#2#3 Press Enter to configure the boot priority. www.gigaipc.com...
  • Page 70 Saves changes made and close the BIOS setup. Options available: Yes/No. » Discard Changes and Exit Discards changes made and close the BIOS setup. Options available: Yes/No. » Save Changes and Reset Saves changes made and reset the system. Options available: Yes/No. www.gigaipc.com...
  • Page 71 » Discard Changes and Reset Discards changes made and reset the system. Options available: Yes/No. » Save Changes Saves changes made in the BIOS setup. Options available: Yes/No. Press [Enter] to save all Secure Boot Variables. www.gigaipc.com...
