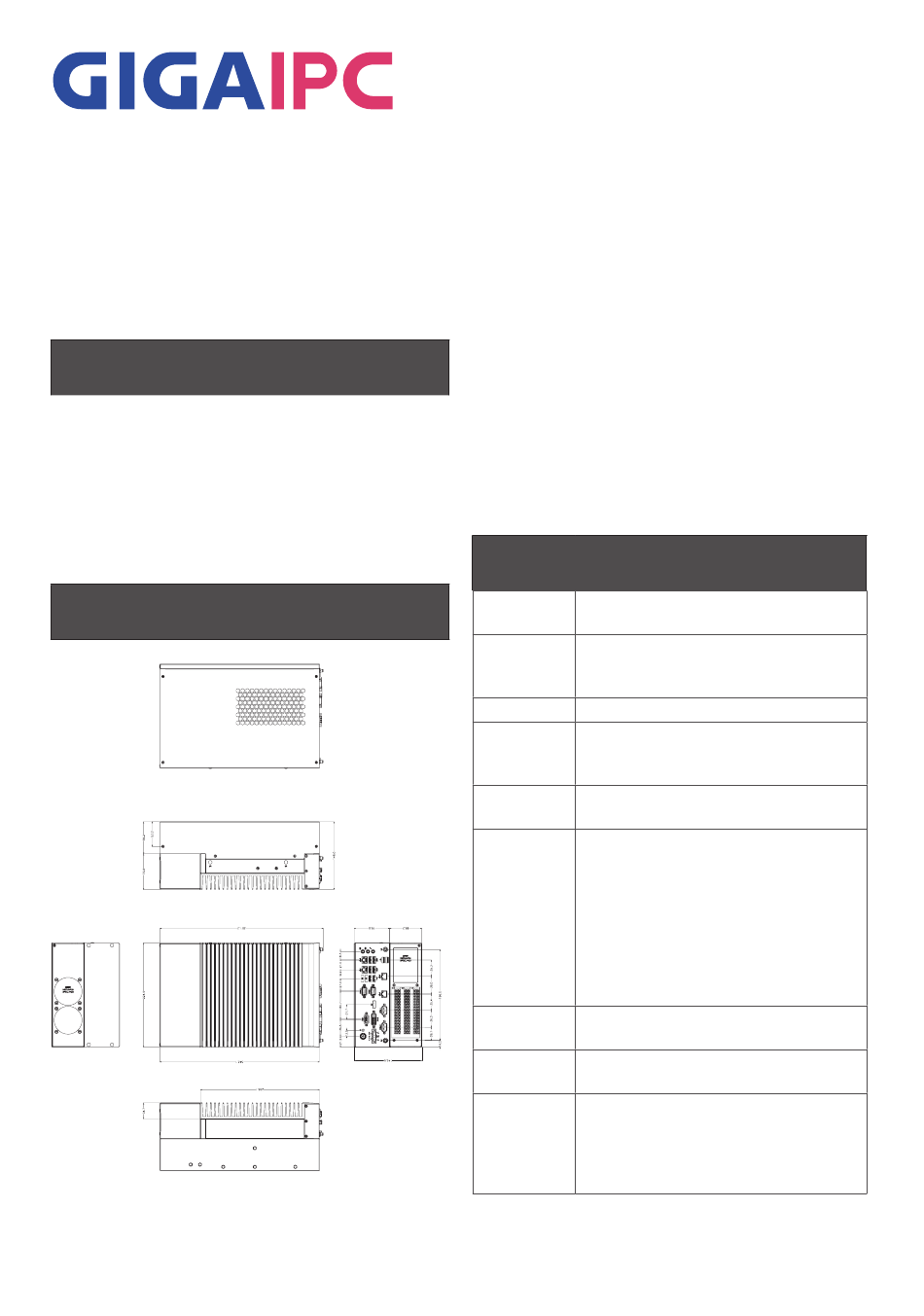

QBiX-JMB-CFLA310HG-A1
Industrial Falness System with Intel® H310 Chipset, Support for
Intel® 8th/9th Gen. Core™ i Processor and Discrete GFX support
Startup Manual
Packing List
Before you begin installing your card, please make
sure that the following items have been shipped:
1. Cable Power #20 350mm (25CRI-350902-H3R)
2. Screw #6-32x4L x 11 (25KS2-13004F-S0R)
3. Terminal Blocks Male Plug (25IO0-2ESDV0-D2R )
Dimension
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Caution: DANGER OF EXPLOSION IF
BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE
SAME OR EQUIVALENT TYPE RECOMMENDED
BY THE MANUFACTURER, DISCARD
USED BATTERIES
ACCORDING TO THE MANUFACTURER'S
INSTRUCTIONS.
Specifications
Dimension
System Size : 224W x 343D x 146H(mm) -
Discrete GFX max 250W support.(optional)
CPU
Support for 8/9th Generation Intel® Core™
i7/i5/i3 IOTG processors in the LGA1151
package, TDP under 65W
Chipset
Intel® H310 Express Chipset
Memory
2 x DDR4 SO-DIMM sockets supporting up
to 32 GB,
Dual channel DDR4 2666/2400 MHz
Ethernet
1 x GbE LAN ports (Intel® i219V)
3 x GbE LAN ports (Intel® i211AT)
Graphic
Integrated Graphics Processor - Intel® HD
Support
Graphics support:
1 x DVI-D port, supporting a maximum
resolution of 1920 x 1080 @60 Hz
1 x D-Sub port, supporting a maximum
resolution of 1920 x 1200 @60 Hz
1 x DP port, supporting a maximum
resolution of 4096 x 2160 @30 Hz
2 independent displays output
Audio
Realtek ALC269 with 2W amplifer
High Definition Audio
Storage
3 x SATA 6 Gb/s port (Support 2.5" HDD/
SSD)
Expansion
1 x M.2 Slot 2230 (E-Key For WiFi + BT)
Slots
1 x M.2 Slot 2280 (M-Key support SATA)
1 x Mini-PCIe slot (PCIeX1 + USB2.0) with
SIM Slot
1 x PCIe slot - Discrete riser card support
1
www.gigaipc.com
Advertisement
Related Manuals for GIGAIPC QBiX-JMB-CFLA310HG-A1
Summary of Contents for GIGAIPC QBiX-JMB-CFLA310HG-A1
- Page 1 1 x M.2 Slot 2280 (M-Key support SATA) 1 x Mini-PCIe slot (PCIeX1 + USB2.0) with SIM Slot 1 x PCIe slot - Discrete riser card support www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 2 Screw #6-32x4L x 11 (25KS2-13004F-S0R) Terminal Blocks Male Plug (25IO0-2ESDV0- D2R ) Oeder System: 9BQJH310AMR-SI & Information 9BQJH310ASR-SI Built in: CPU i3-9100E DDR4 8GB www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 3 3 x SATA 6 Gb/s Connector COM3 COM4 TMP Connector M2E Slot M2M Slot PCIE X16 Slot PCIE X8 Slot SIM Card Slot MINI-PCIe Slot Supports SIM www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 4 PCIE X4 Slot PCIEX8 PCIE X8 Slot PCIEX16 PCIE X16 Slot DC_OUT SYS_Fan 2 SYS_Fan 1 PCIE X4 Slot PCIE X16 Slot PCIE X8 Slot www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 5 System Dimensions www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 6 3. After the screws are removed, open the iron case as shown by the arrow (arrow 1 in Figure 9), and then lift it up (arrow 2 in Figure 10) to remove the case. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 7 3. After the screws are removed, open the iron case as shown by the arrow (arrow 1 in Figure 9), and then lift it up (arrow 2 in Figure 10) to remove the case. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 8 2. Place the upper edge of the iron shell against the upper edge of the fuselage iron sheet, align the screw holes, and lock the screws (as shown in Figure 5 and Figure 6) to complete the installation. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 9 2. Connect the power cord in the extension card to the power connector on the graphics card (Figure 3~Figure 6) 3. Reinstall the case back to the fuselage and lock the screws. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 10 Note : Thermal pad and memory thermal cover must be fully mated and compacted. 4. Install 4 screws and memory thermal cover. 5. Replace the bottom cover and secure with screws. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 11 4. Affix thermal pad on M2E card and assemble. 5. Install 4 screws and M2E thermal cover. 6. Replace the bottom cover and secure with screws. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 12 3. Secure storage with 4 x screws. 4. Assemble SATA cable/power cable and replace storage tray securely with 4 x screws. 5. Replace the bottom cover and secure with screws. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 13 5. Install the 2 screws to securely replace the aluminum heat sink and heat sink paste. 6. Install 4 screws to firmly install the hard disk storage aluminum sheet 7. Replace the bottom cover and secure with screws. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 14 3. Assemble the Mini-PCIe expansion Card (Mini-PCIeX1 + USB2.0) or 3G/4G SIM Card in SIM Slot. 4. Install 4 screws to firmly install the hard disk storage aluminum sheet 5. Replace the bottom cover and secure with screws. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 15 17. RESTRICTED ACCESS AREA: The equipment should only be installed in a Restricted Access Area. 18. DISCLAIMER: This set of instructions is given according to IEC 704-1. GIGAIPC disclaims all responsibility for the accuracy of any statements contained here in.
