GIGAIPC QBiX-WP-APLA3940H-A1 Quick Start Manual

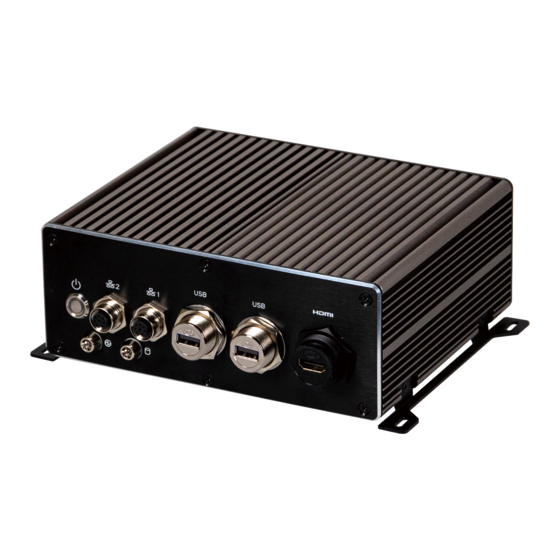

Waterproof industrial embedded system
Hide thumbs Also See for QBiX-WP-APLA3940H-A1:
Table of Contents

Advertisement

Quick Links

Download this manual

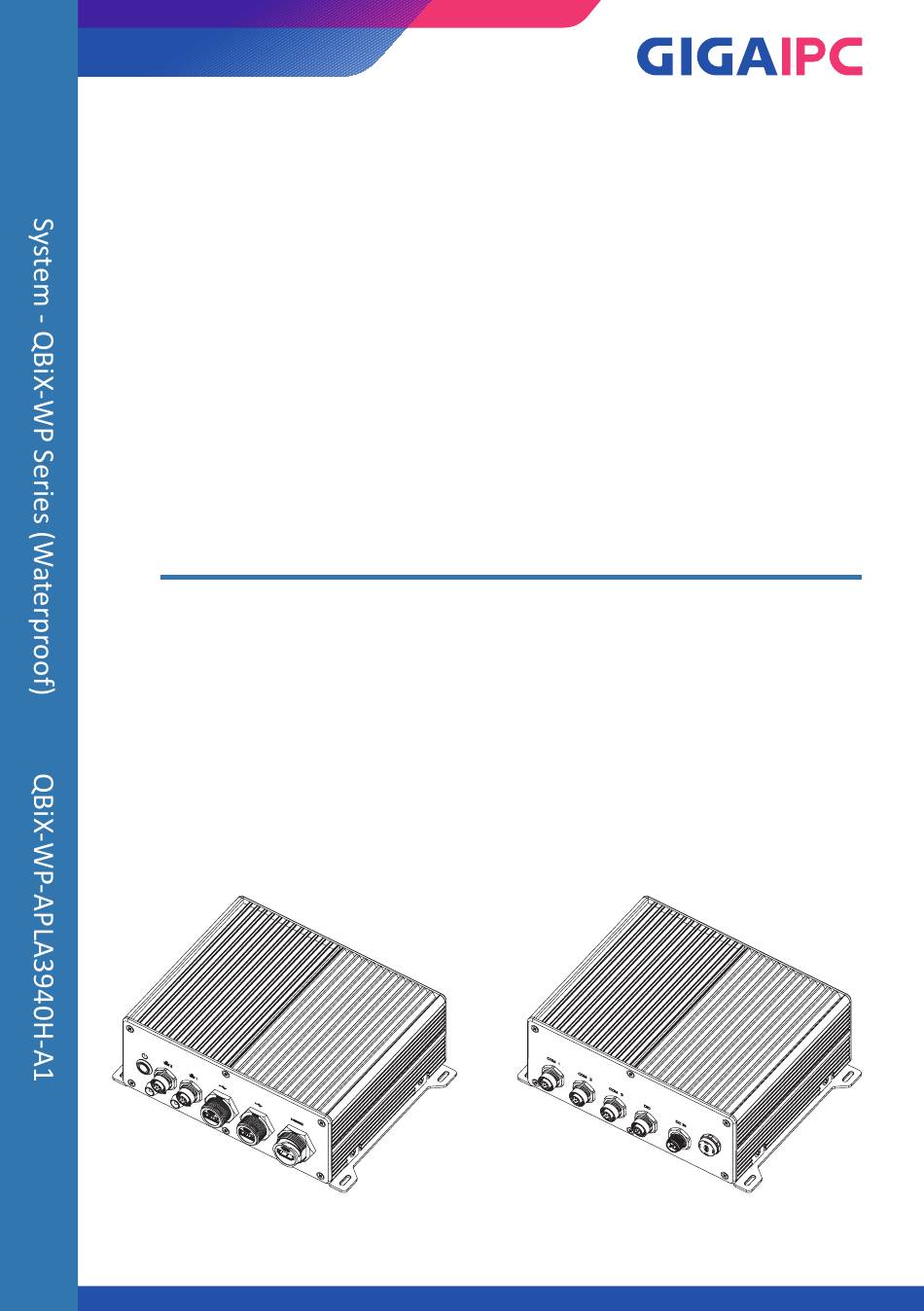

QBiX-WP-APLA3940H-A1
(QW-3940A-SI)

QBiX-WP Waterproof Industrial Embedded System

Quick Start Guide

1
www.gigaipc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QBiX-WP-APLA3940H-A1 and is the answer not in the manual?

Questions and answers

Related Manuals for GIGAIPC QBiX-WP-APLA3940H-A1

Summary of Contents for GIGAIPC QBiX-WP-APLA3940H-A1

  • Page 1: Qbix-Wp Waterproof Industrial Embedded System

    QBiX-WP-APLA3940H-A1 (QW-3940A-SI) QBiX-WP Waterproof Industrial Embedded System Quick Start Guide www.gigaipc.com...

  • Page 2: Copyright Notice

    While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein.

  • Page 3: Acknowledgement

    Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com...

  • Page 4: Packing List

    Before setting up your product, please make sure the following items have been shipped: Item Quantity Cable Kit Wall mount Exsiccator (10g) If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com...

  • Page 5: About This Document

    (if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com...

  • Page 6: Safety Precautions

    Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com...
  • Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...

  • Page 8: Fcc Statement

    Skilled person have to pay special attention or take special protection. Only authorized by well trained professional person can access the restrict access location. (2) External metal parts are hot!! Before touching it, special attention or protection is necessary www.gigaipc.com...

  • Page 9: Table Of Contents

    FCC Statement ................8 High Temperature Warning ............8 Chapter 1 - Product Specifications Specifications ............... 13 Chapter 2 – QBiX-WP-APLA3940H-A1 (QW-3940A-SI) Waterproof Industrial Embedded System Kit Dimension ..............16 Getting Familiar with Your Unit........17 COM 1 Connector for RS-232/422/485 & RI/5V/12V ... 19 COM 2/3 Connector for RS-232 ........
  • Page 10 3.2.12 BATTERY ............... 40 3.2.13 SATAPW (SATA 6Gb/s power connector) .....41 3.2.14 SATAIII (SATA 6GB/S Connector) ......... 42 3.2.15 FUSB20_1, FUSB2_2 (USB 2.0 header) ......43 3.2.16 GPIO_CNT (General Purpose input/output header) ... 44 3.2.17 SYS_PANEL (Front panel header) ........45 www.gigaipc.com...

  • Page 11: Chapter 1 - Product Specifications

    Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com...
  • Page 12 www.gigaipc.com...

  • Page 13: Specifications

    Specifications System QBiX-WP-APLA3940H-A1 (QW-3940A-SI) Dimension System Size : 188W x 155D x 72H (mm) Intel® Atom® x5-E3940 Processor 2M Cache, up to 1.80 GHz TDP 9.5W Chipset 2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB Memory Dual channel memory architecture...
  • Page 14 System QBiX-WP-APLA3940H-A1 (QW-3940A-SI) Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr Vibration During / Per Axis, With SSD/M.2 2280 Operation Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/ min, 1 hr / Per Axis...

  • Page 15: Chapter 2 - Qbix-Wp-Apla3940H-A1 (Qw-3940A-Si) Waterproof Industrial Embedded System Kit

    Chapter 2 Chapter 2 – QBiX-WP-APLA3940H-A1 (QW-3940A-SI) Waterproof Industrial Embedded System Kit www.gigaipc.com...

  • Page 16: Dimension

    Dimension www.gigaipc.com...

  • Page 17: Getting Familiar With Your Unit

    2 x (IP67) USB 2.0 Connector 1 x (M8) HDD LED 1 x (M8) Power LED [Rear Side] 1 x (M12) COM1 (RS-232/422/485 & RI/5V/12V) 2 x (M12) COM2, COM3 (RS-232) 1 x (M12) DC IN 1 x (M12) GPIO (8 bits) www.gigaipc.com...
  • Page 18 [Left Side] [Right Side] [Bottom Side] www.gigaipc.com...

  • Page 19: Com 1 Connector For Rs-232/422/485 & Ri/5V/12V

    Pin No. Pin Define Pin Asignments Shield — — Front View DIO Connector Pin No. Pin Define Pin No. Pin Define GPO1 GPO4 GPI1 GPI4 GPO2 SMB_CLK GPO2 SMB_DATA Pin Asignments GPO3 5V/ 1A Front View GPI3 — — www.gigaipc.com...

  • Page 20: Dc-In Connector

    LAN 1/2 Connectors Pin No. Pin Define Pin No. Pin Define TX + No Singal TX - No Singal No Singal No Singal Pin Asignments Front View USB 1/2 Connectors for USB 2.0 Conn.1 & Conn.2 Pin Asignments Front View www.gigaipc.com...

  • Page 21: Hdmi 1.4 Connector

    HDMI 1.4 Connector Pin No. Pin Define Pin No. Pin Define Clock+ D2 / Shield Clock / Shield Clock- D1 / Shield Utitity Pin Asignments Front View D0 / Shield 5V+ Power Hot Plug Datect — — www.gigaipc.com...

  • Page 22: Support

    Support ● For a list of tested memory, M.2, 2.5’’ SSD, wireless adapters and OS supported, go to: http://www.gigaipc.com ● To download the latest drivers and BIOS updates, go to: http://www. gigaipc.com ● For product support, go to: http://www.gigaipc.com www.gigaipc.com...

  • Page 23: Safety And Regulatory Information

    At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. www.gigaipc.com...
  • Page 24 www.gigaipc.com...

  • Page 25: Chapter 3 - Motherboard Hardware Information

    Chapter 3 Chapter 3 – Motherboard Hardware Information www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 26: Jumpers And Connectors

    Jumpers and Connectors www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 27 General Purpose input/output header 17 SYS_PANEL Front panel header 18 FUSB2_2 USB 2.0 header 19 MPCIE Mini-PCIe slot 20 M2M M.2 slot 21 SIM_CARD1 3G/4G Sim Slot www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 28 24 LAN1, LAN2 2 x RJ45 Ports 2 x USB3.0 Ports 25 FUSB30 26 HDMI 1 x HDMI Port 27 VGA 1 x VGA Port www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 29: Fan (Fan Connector)

    FAN (FAN connector) Pin1 CPU/System FAN Connector PN Vendor A1250WV-S-04PC JOINT-TECH 1 2 3 4 Pin No. Definition Detect Speed Control Connector PN Vendor 85205-0470N ACES www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 30: Dc In (Dc In 1 X 4-Pin Power Connector)

    3.2.2 DC IN (DC IN 1 x 4-pin power connector) Pin1 DC in Connector Connector PN Vendor 753-81-04TW00 PINREX Pin No. Definition DCIN DCIN www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 31: Com1, Com2, Com3, Com4 (Serial Port Header)

    COM1, COM2, COM3, COM4 (Serial port header) Pin1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition DTRD No Connect RI/5V/12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 32: Spk_Out (Speaker Out Connector)

    Speaker out connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 33: Jcom11 (Com11 Ri# Pin Ri#/5V/12V Select)

    JCOM11 Jumper Select Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) 5-6 Close: 12V (Power COM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 34: Jrs11-Jrs14 (Rs11-14 Select Jumper For Serial Port)

    RS-422 Full Duplex 1T/1R RS-422 with termination resistor and bias resistor. 1T/1R RS-485 with termination resistor and bias resistor. TX ENABLE Low RS-485 Half Duplex Active www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 35: At_Cn (At/Atx Power Mode Select Jumper)

    1-2 Close : AT mode. 220-96-03GB01 PINREX 2-3 Close : ATX mode. PH03N2-7BAN000 HORNGTONG (Default setting) Pin No. Definition AT MODE Detect ATX MODE www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 36: Lsw (Lvds Resolution Jumper)

    1280 x 960 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 37: Lvds (Lvds Connector)

    Note: *The LVDS output connector of the unit is only intended to be connected to CLK2+ CLK1+ an UL/IEC/EN approval equipment with CLK2- fire enclosure. CLK1- www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 38: Bkl_Cn (Back Light Brightness Control Connector)

    3.2.10 BKL_CN (Back light brightness control connector) Pin1 Back light brightness control connector Connector PN Vendor 721-81-05TW00 PINREX A2001WV-05P146 JOINT-TECH Pin No. Definition Back Light Enable www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 39: 3.2.11 Buzzer

    3.2.11 BUZZER Pin1 Buzzer Connector PN Vendor 712-71-02TW01 PINREX A1250WV-02P JOINT-TECH Pin No. Definition -SPKR +VS5 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 40: 3.2.12 Battery

    3.2.12 BATTERY Pin1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V RTC www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 41: Satapw (Sata 6Gb/S Power Connector)

    3.2.13 SATAPW (SATA 6Gb/s power connector) Pin1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition +12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 42: Sataiii (Sata 6Gb/S Connector)

    3.2.14 SATAIII (SATA 6GB/S Connector) Pin1 SATA 6GB/S Connector SATAIII Connector PN Vendor WAT3M-07A1G3BU4W WINWIN ABA-SAT-054-S15 LOTES Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 43: Fusb20_1, Fusb2_2 (Usb 2.0 Header)

    3.2.15 FUSB20_1, FUSB2_2 (USB 2.0 header) 15 18 Pin1 Pin1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 44: Gpio_Cnt (General Purpose Input/Output Header)

    Pin1 GPIO Connector Connector PN Vendor 725-81-12TW00 PINREX A2004WV-2X06P46 JOINT-TECH Pin No. Definition GPO1 GPI1 GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 SMB_CLK SMB_DATA www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 45: Sys_Panel (Front Panel Header)

    Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
