Moniteq CRYPTO-LOCK CC-8521AN Instruction Manual page 11

Low Battery W arnings -The
"LOW BATT" indicator will
light and a beep will sound
every 15 seconds when the
battery charge level is low.

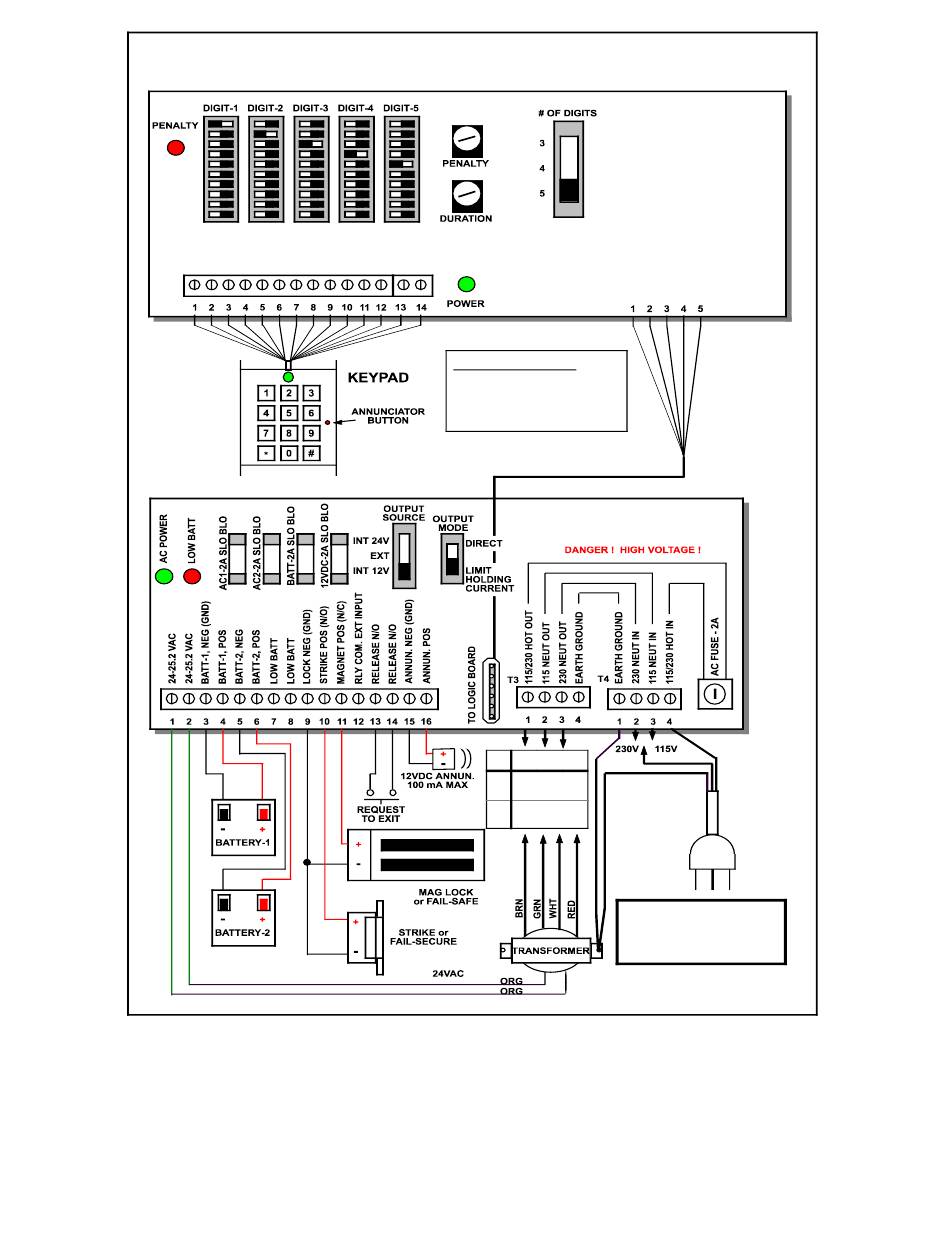

Figure 3, Crypto Lock Wiring Diagram
LOGIC BOARD
POWER SUPPLY BOARD
T3 1 2 3
1 15 BR N GR N N /C
Va c WH T R ED
2 30 BR N GR N R ED
Va c WH T
M O N IT E Q , Inc.
Tel: 1-800-989-9891
Model CC-8521AN
D i g i t a l A c c e s s C o n t r o l w i t h
H e a v y Duty Lock Driver
11
(P C B " G 9844, 94V-01 ")
(P C B R ev C )
