Storing The Mower - Ego Power+ LM2000 Operating Manual

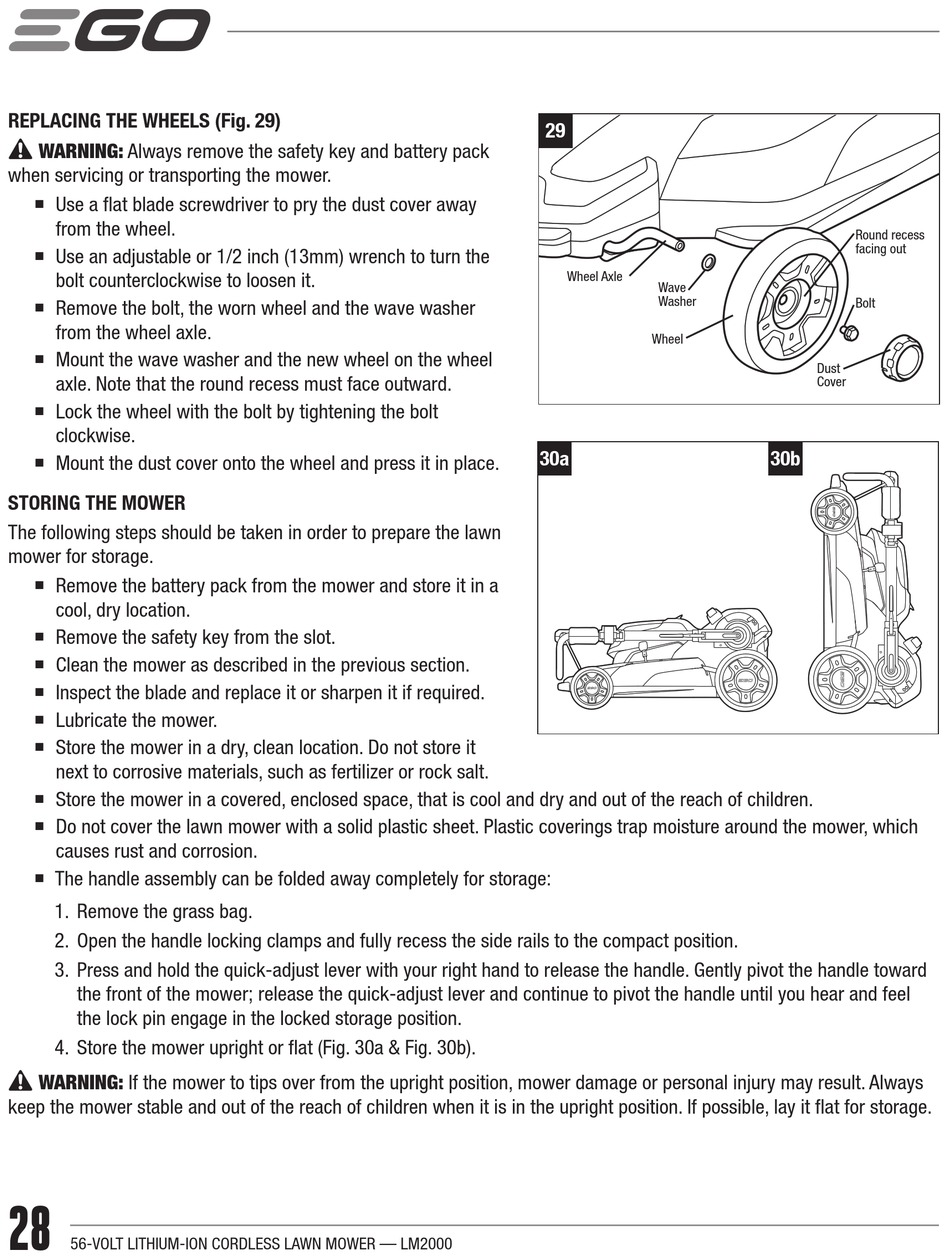

repLacING THe wHeeLs (Fig. 29)
WARNING: always remove the safety key and battery pack
when servicing or transporting the mower.
 use a flat blade screwdriver to pry the dust cover away
from the wheel.
 use an adjustable or 1/2 inch (13mm) wrench to turn the
bolt counterclockwise to loosen it.
 remove the bolt, the worn wheel and the wave washer
from the wheel axle.
 mount the wave washer and the new wheel on the wheel
axle. note that the round recess must face outward.
 lock the wheel with the bolt by tightening the bolt
clockwise.
 mount the dust cover onto the wheel and press it in place.

sTOrING THe MOwer

the following steps should be taken in order to prepare the lawn
mower for storage.
 remove the battery pack from the mower and store it in a
cool, dry location.
 remove the safety key from the slot.
 Clean the mower as described in the previous section.
 inspect the blade and replace it or sharpen it if required.
 lubricate the mower.
 Store the mower in a dry, clean location. Do not store it
next to corrosive materials, such as fertilizer or rock salt.
 Store the mower in a covered, enclosed space, that is cool and dry and out of the reach of children.
 Do not cover the lawn mower with a solid plastic sheet. plastic coverings trap moisture around the mower, which
causes rust and corrosion.
 the handle assembly can be folded away completely for storage:
1. remove the grass bag.
2. Open the handle locking clamps and fully recess the side rails to the compact position.
3. press and hold the quick-adjust lever with your right hand to release the handle. gently pivot the handle toward
the front of the mower; release the quick-adjust lever and continue to pivot the handle until you hear and feel
the lock pin engage in the locked storage position.
4. Store the mower upright or flat (Fig. 30a & Fig. 30b).
WARNING: if the mower to tips over from the upright position, mower damage or personal injury may result. always
keep the mower stable and out of the reach of children when it is in the upright position. if possible, lay it flat for storage.
28
56-VOlt litHium-iOn COrDleSS laWn mOWer — lm2000
29
Wheel axle
Wave
Washer
Wheel
30a
round recess
facing out
Bolt
Dust
Cover
30b
