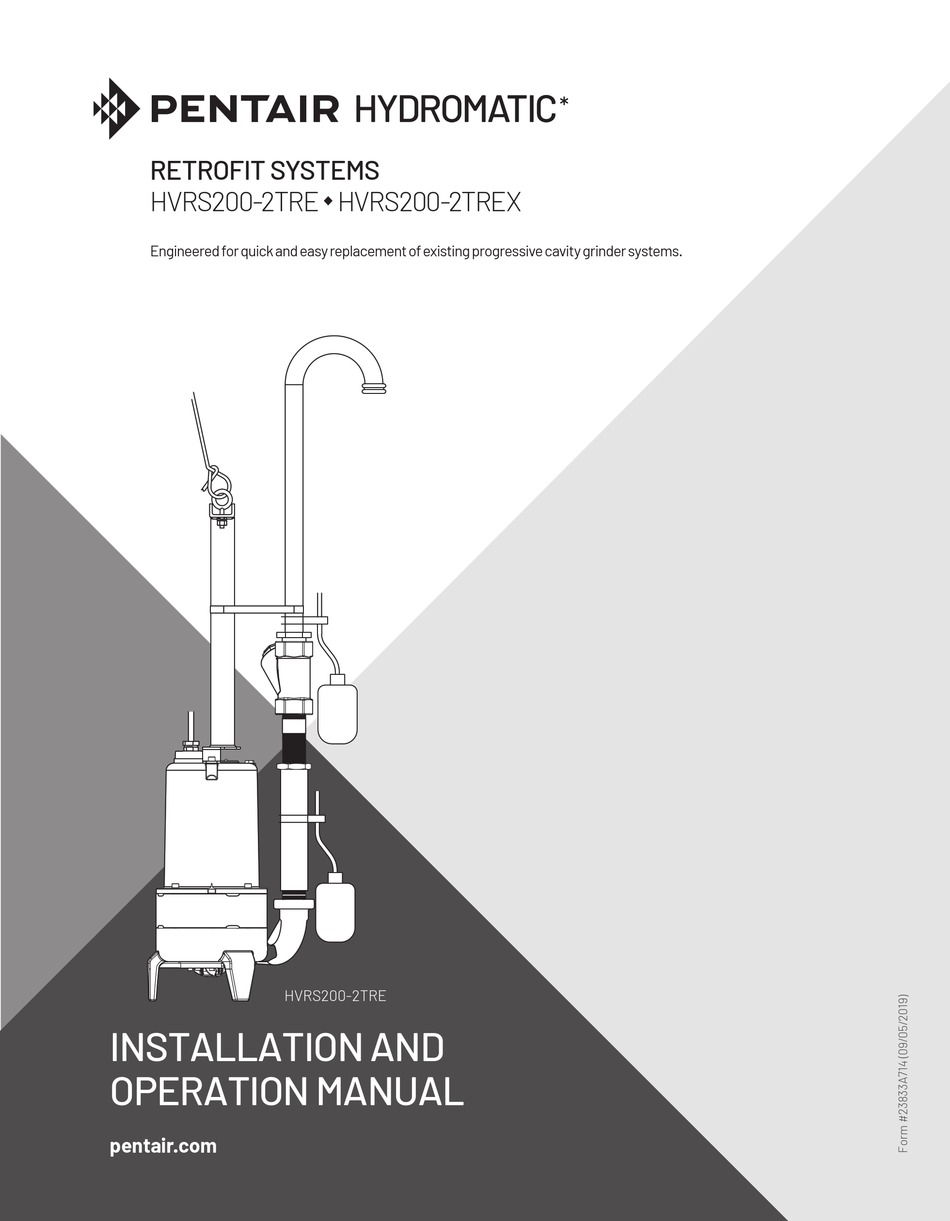

- Page 1 RETROFIT SYSTEMS HVRS200-2TRE HVRS200-2TREX Engineered for quick and easy replacement of existing progressive cavity grinder systems. HVRS200-2TRE INSTALLATION AND OPERATION MANUAL pentair.com...
- Page 2 TABLE OF CONTENTS: SECTION ........................................PAGE General Information ....................................3 Grinder Installation Instructions ................................4 Retrofit System Replacement Parts ................................. 5 Warranty ........................................6...
-
Page 3: General Information
GENERAL SAFETY and installation manual HYD1046. Biohazard Risk NOTICE Pentair Hydromatic* HVRS200-2TRE and HVRS200-2TREX Once wastewater source has been connected to system, are retrofit systems designed for replacement of pump and in-basin biohazard risk exists. Installer(s) and/or service personnel controls only. System uses existing ball valve, latch and existing must use proper personal protective equipment and follow underground wiring and alarm panel. - Page 4 Make sure there is sufficient amount of valve. If gooseneck is not completely forced into the seal power/control/alarm cord to be able to splice into Pentair with existing pipe socket as described above, ball valve Hydromatic* power/control/alarm cords at the new junction handle/latch will not close completely over gooseneck box.
- Page 5 RETROFIT SYSTEM REPLACEMENT PARTS Item Part No. Description Quanity 528350017 HVRS200M2-2 26517C015 ADAPTER - T-HANDLE 21929A012 BOLT - 3/8" SST 19109A018 NUT - 3/8" SST 05454A015 WASHER - LOCK 3/8" SST 001780081 SCREW - CAP 5/16-18 SST 05008A052 NIPPLE - 1-1/4" SST 28232B011 DISCHARGE PIPE - PUMP SIDE ADJUSTABLE 28232B003...
- Page 6 1101 Myers Parkway | Ashland, OH 44805 | Ph: 855-274-8947 | Orders Fax: 419-281-4087 | pentair.com/hydromatic *For a detailed list of where Pentair trademarks are registered, please visit www.pentair.com/en/registrations.html. Pentair trademarks and logos are owned by Pentair PLC. or its affiliates. Third party registered and unregistered trademarks and logos are the property of their respective owners.
