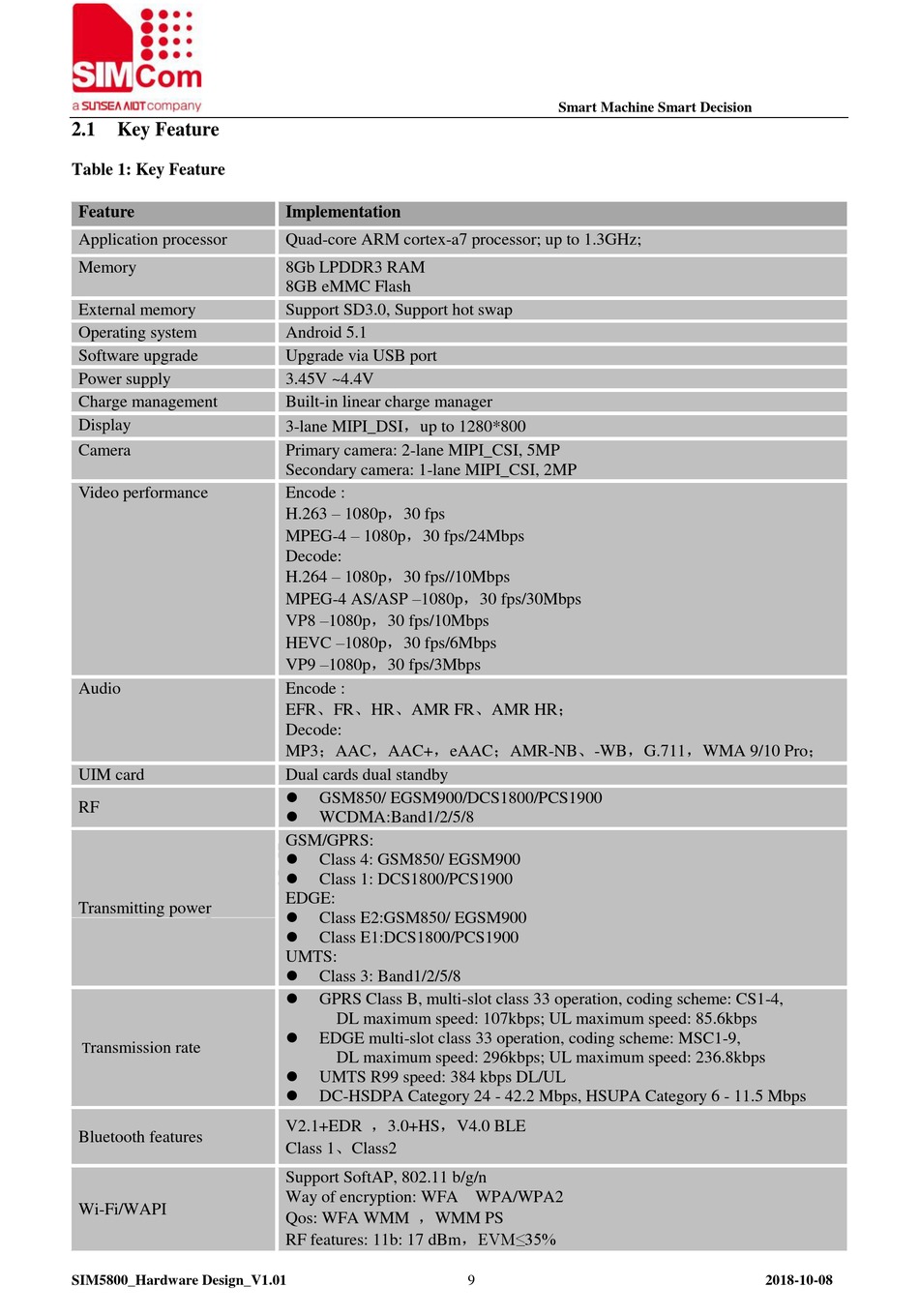

Key Feature - Sunsea AIoT SIMCom SIM5800 Hardware Design

2.1

Key Feature

Table 1: Key Feature
Feature
Application processor
Memory
External memory
Operating system
Software upgrade
Power supply
Charge management
Display
Camera
Video performance
Audio
UIM card
RF
Transmitting power
ransmission rate
T
Bluetooth features
Wi-Fi/WAPI
SIM5800_Hardware Design_V1.01
Implementation
Quad-core ARM cortex-a7 processor; up to 1.3GHz;
8Gb LPDDR3 RAM
8GB eMMC Flash
Support SD3.0, Support hot swap
Android 5.1
Upgrade via USB port
3.45V ~4.4V
Built-in linear charge manager
3-lane MIPI_DSI，up to 1280*800
Primary camera: 2-lane MIPI_CSI, 5MP
Secondary camera: 1-lane MIPI_CSI, 2MP
Encode :
H.263 – 1080p，30 fps
MPEG-4 – 1080p，30 fps/24Mbps
Decode:
H.264 – 1080p，30 fps//10Mbps
MPEG-4 AS/ASP –1080p，30 fps/30Mbps
VP8 –1080p，30 fps/10Mbps
HEVC –1080p，30 fps/6Mbps
VP9 –1080p，30 fps/3Mbps
Encode :
EFR、FR、HR、AMR FR、AMR HR；
Decode:
MP3；AAC，AAC+，eAAC；AMR-NB、-WB，G.711，WMA 9/10 Pro；
Dual cards dual standby

GSM850/ EGSM900/DCS1800/PCS1900

WCDMA:Band1/2/5/8
GSM/GPRS:

Class 4: GSM850/ EGSM900

Class 1: DCS1800/PCS1900
EDGE:

Class E2:GSM850/ EGSM900

Class E1:DCS1800/PCS1900
UMTS:

Class 3: Band1/2/5/8

GPRS Class B, multi-slot class 33 operation, coding scheme: CS1-4,
DL maximum speed: 107kbps; UL maximum speed: 85.6kbps

EDGE multi-slot class 33 operation, coding scheme: MSC1-9,
DL maximum speed: 296kbps; UL maximum speed: 236.8kbps

UMTS R99 speed: 384 kbps DL/UL

DC-HSDPA Category 24 - 42.2 Mbps, HSUPA Category 6 - 11.5 Mbps
V2.1+EDR ，3.0+HS，V4.0 BLE
Class 1、Class2
Support SoftAP, 802.11 b/g/n
Way of encryption: WFA WPA/WPA2
Qos: WFA WMM ，WMM PS
RF features: 11b: 17 dBm，EVM≤35%
