Table 20: Keypad interface
Pin Name
Pin
USB_BOOT
46
GPIO69
90
GPIO65
96
Recommended keypad circuit is as the following:

4.19 Antenna Interface

SIM5800 provides three antenna interfaces including MAIN antenna, GNSS antenna, and WiFi/BT antenna. To
ensure good RF performance, users should meet the following requirements:
Keep the RF traces at 50Ω.
Maintain a complete and continuous reference ground plane from antenna pin to the RF connector.
The RF traces should be away from any other noisy traces.
Keep the RF traces as short as possible.

4.19.1 MAIN Antenna reference circuit

The recommended circuit is shown as
ANT_MAIN
Module
SIM5800_Hardware Design_V1.01
Smart Machine Smart Decision
I/O
Description
I
KPCOL0
O
KPROW0
O
KPROW1
46
KPCOL0
Module
90
KPROW0
96
KPROW1

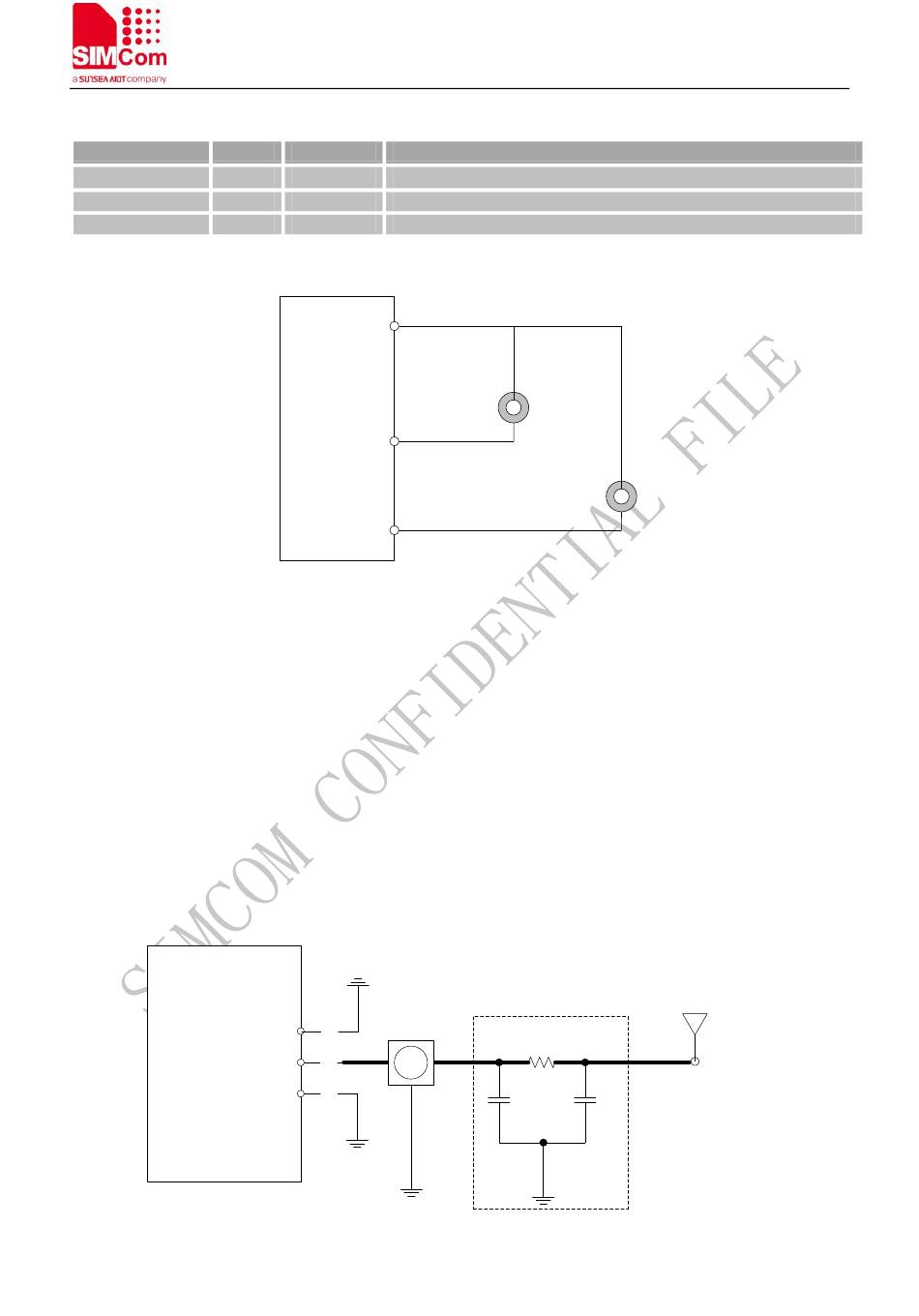

Figure 35: Keypad reference circuit
:
Figure 36
RF connector
(optional)
86
GND
87
GND
88
Matching circuit
R1
C1
C2
42
MAIN ANT
