Control Box Op Eration - Promatic Hunter Wobble Set Up And Operating Instructions Manual

Promatic, Inc.
Arms and disarms the traps and controls their vertical and hori-
ALWAYS DISARM MACHINES AND DISCONNECT BATTERY
BEFORE MAKING ADJUSTMENTS.
Position your body and all body parts behind the unit. Never
approach from the front, stand in front or to the sides of the

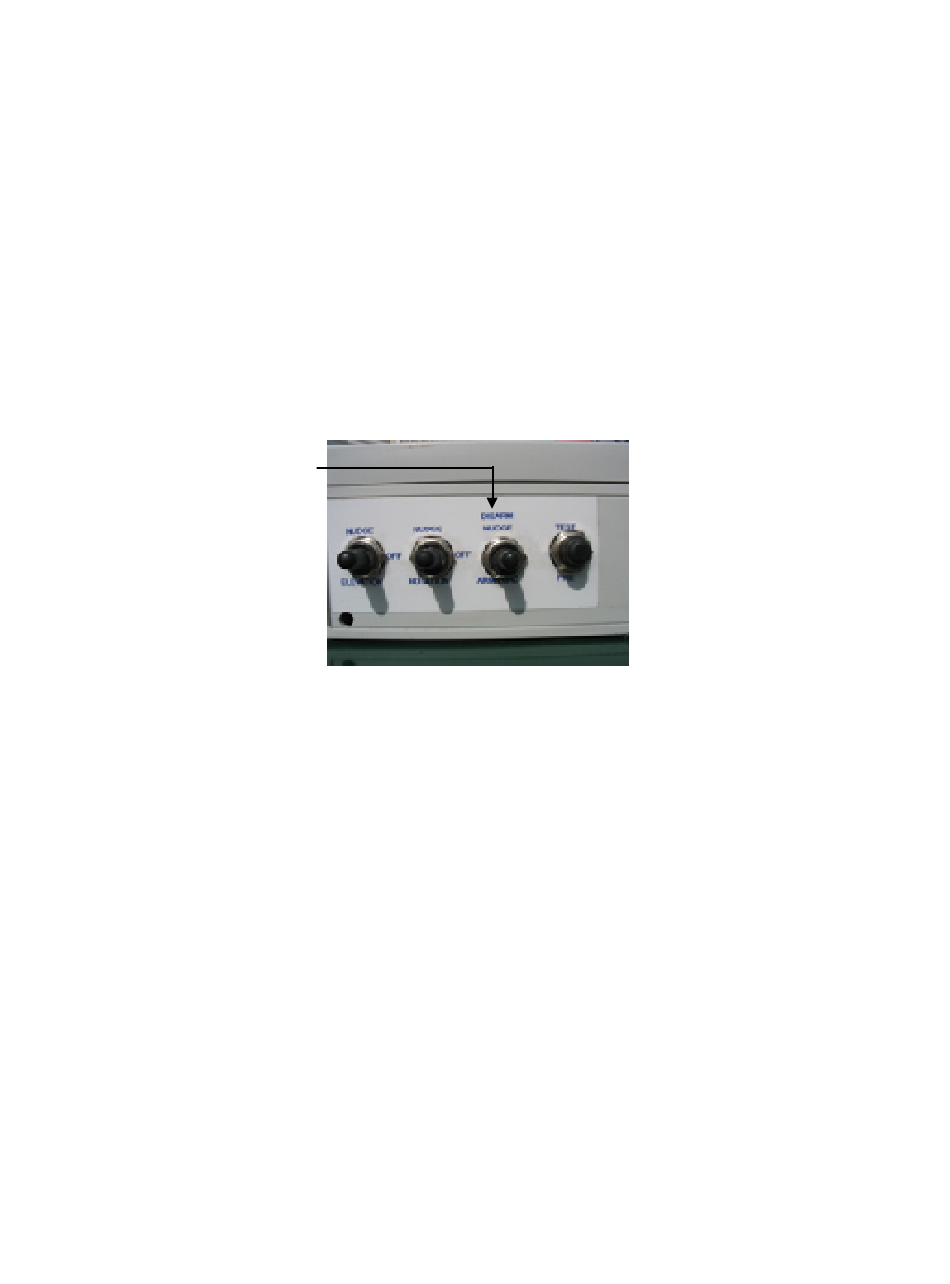

Arming Toggle
Although not marked
with a label, the center
position of the Disarm
Nudge -Arm/Load toggle
is the OFF position.
In the Arm/Load (down) position, a target loads onto the throw-
•
ing plate and the arm is cocked, ready for release.
Use the Off and Disarm/Nudge positions to DISARM the trap.
•
IMPORTANT: TO DISARM THE TRAP:
Off (center) position then on up to the Disarm Nudge (up) position.
Hold the toggle until the target is thrown, then release it.
After the target is thrown the machine is disarmed (throwing arm is
pointing in the 8:00 clock position). The toggle returns to the Off
(center) position after disarming the trap.
TO FULLY DISARM TH E TRAP, YOU SHOULD ALSO SET THE SWITCHES
ON THE BREAKER BOX TO OFF (THE RED ON THE SWITCH IS VISIBLE).
888.767.2529

CONTROL BOX OP ERATION

zontal movements.
unit.
ARMING TOGGLE
Controls the Throwing Arm
Push the Arming Toggle to the
Page 3
