Operating Instructions
Wobble units - Super Hawk
WARNING
Clay target launchers can be
dangerous and must be treated
with great care at all times to
avoid accidents.
Never place any bodily part into
the path of any mechanical piece
whilst the machine is in motion or
likely to be so.
You must treat a clay target launcher with the same caution that you
would treat a loaded gun. Assume at all times that a clay target launcher is
armed and loaded and treat it accordingly
This document must be read in full before attempting to operate the machine
Advertisement
Table of Contents
Related Manuals for Promatic Super Hawk
Summary of Contents for Promatic Super Hawk
-
Page 1: Operating Instructions

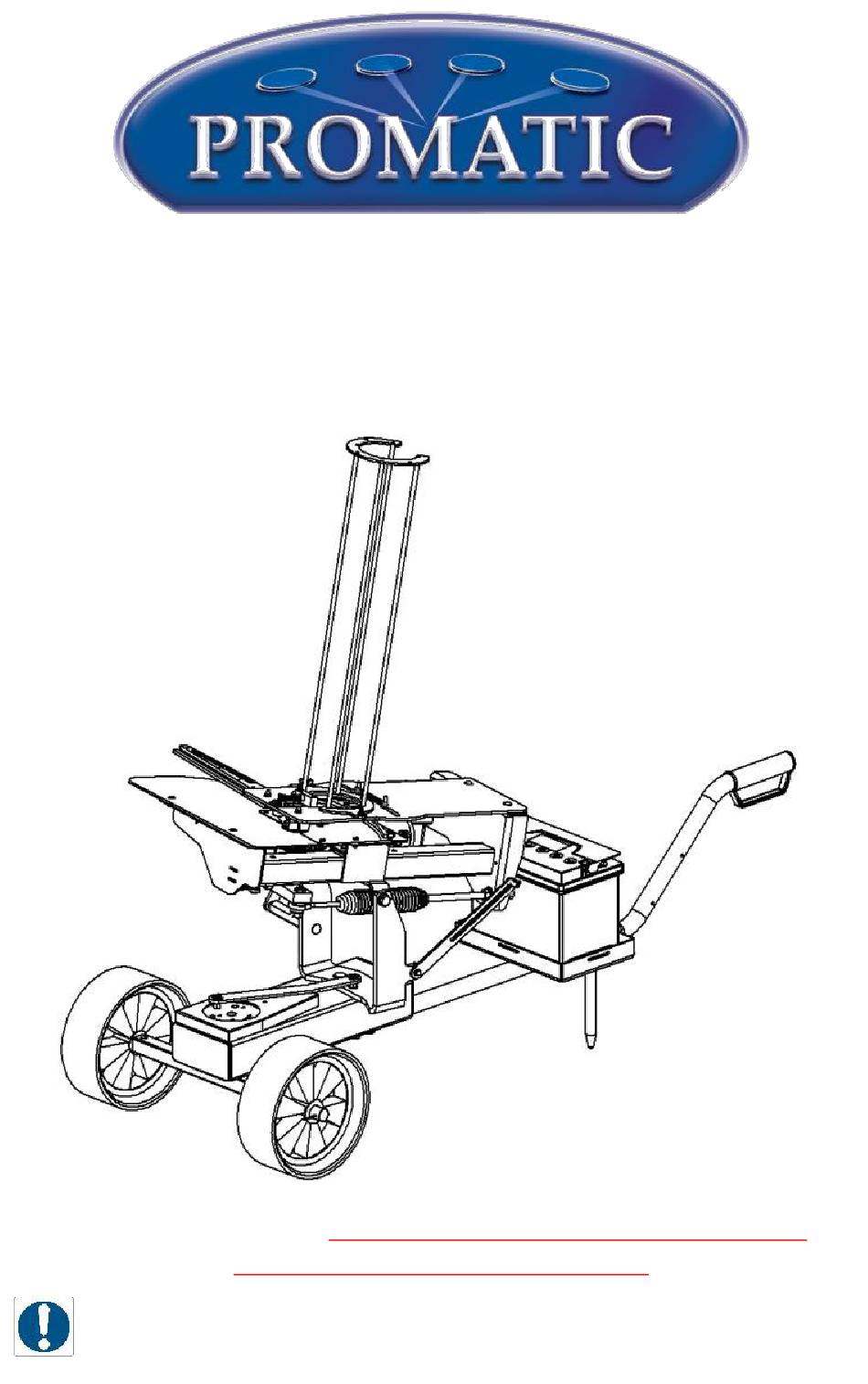

Operating Instructions Wobble units - Super Hawk WARNING Clay target launchers can be dangerous and must be treated with great care at all times to avoid accidents. Never place any bodily part into the path of any mechanical piece whilst the machine is in motion or likely to be so. - Page 2 12v DC Power Source: This product is designed to be powered from a 12v DC battery, it SHOULD NOT BE DIRECTLY CONNECTED TO HOUSEHOLD AC POWER Battery: Where a trap is connected to any other suitable power source i.e. a Transformer - the relevant sections of instructions should still be observed, i.e.
- Page 3 Fit Trap mount & connect linkage to rotation wheel: (All versions) Insert the trap mount’s lower pin through the bearing in the rotation box as shown below, secure with the circlip provided. Fit a threaded spigot to the trap mount, then fit a lightly greased washer, attach the short end of the linkage as shown below and secure with a spring clip which simply slides into the fine groove, snapping in place over the end of the shaft.
- Page 4 Assemble the Elevation box and bracket (Where fitted) Insert the short M12 cup square bolt into the mounting hole in the side of the swivel bracket and fit the long hexagonal stud onto it (A on diagram) tightening this securely to the frame member, next insert a threaded spigot into the other end and tighten this in place.
- Page 5 At the rear of the trap pass the M8 cup square bolt through the rear key- hole slot and the longer nylon spacer, passing the bolt through into the hole in the trap’s side frame ensuring that the flats of the cup square head sit properly within the thin part of the keyhole slot before securing with a Nyloc nut (Do not fully tighten yet).
- Page 6 Connecting the electrical wiring: Remove the black end plug (control panel) from the rotation box. The electrical assembly within the rotation box has controls for rotation and elevation. The elevation box is connected into the existing rotation box, undo and discard the white or light coloured blanking plug on the rotation box and pass the wiring from the elevation box through into the rotation box.
- Page 7 Motor wiring: If any motor wiring has been supplied loose, or has been disconnected at any time during trap assembly, reconnect as follows: Warning: THE TRAP MUST BE IN SAFE MODE BEFORE CONTINUING - SEE BACK PAGE FOR INSTUCTIONS ON HOW TO DO THIS. Connect the battery: Secure the battery to the tray using the Velcro strap(s) provided.
- Page 8 South Wirral MO 64477 CH66 7PA USA. United Kingdom Tel: +44 (0) 151 327 2220 (General) Toll Free: 888.767.2529 Fax: +44 (0) 151 3277075 Fax: 816.539.0257 E-mail info@promatic.co.uk E-mail: sales@promatic.biz Website: www.promatic.co.uk Website: www.promatic.biz Super Hawk Wobble Version 1.6 March 2019...
