Receiver Controls & Indicators - SubSurface Instruments PL-TT Series User Manual

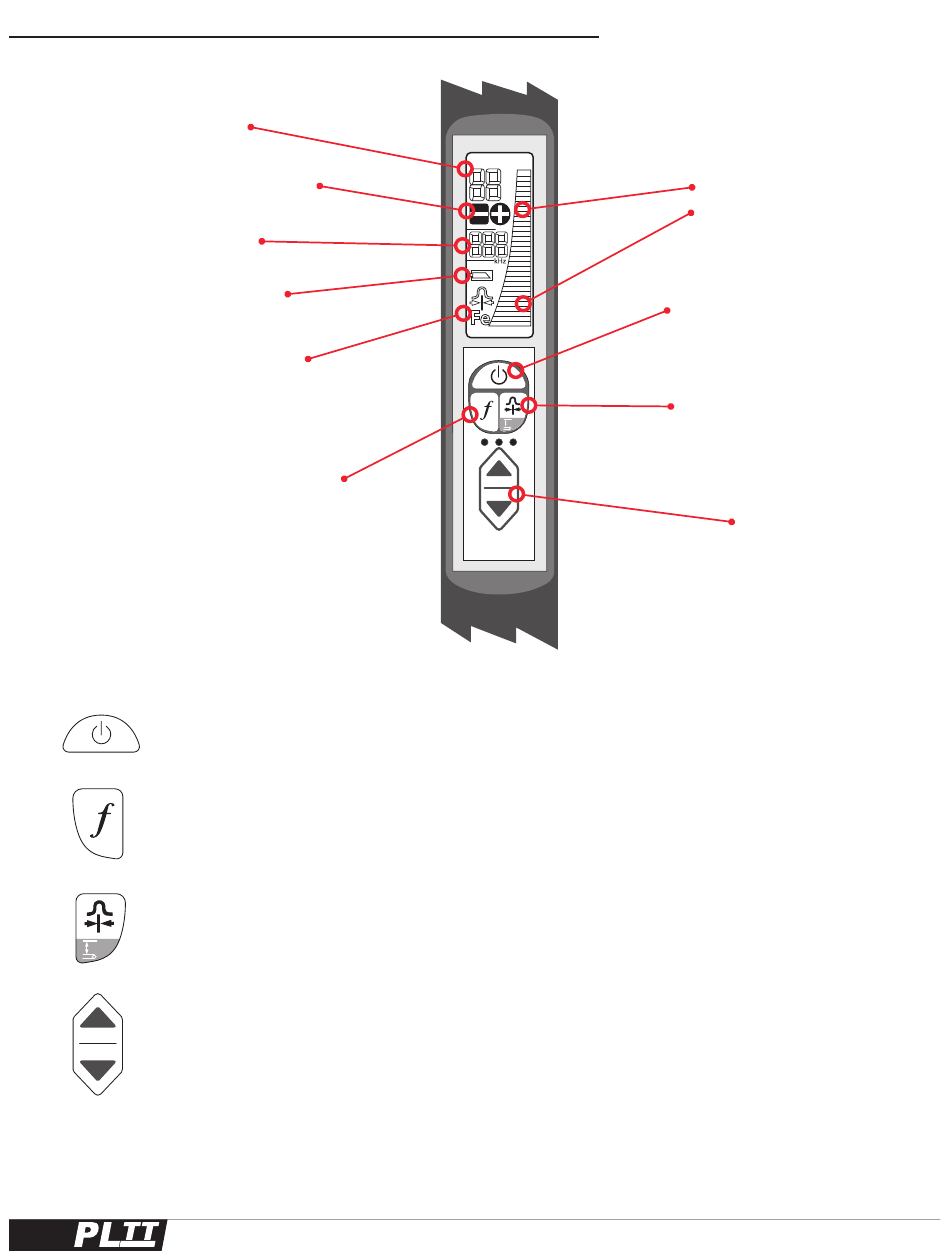

Absolute Signal Strength
Displays Selected Frequency
Low Battery Icon
Displays Operation Mode
selected operation and/or
selected frequency available
ON/OFF Button
The unit will load settings from previous usage.
Frequency Button
Toggles through available frequencies (model specific) 512Hz, 8kHz, 33kHz & 82kHz.
Mode/ Depth Button
Mode selects between 3 modes, peak locating mode, left-right guidance mode and ferrous metal detection
mode. Depress and hold for 3 seconds for depth reading.
Gain Button (Up or Down)
Adjusts the gain up or down. Gain level displayed as solid or missing bar on bar graph.
10
SERIES
pl-tt r C
eCeiver ontrol
Polarity
Frequency Button
& i
ndiCators
Relative Signal Strength
Bar Graph
(Single bar shows Gain Setting)
On / Off Button
Mode Button
(Hold for Depth)
Adjust Gain Up or Down
