BACKPACK STRAPS

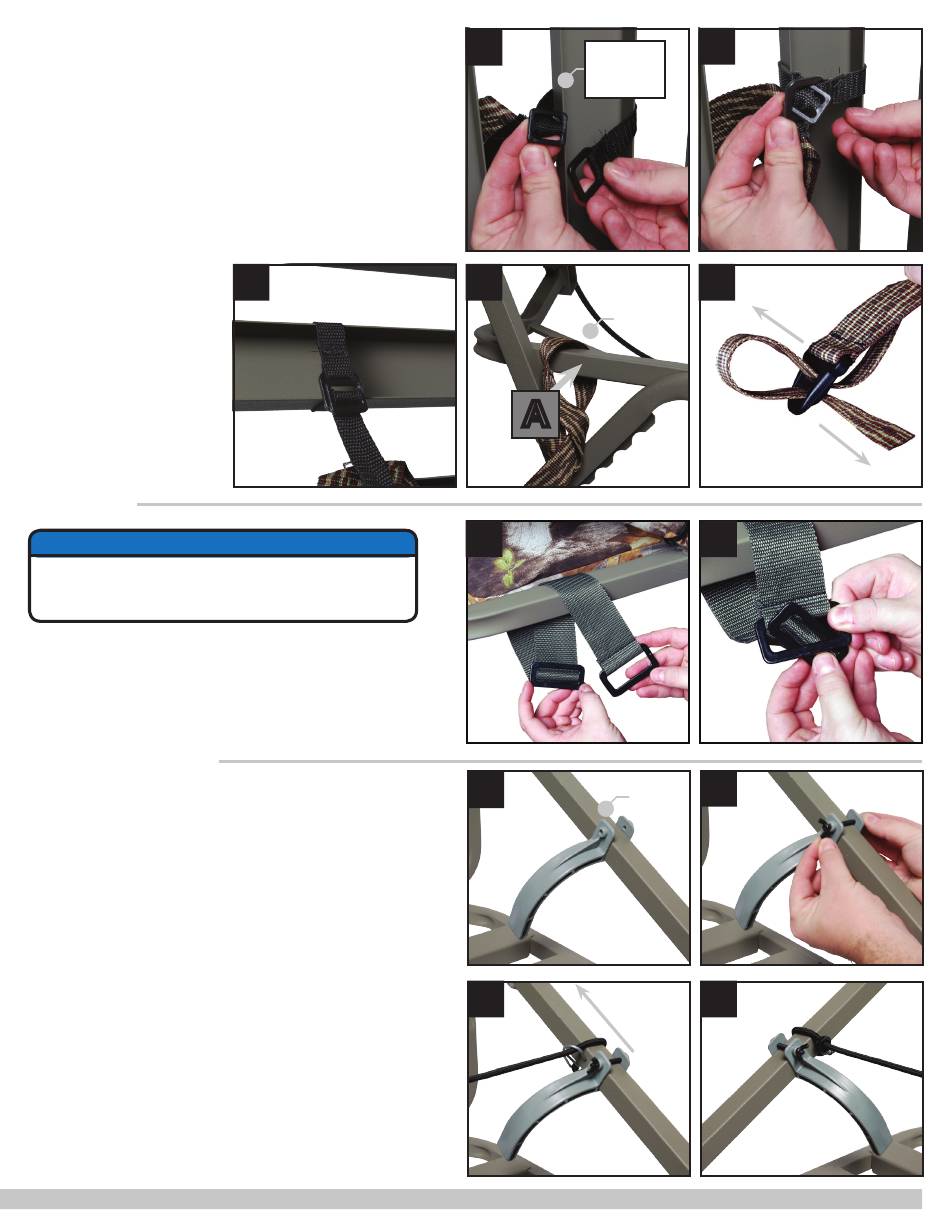

1. Wrap the buckle end of the 2" wide V strap around the
first platform rung as shown in figure 2. Push the 3 Bar
Slide through the buckle as shown in figure 3. The buckle
should look like figure 4 when complete. Pulling on the
straps should cinch down the buckle.
2. Place the looped end of the 1" wide strap around the
platform tubing at point A and bring the loose end back
through the loop as shown in figure 5. Pull tight to create a
cinch knot. Repeat for the other side.
3. Thread the loose end of each 1" strap through the
buckle on the 2" V strap as shown in figure 6.
FOAM SEAT
NOTICE
The foam seat included with these treestands is
removable for storage. DO NOT leave your stand
outdoors when it is not being used.
1. Position the seat inside of the seat climber frame.
2. Wrap the seat strap webbing over the frame from the
inside out as shown in figure 7.
3. Turn the three bar slide slightly sideways and push it
through the metal D buckle that is sewn onto the end of the
strap (figure 8).
RAPIDCLIMB STIRRUPS
1. Position the stirrup as shown in figure 9. The curved end
of the stirrup should face down and in - toward the center
of the platform.
2. Once positioned secure with the supplied bolt and wing
nut as shown in
figure 10. Occasional readjustment might be necessary
as your footwear needs change. To adjust, simply loosen
the wing nut and slide the stirrup up or down. It is not
necessary to completely remove the nut to adjust the
stirrup.
3. Wrap the supplied bungee cord around one side of the
curved platform upright bars and push the S-hook through
the loop as shown in figure 11. The bungee should always
be attached ABOVE the stirrup on the tree side of the
upright bars.
4. Pull the hook across the platform and loop it over the
opposite upright bar. Hook it back over it self as shown in
figure 12.
4
2
2" WIDE
STRAP
(PN 40274)
5
1" WIDE
STRAP
(PN 40274)
A
7
9
STIRRUP
11
TOWARDS
TREE
3
6
8
10
12
