1
INDEX
2

PARTS LIST

BOX CONTENTS

PN DESCRIPTION
61155 STEEL PLATFORM
61156 STEEL CLIMBING TOP
70209 FOAM SEAT REALTREE
71209 FOAM SEAT MOSSY OAK
(81529 - INFINITY MODEL ONLY)
30700 CLIMBING CABLE
ACCESSORY PACKET
3
TOOLS REQUIRED
Tools
• Knife or Snips
4
ASSEMBLY
1a
IN-LINE
CABLE TIES
(PN 10656)
1b
PG 2
GENERAL WARNINGS AND PRECAUTIONS, STAND WEIGHT LIMITS
SECTION 1 - INDEX
SECTION 2 - PARTS LIST
SECTION 3 - TOOLS REQUIRED
SECTION 4 - ASSEMBLY
SECTION 5 - SETUP AND USE
SECTION 6 - TIPS
SECTION 7 - MAINTENANCE AND CARE
SECTION 8 - HARNESS SUSPENSION INFORMATION
SECTION 9 - LIMITED WARRANTY INFORMATION
Please call 256-353-0634 or visit http://www.summitstands.com/contactus/
if you have any questions, if you need replacement parts, if you have any missing parts or if the
included DVD does not play.
QTY
1
1
1
1
2
1
Use
Cable Tie Trimming
60" FOAM
PAD
(PN 70246/71246)
ACCESSORY PACKET CONTENTS
PN DESCRIPTION
10534 FOOT STIRRUPS
21070 STIRRUP HARDWARE PACK
30341 STIRRUP BUNGEE CORD
70246 60" CAMO FRONT PAD REALTREE
71246 60" CAMO FRONT PAD MOSSY OAK
(81529 - INFINITY MODEL ONLY)
10656 IN-LINE CABLE TIES
83054 SUMMIT 4 POINT SAFETY HARNESS W/
ATTACHED SRS STRAP
HARNESS SAFETY STRAP
40274 BACKPACK STRAP ASSEMBLY (3 PCS)
30536 UMBILICAL ROPE
18007 WARRANTY CARD
10915 SUMMIT DECAL
18029 WRITTEN HARNESS INSTRUCTIONS
30285 GREEN TOURNIQUET STRAP W/ BUCKLE 1
18030 SAFETY AND INSTRUCTIONAL DVD
COMFORT PAD / TRACTION STRIPS

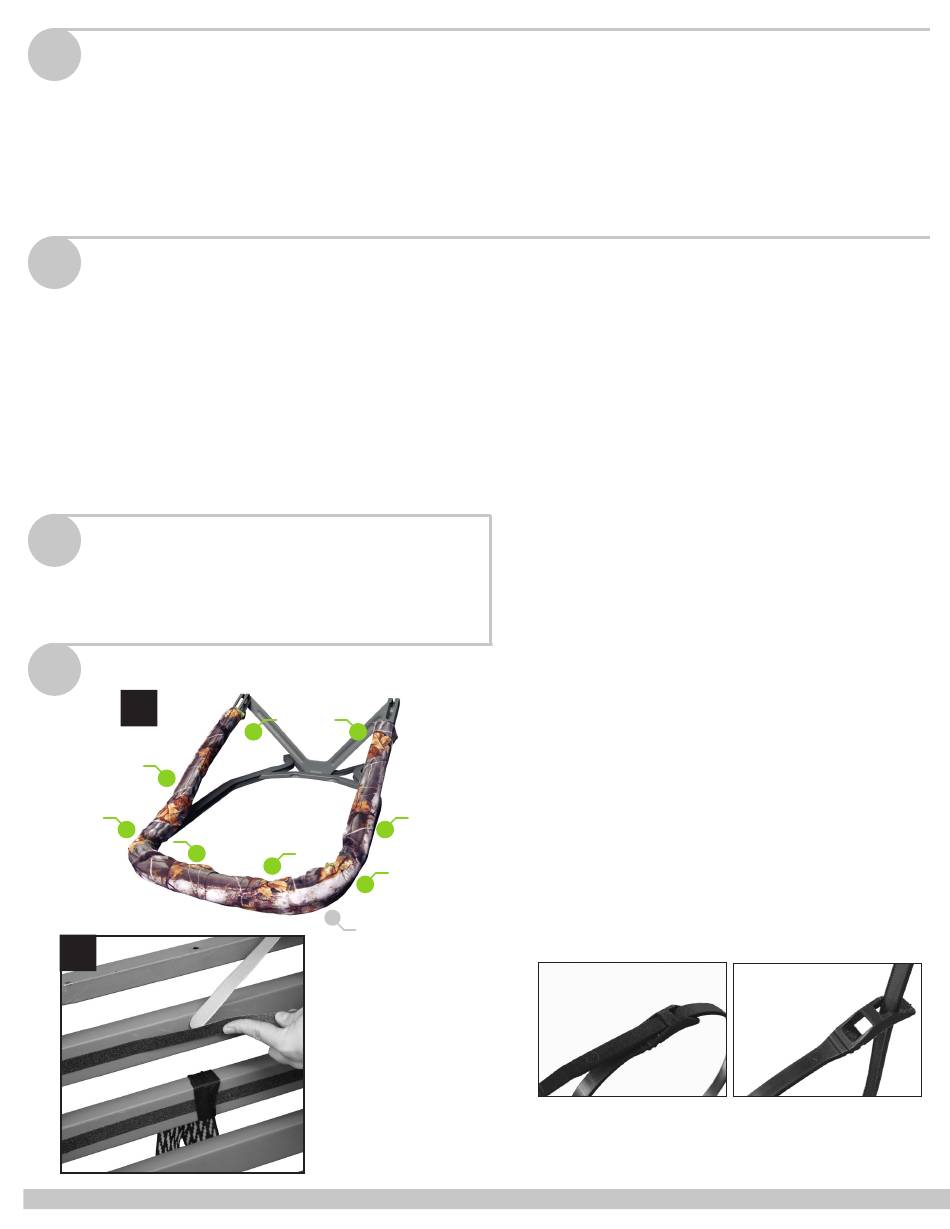

1. Position the 60" pad as shown in figure 1a
(Aluminum Viper Shown). Secure with 8 In-Line
Cable Ties as shown. Please note the Correct and
Incorrect ways of using the ties. Use a sharp knife or
snips to trim the excess. Rotate the clasp under the
pad after they have been trimmed.
Correct
2. Peal the backing off of one of the supplied high
traction strips and apply to the center of the platform
run as shown in figure 1b. Repeat for all 5 rungs.
PG 1
PG 2
PG 2
PG 2
PG 2-3
PG 4-9
PG 10
PG 10
PG 11
PG 11
QTY
2
1
1
1
1
8
1
1
1
1
1
1
1
1
Incorrect
