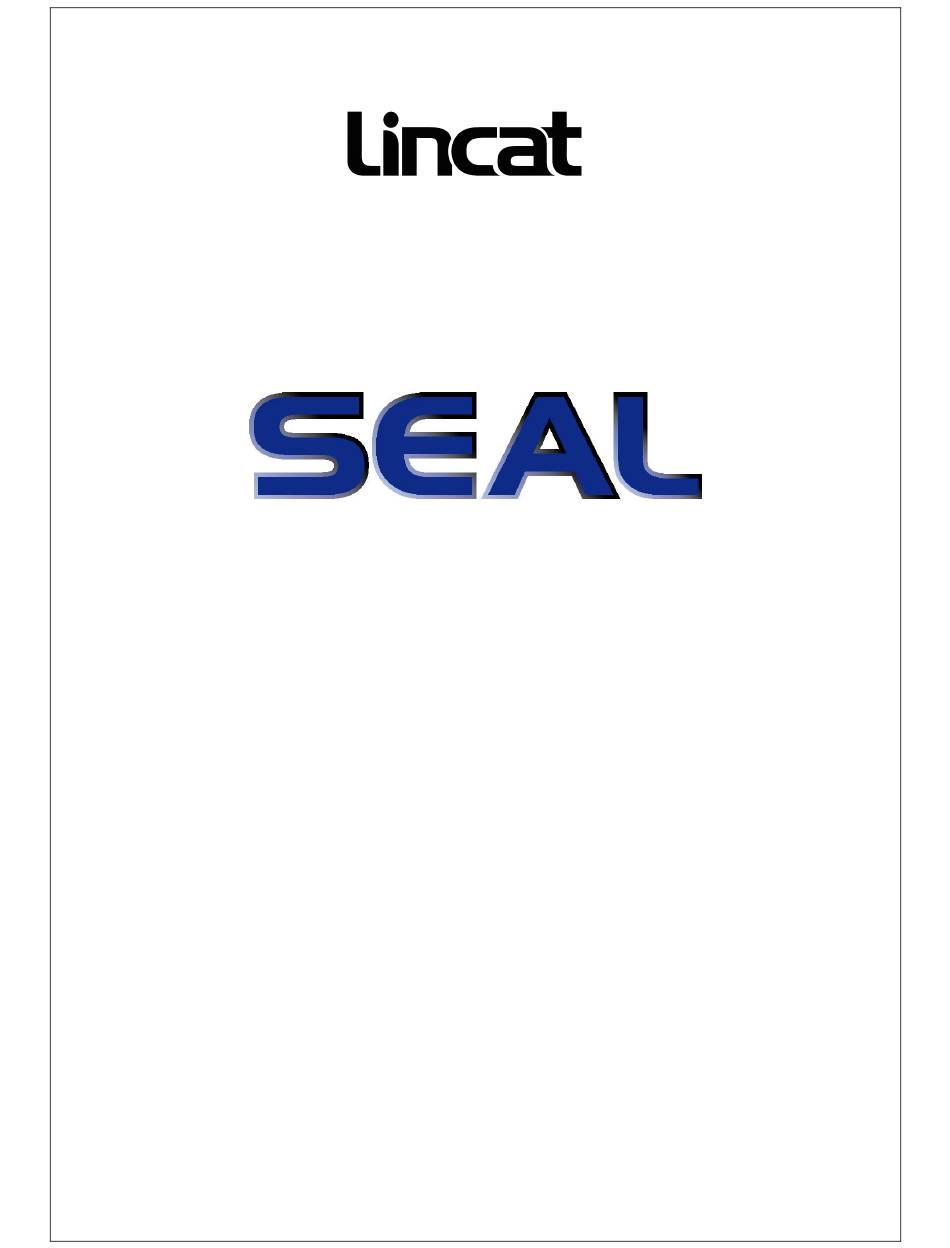

- Page 1 INSTALLATION AND USER INSTRUCTIONS REFRIGERATED FOOD PREPARATION BAR ACCESSORIES IS279 ECN2885...
- Page 2 Used for the purposes for which it is intended, and with careful maintenance as outlined in this User Guide, your Lincat product will give years of trouble free use. IMPORTANT INFORMATION Please read all of the safety and operating instructions carefully before using this product.
- Page 3 CONTENTS Contents Page Product specification………………………………………………….. 3 Back-service glass ……..……………………………………………… 4-5 Stainless steel lid………………………………………………………. 6 PRODUCT SPECIFICATION Food Preparation Bar Back Service Glass – PBG5, PBG7 Food Preparation Bar Lid – PBL5, PBL7 These instructions are for your guidance and refer to the accessory ordered. For installation and use of your Food Preparation Bar, follow the instructions supplied.
- Page 4 BACK SERVICE GLASS Pack contents: 2 x Three-Corner Brackets 14 x M5 x 8 Domehead Screws 4 x Two-Corner Brackets 14 x Washers 4 x Glass Supports 2 x Side Glass Panels 8 x M4 x 10 Countersunk Screws 2 x Main Glass Panels GL490 for FPB5 GL491 for FPB7 Three Corner Bracket...
- Page 5 GL489 Side Glass Three Corner Bracket Shoulder Washer M5 x 8 Dome Head Slotted Screw Connect two-corner brackets to the remaining two holes in each side glass. On a suitable sized work surface, take a main glass panel (for use as the front panel) and offer it up to one of the side panels.
- Page 6 STAINLESS STEEL LID Pack contents: 1 x Lid 1 x Right Hand Hinge 1 x Left Hand Hinge 4 x M5 x 20 Dome Head Screws Remove the protective black covers from the 4 hinge fixing holes. With 2 of the M5 screws, fit the right hand hinge next to the compressor cover.
