Hälsa Bed
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Permobil Halsa

Summary of Contents for Permobil Halsa

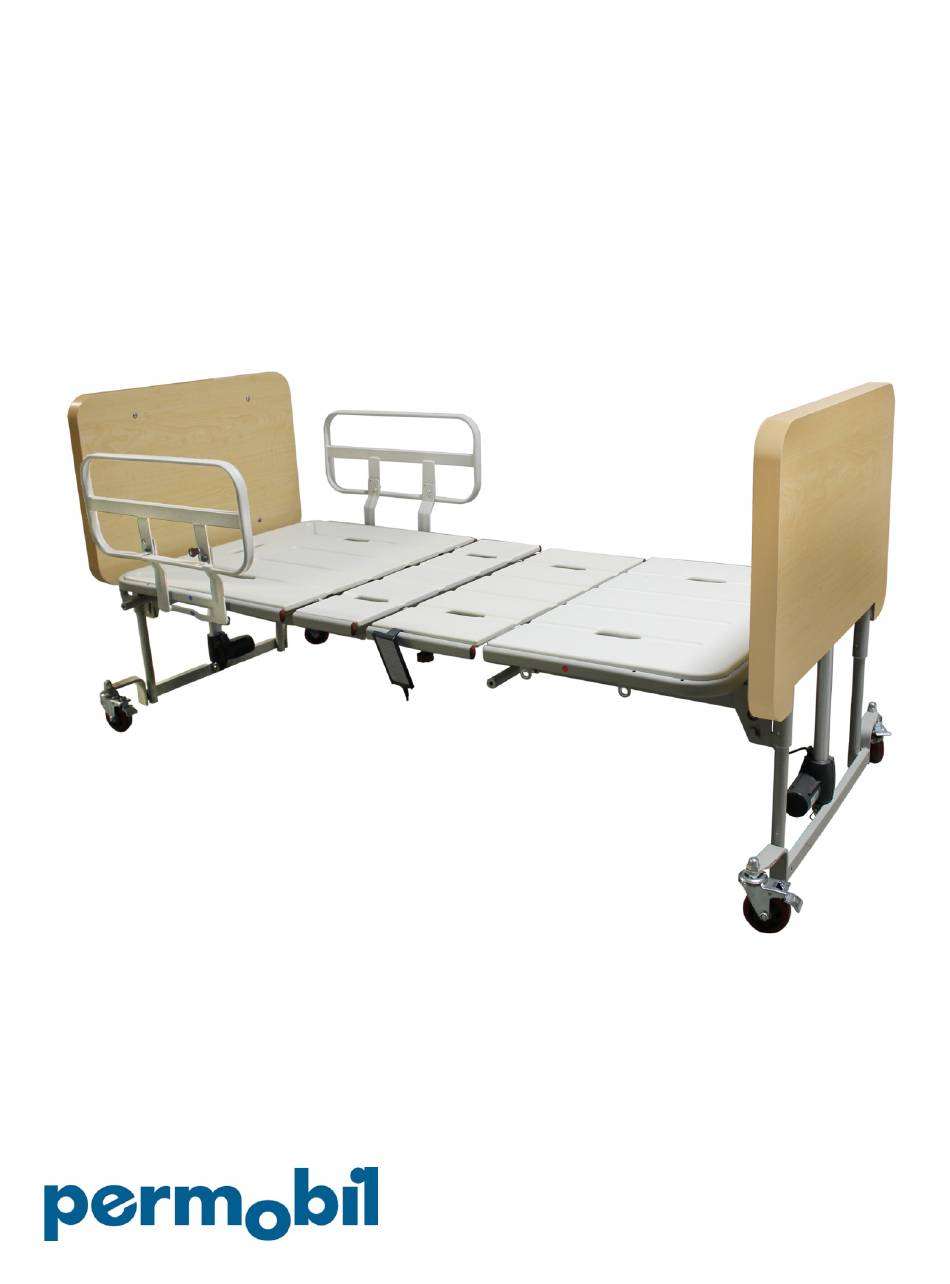

  • Page 1 Hälsa Bed Owner’s Manual...
  • Page 2 Version 2.0 August 2018 © Permobil 2018 This document may not be reproduced, copied or used for purposes other than its intended use without the prior written consent of Permobil. This manual includes installation instructions as well as important safety and maintenance information for your Hälsa Bed.

  • Page 3: Table Of Contents

    Hälsa Bed Owner’s Manual Table of Contents Introduction Design and Functions ..........................1 Specifications ...............................2 Safety Precautions .............................2 Assembly Overview................................3 Inspection before unpacking .........................3 Damage during transport ........................4 Incorrect shipment ..........................4 1 – Unpack the bed ...........................5 2 – Assemble the frame ...........................8 Remove the platform ........................
  • Page 4 Hälsa Bed Owner’s Manual Install half side rails ..........................25 5 – Install the platform .......................... 27 6 – Install the headboard and footboard ..................28 7 – Finish the assembly ......................... 31 Install bumpers ............................ 31 Tidy wires ............................... 31 Prepare to install the mattress .......................

  • Page 5: Introduction

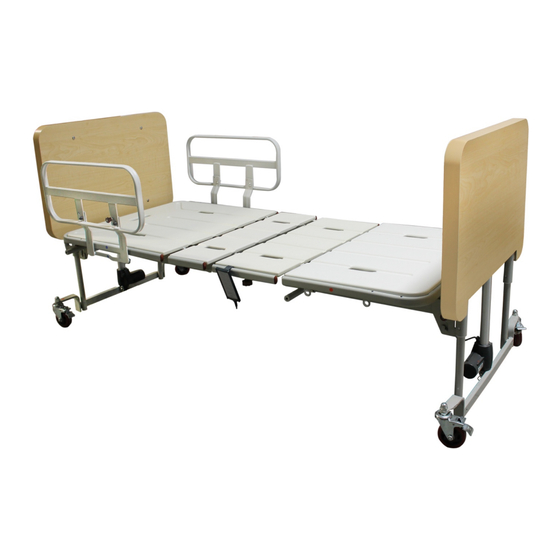

    Permobil Hälsa Bed Owner’s Manual Design and Functions Introduction Design and Functions The Hälsa Bed is an electric adjustable bed with Trendelenburg & reverse Trendelenburg capabilities. The Hälsa Bed includes • frame • platform • headboard and HEADBOARD footboard • electrical systems •...

  • Page 6: Specifications

    Incorrect assembly or use may injure the user or damage the bed. Permobil is not responsible for personal injuries or property damage resulting from any personʼs failure to follow the warnings and instructions in this manual. Permobil is not responsible for injuries or damage resulting from failure to exercise good judgment.

  • Page 7: Assembly

    Permobil Hälsa Bed Owner’s Manual Overview Assembly Overview The Hälsa Bed is designed for easy assembly, disassembly, and transport. Assembly can be accomplished by one person. The general steps are as follows: 1 - Unpack the bed 2 - Assemble the frame...

  • Page 8: Damage During Transport

    Permobil for further information. If there is any damage, it must be indicated on the bill of lading. Permobil must be informed of the situation within 24 hours of receipt of goods so that the carrier can be notified as soon as possible.

  • Page 9: Unpack The Bed

    Permobil Hälsa Bed Owner’s Manual 1 – Unpack the bed 1 – Unpack the bed The frame and platform are shipped in 4 pieces in the same box: • Head support • Foot support • Head frame with motors and electrical systems attached •...
  • Page 10 Permobil Hälsa Bed Owner’s Manual 1 – Unpack the bed 3 - From the side of the packing skid, unscrew and remove the 2 red-handled knobs on each side of the head and foot frame assemblies to unfasten the bed from the packing bracket.
  • Page 11 Permobil Hälsa Bed Owner’s Manual 1 – Unpack the bed 6 - The head and foot supports are still attached to the packing bracket. Shift the head support higher and the foot support lower so there is clearance off the skid. Undo the locking pins on each side of the foot frame to release the foot frame from the packing bracket.

  • Page 12: Assemble The Frame

    Permobil Hälsa Bed Owner’s Manual 2 – Assemble the frame 2 – Assemble the frame The Hälsa Bed frame is provided in 4 pieces. You will lie the head and foot supports on the floor and then attach the head frame assembly to the head support and the foot frame assembly to the foot support.
  • Page 13 Permobil Hälsa Bed Owner’s Manual 2 – Assemble the frame 3 - Place the head frame assembly above the head support, lining up the lock pins on the head frame assembly with the slots on the head support. HEAD FRAME...
  • Page 14 Permobil Hälsa Bed Owner’s Manual 2 – Assemble the frame 6 - Place a foot on the head support to hold it steady and then pull down on the head frame assembly to lay it down on the ground. PULL DOWN ON...
  • Page 15 Permobil Hälsa Bed Owner’s Manual 2 – Assemble the frame 8 - Lift the head and foot decks so that you can align the locking inserts on the foot deck to the locking slots on the head deck. 9 - Ensure that each locking insert is fully in the corresponding locking slot.

  • Page 16: Remove The Platform

    Permobil Hälsa Bed Owner’s Manual 2 – Assemble the frame Remove the platform To access the electrical connections and motors, you must first temporarily move the platform out of the way. Tool required: cable tie snipper STEPS 1 - Remove all cable ties from the 4 platform segments. Note that one of the platform segments is cable tied underneath the frame.

  • Page 17: Connect The Electrical Systems

    Permobil Hälsa Bed Owner’s Manual 3 – Connect the electrical systems 3 – Connect the electrical systems To connect the electrical systems, 5 cables must be connected to the central motor. All connections (except the battery backup) are color-coded. Overview...

  • Page 18: Access The Central Motor

    Permobil Hälsa Bed Owner’s Manual 3 – Connect the electrical systems 3.1 - Access the central motor Cut the cable tie holding the hand pendant and power cord to the central motor. www.permobil.ca...

  • Page 19: Temporarily Remove The Cable Separator

    Permobil Hälsa Bed Owner’s Manual 3 – Connect the electrical systems 3.2 - Temporarily remove the cable separator To make the electrical connections, you must temporarily remove the cable separator from the bed’s central motor. The cable separator is snapped in on each end of the underside of the motor.

  • Page 20: Connect The Foot Hi-Low Motor

    Permobil Hälsa Bed Owner’s Manual 3 – Connect the electrical systems 3.3 - Connect the foot hi-low motor STEPS 1 - Remove the packaging from the foot hi-low motor. 2 - Run the green color-coded cable under the frame and through the first hook.

  • Page 21: Connect The Head Hi-Low Motor

    Permobil Hälsa Bed Owner’s Manual 3 – Connect the electrical systems 3.4 - Connect the head hi-low motor STEPS 1 - Remove the packaging from the head hi-low motor. 2 - Plug the blue plug into the blue location on the central motor, making sure that the arrow is on top.

  • Page 22: Connect The Battery Backup

    Permobil Hälsa Bed Owner’s Manual 3 – Connect the electrical systems 3.6 - Connect the battery backup The main power to the bed and the battery backup must be plugged in for 48 consecutive hours to charge the battery. STEPS 1 - Run the wire from the battery backup through the hook as shown.

  • Page 23: Connect The Leg/Knee Motor

    Permobil Hälsa Bed Owner’s Manual 3 – Connect the electrical systems 3.7 - Connect the leg/knee motor STEPS 1 - Remove packaging on all motors. 2 - Plug the red plug into the red location on the central motor, making sure that the arrow is on top.

  • Page 24: Cut Remaining Cable Ties On Bed Frame

    Permobil Hälsa Bed Owner’s Manual 3 – Connect the electrical systems 3.8 - Cut remaining cable ties on bed frame Cut the remaining 5 cable ties on the bed frame, making sure that the tool does not scratch the bed or paint during cutting.

  • Page 25: Test The Connections

    Permobil Hälsa Bed Owner’s Manual 3 – Connect the electrical systems 3.9 - Test the connections Use the hand pendant to test all bed positions to be sure that all motors are connected properly. The buttons on the left raise, and the buttons on the right lower each section of the bed.

  • Page 26: Replace The Cable Separator

    Permobil Hälsa Bed Owner’s Manual 3 – Connect the electrical systems 3.10 - Replace the cable separator STEPS 1 - Ensure that the correct color-coded wires are connected to the central motor with the arrow on each cable facing up.

  • Page 27: Install Optional Side Rails

    Permobil Hälsa Bed Owner’s Manual 4 – Install optional side rails 4 – Install optional side rails If you are using full or partial side rails with your Hälsa Bed, they should be installed after the electronic components have been connected, before the platform is installed. Side rails are shipped in a separate box.
  • Page 28 Permobil Hälsa Bed Owner’s Manual 4 – Install optional side rails 3 - Position one of the side rails next to the bed so that it will swing away from the head end. Turn the red adjustment knob to loosen the rail to allow enough play to align the rail with the bed.

  • Page 29: Install Half Side Rails

    Permobil Hälsa Bed Owner’s Manual 4 – Install optional side rails Install half side rails Tool required: ratchet set STEPS 1 - Open the half side rail box and remove the side rails. 2 - Remove the packaging from the side rails. You will find two half rails with all necessary hardware.
  • Page 30 Permobil Hälsa Bed Owner’s Manual 4 – Install optional side rails 3 - Position one of the side rails next to the bed with the corresponding color dot. Locate the holes in the frame where the side rails will be attached.

  • Page 31: Install The Platform

    Permobil Hälsa Bed Owner’s Manual 5 – Install the platform 5 – Install the platform After the electrical systems have been connected and you have installed any optional side rails, you can install the platform. STEPS 1 - Retrieve the platform segments that you put aside earlier. Remove all remaining packaging.

  • Page 32: Install The Headboard And Footboard

    Permobil Hälsa Bed Owner’s Manual 6 – Install the headboard and footboard 6 – Install the headboard and footboard The headboard and footboard are shipped in a separate box. Tool required: Phillips head screwdriver STEPS 1 - Open the head & footboard box and remove the contents.
  • Page 33 Permobil Hälsa Bed Owner’s Manual 6 – Install the headboard and footboard 4 - Use the hand pendant to reposition the bed frame out of the way. Slide the footboard over the footboard support so the side with pre-drilled holes faces in/away from the installer.
  • Page 34 Permobil Hälsa Bed Owner’s Manual 6 – Install the headboard and footboard 8 - Use a Phillips head screwdriver and the cap assemblies to secure the head and footboards to the head and footboard supports through the pre-drilled holes. There are 4 on the footboard and 4 on the headboard.

  • Page 35: Finish The Assembly

    Permobil Hälsa Bed Owner’s Manual 7 – Finish the assembly 7 – Finish the assembly The final steps in the assembly include placing bumpers by the casters, and tidying the wires. Install bumpers Take the 4 bumpers that were in the bag inside the headboard and insert them into the holes on the bottom of the bed frame near the casters.

  • Page 36: Usage

    Permobil Hälsa Bed Owner’s Manual Inspect the bed before use Usage The Hälsa Bed is an electric adjustable bed with Trendelenburg & reverse Trendelenburg capabilities. (shown here for reference with a 5 Minds Mobility mattress – not included in Hälsa...

  • Page 37: Move The Bed Into Different Positions

    Permobil Hälsa Bed Owner’s Manual Move the bed into different positions Move the bed into different positions Before moving the bed into a different position, ensure that nothing will interfere with the movement of the bed. Use the hand pendant to move the bed into different positions. The buttons on the left raise, and the buttons on the right lower each section of the bed.

  • Page 38: Using Side Rails

    Permobil Hälsa Bed Owner’s Manual Safe operation Using side rails Side rails are made to prevent accidental falls. They must not be used to restrain, to keep the user from getting out of the bed, or to help the user to turn. It is the caretaker’s responsibility to use the appropriate restraining means for the user’s safety.

  • Page 39: Maintenance

    Permobil Hälsa Bed Owner’s Manual Maintenance Maintenance Regular maintenance is essential to maintain the bed’s reliability. A defective bed should not be used. Make sure to support the frame of the bed if you need to work under the platform. This will prevent the bed’s structure from falling accidentally.

  • Page 40: Returns

    Permobil Hälsa Bed Owner’s Manual Returns Permobil reserves the right to substitute equal or superior quality materials during repairs and/or replacements. All repaired or replaced parts are guaranteed for whichever is greater: 1 year from the date of service or the life of the warranty.
