Summary of Contents for Permobil Resten Hi-Low

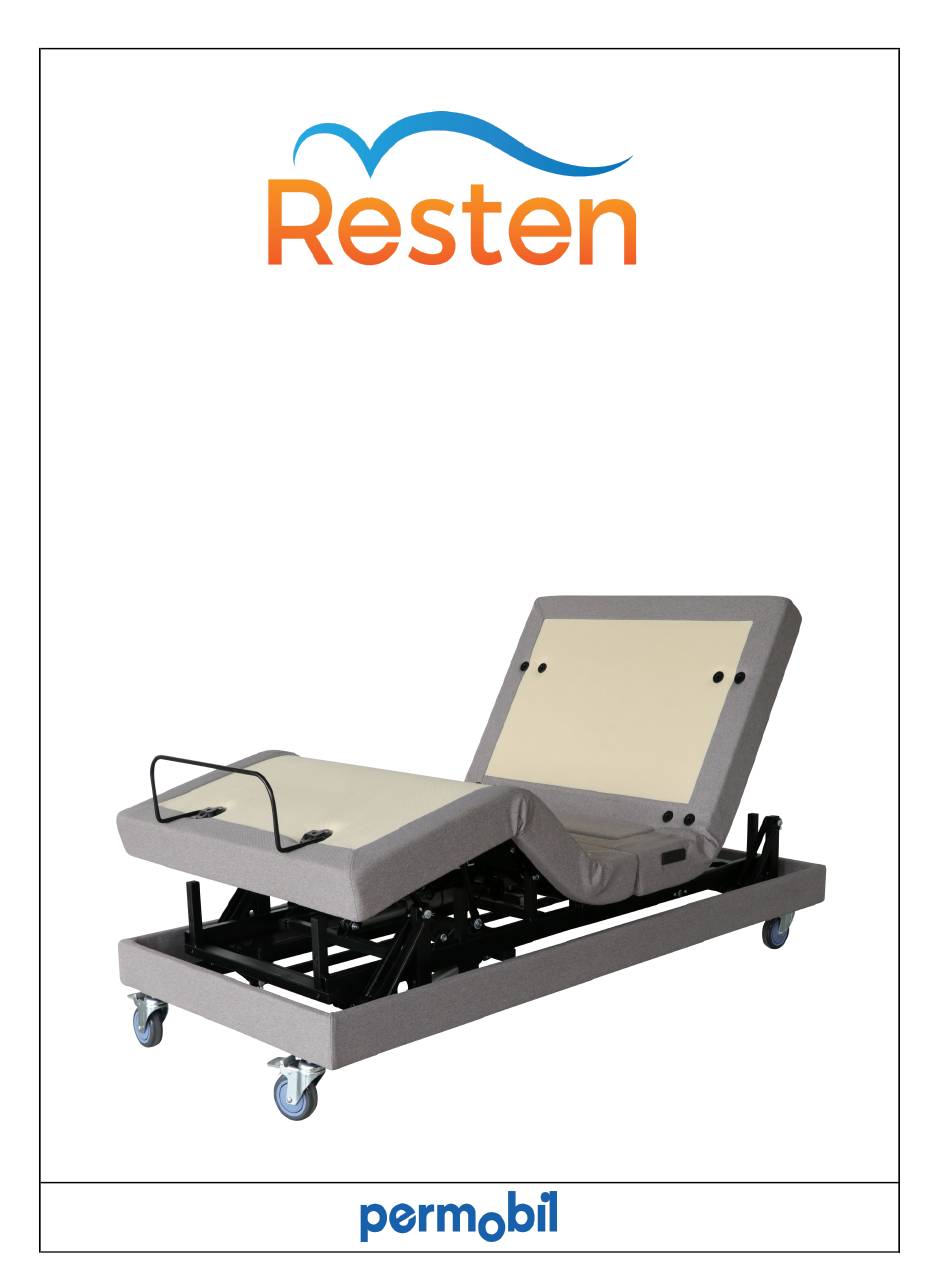

- Page 1 USER'S MANUAL Permobil Resten Hi-Low...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions …………………………………………………………………………………………..… Parts List ………………………………………………………………………………………………….…… Under Bed View ……………………………………………………………………………………..………… Electronics Overview …………………………………………………………………………………………… Installation ……………………………………………………………………………………………………… Wireless Remote Control …………………………………………………………………………...………… APP Use Guide …………………………………………………………………………………...………… USB Charge Use Guide …………………………………………………………………………...………… Remote Pairing ….…………………………………………………………………………………….………… Memory Setting ………………………………………………………………………………………………… Setting Up Two Bases …………………………………………………………………………………………… Hand Rails Installation ………………………………………………………………………………...………... -
Page 3: Safety Instructions
Safety Instructions Safety Disclaimer Thank you for purchasing a Resten adjustable bed base. For your safety, please read all instructions carefully before using this adjustable base. Save these instructions for future reference. Attention: Keep the base unplugged from the electrical outlet before operating any part of the base. To prevent the risk of electric shock, always unplug the base before cleaning. - Page 4 Safety Instructions Product Ratings: The lift motors are not designed to operate continuously for more than 2 minutes in an 18 minutes time period. Attempting to circumvent or exceed this rating will shorten the life expectancy of the product and may void the warranty.
-
Page 5: Parts List
Parts List Ensure you have received all the parts listed below before discarding the packing materials. Parts List: A) Wireless Remote Control [1] and AAA batteries [2] B) Lockable Caster [4] C) Mattress Retainer [1] D) Power Supply [1] E) Power Cord [1] F) Hand Rail [2] (Optional) G) Fixed Plate [4] (Optional) H) Long Bolt &... -
Page 6: Under Bed View
Under Bed View Vibrator LED Light Control Box (Bluetooth is Head Motor built-in) Foot Motor Lumbar Motor Vibrator Hi-Lo Motor... -
Page 7: Electronics Overview
Electronics Overview Not to Scale, Only for illustration purposes. Read all illustrations and instructions before beginning the installation process. Remote... -
Page 8: Installation
Installation STEP 1: Remove packing materials Put the bed base in a desired place with the bottom of the box facing up. Remove box cover, take out all of the packing materials and put aside. Make sure not to puncture the bed with any sharp objects. - Page 9 Installation STEP 5: Remote After the base is connected to the power supply, install two AAA batteries into the remote battery compartment. See pages 9 and 10 to learn how to operate the remote. STEP 6: Install mattress retainer *Locate the mattress retainer as shown below [1)]; Insert the mattress retainer into the hooks at the foot of the bed as shown [2)].
-
Page 10: Wireless Remote Control
Wireless Remote Control Remote Overview Whole bed up Foot Up Whole bed Foot Down down Lumbar Up Head Up Lumbar Down Head Down Massage Mode sets Head Massage Intensity Foot Massage Intensity Preset TV Position Preset Zero Gravity Position Preset Anti- snore Underneath LED Light... - Page 11 Wireless Remote Control Adjusting Features The Hi-Lo button raises up/lowers down the whole bed horizontally. The FOOT UP/DOWN button raises/lowers the head section of the base to a desired position. The HEAD UP/DOWN button raises/lowers the head section of the base to a desired position. The LUMBAR UP/DOWN button customizes the lever of lumbar support.
- Page 12 Wireless Remote Control Massage Features One touch TV button presets the user to desired TV watching position. One touch ANTI SNORE button presets the user to a desired anti- snore position. One touch ZERO GRAVITY preset position, adjust user's legs to a higher level than heart, to help relieve pressure off the lower back and promote body circulation.
-
Page 13: App Use Guide
Click the "Connecting Device" selection to select device the target bed with the name starting with "S4-2-H04- ******** "to connect to it. STEP 4: Enter the "Permobil Resten Hi-Low" page, now the smart device can activate all same functions as the remote. USB Charge Use Guide... -
Page 14: Remote Pairing
USB Charge Use Guide USB Charge Guide There are four USB Type-A ports (two on either side of the bed base). After connecting the power supply, you may use the USB ports to charge your mobile devices. ○ Limitations The USB ports have a total load capacity of 5V 2A. They should only be used to charge mobile phone devices. The USB ports are not designed to charge larger devices such as tablets, laptops or computers and do not accommodate super charging cables. - Page 15 Remote Pairing Attention: All bed bases are set to their individual remote. If a signal is lost, please read below for how to fix the remote pairing. STEP 1: Press and hold the connect button on the control box until the white indication light starts flashing.
-
Page 16: Memory Setting
Memory Setting Attention: All preset positions (including "TV", "ZG" and "Anti Snore" buttons) except "M" button are set before leaving the factory. Follow below steps to reset your desired positions or proceed to page 15. STEP 1: Ensure the base is connected to the power supply correctly and the remote control works properly. -
Page 17: Setting Up Two Bases
Setting Up Two Bases Attention: All bases are set to the individual remotes. You need to pair your remote if you need the remote controls the second base or one remote controls two bases simultaneously. If using only one base normally, proceed to page 16. - Page 18 Hand Rails Installation (Optional) Install hand rails Put the fixed plate in the corresponding hole on the base [1)], then put the long bolt with washer into the hole [2)]. Install the nut on the long bolt M8 [3)], and tighten the nut with the open-end wrench [4)].
-
Page 19: Troubleshooting
Troubleshooting If one or more functions on the bed base have stopped operating, please check the bed as follow: ◎Check under the bed base to verify that the wired connections are secure and that there are no cords or bedding obstructing the movement of the base. ◎Check to see if the bed base is connected to the power supply correctly.
