Summary of Contents for Stahl EXLUX L402/2 Series

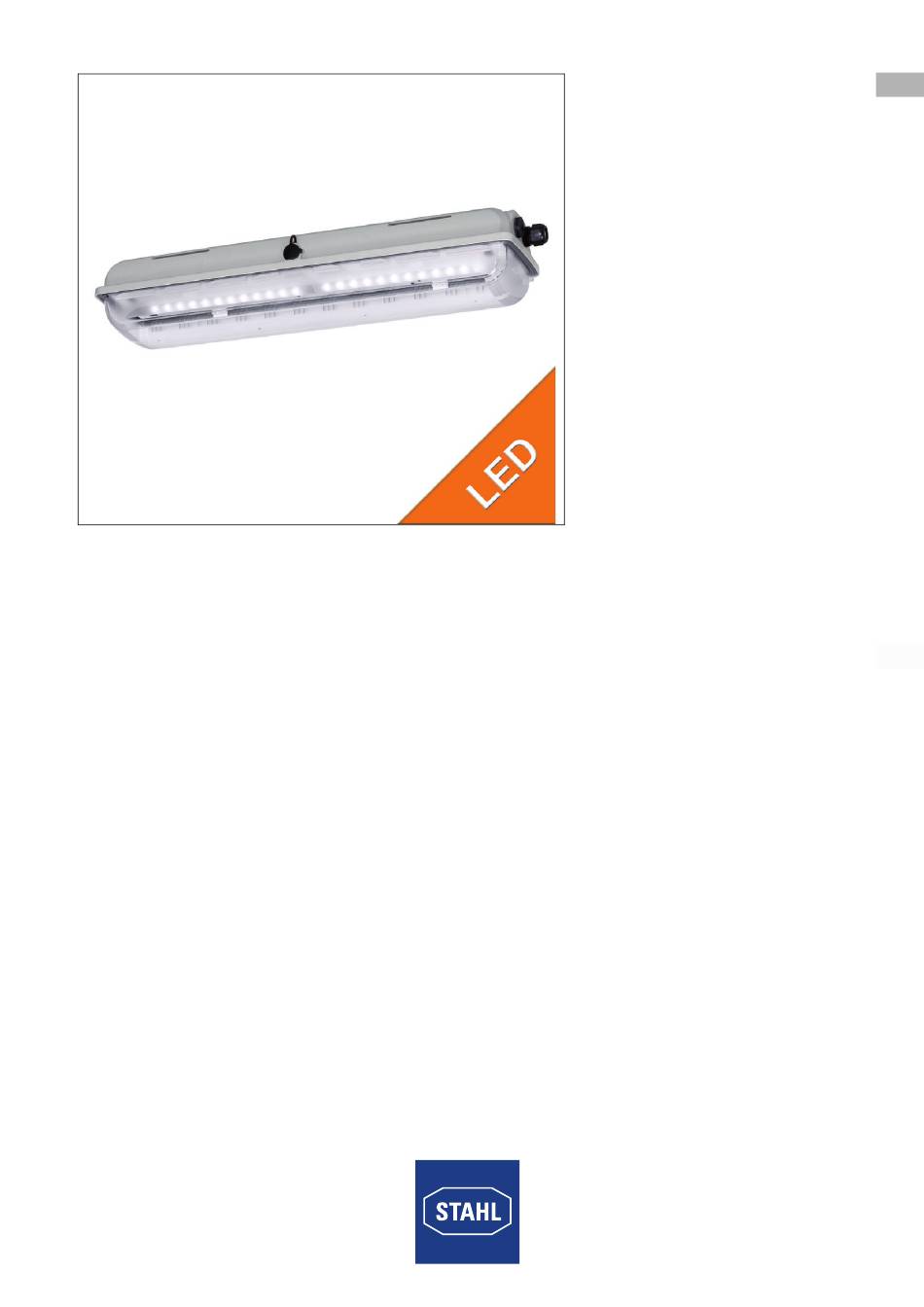

- Page 1 Operating instructions Additional languages www.r-stahl.com Linear Luminaire with LED Series EXLUX L402/2...
-
Page 2: Table Of Contents
Contents General Information ....................3 Manufacturer .......................3 Information regarding the operating instructions ..........3 Conformity with standards and regulations ............3 Explanation of the symbols .................4 Symbols in these operating instructions .............4 Warning notes .....................4 Symbols on the device ..................5 Safety notes ......................5 Operating instructions storage ................5 Safe use ......................5 Intended Use .......................5... -
Page 3: General Information
General Information General Information Manufacturer R. Stahl Schaltgeräte GmbH R. STAHL (P) LTD., Plot No. - 5 Am Bahnhof 30 Malrosapuram Road, Sengundram Indl. Area 74638 Waldenburg Singaperumal Koil, Kancheepuram Dist., Germany Tamil Nadu – 603 204, INDIA Phone: +49 7942 943-0... -
Page 4: Explanation Of The Symbols
Explanation of the symbols Explanation of the symbols Symbols in these operating instructions Symbol Meaning Tips and recommendations on the use of the device General danger Danger due to energised parts Warning notes Warnings must be observed under all circumstances, in order to minimize the risk due to construction and operation. -
Page 5: En 2.3 Symbols On The Device
Safety notes Symbols on the device Symbol Meaning CE marking according to the current applicable directives. 05594E00 Safety notes Operating instructions storage • Read the operating instructions carefully and store them at the mounting location of the device. • Observe applicable documents and operating instructions of the devices to be connected. -
Page 6: Device Design
Function and device design Device design 16346E00 Linear Luminaire with LED 259910 / L40260300020 Series EXLUX L402/2 2017-09-18·BA00·III·en·00... - Page 7 Function and device design 16349E00 1 - Connection terminal - mounting plate 6 - Luminaire enclosure (internal wiring) 2 - Ballast 7 - Mounting plate 3 - Translucent cover 8 - LED PCB 4 - Cable gland 9 - Diffuser (optional / accessories) 5 - Connection terminal - luminaire (customer wiring) 259910 / L40260300020...
-
Page 8: En 5 Technical Data
Technical data Technical data Technical Data Electrical data Control gear AC: 220 ... 240 V ±10 %; 50 ... 60 Hz DC: 200 ... 250 V ±10 % Inrush current = 53,5 A; Δt = 124,8 ms peak maximale Anzahl der Leuchten pro Leitungsschutzschalter: 10 A 16 A 20 A... - Page 9 Technical data Technical Data Ambient conditions Operating -30 ... +55 °C temperature range Storage -30 ... +75 °C Service life Service life ( 25 °C ( 45 °C ( 55 °C 100,000 h 100,000 h 50,000 h At the end of the service life: •...
-
Page 10: En 6 Transport And Storage
Transport and storage Technical Data Through wiring Standard with luminaire Light fittings are equipped with internal through wiring. Ingoing and outgoing leads can be connected to the opposite sides. Terminals: see techn. data Wiring cross section: 2.5 mm for max. 16 A. Optional without On the connection side, there are 2 bores M25 x 1.5 for... -
Page 11: Mounting And Installation
Mounting and installation Mounting and installation NOTICE Malfunction or device damage caused by condensation. Non-compliance can result in material damage! • operate the luminaire continuously or periodically over extended periods of time. • avoid thermal bridges. Dimensions / fastening dimensions Dimensional Drawings (All Dimensions in mm [inches]) - Subject to Alterations 15440E00 Dimensions Luminaire... -
Page 12: Mounting / Dismounting, Operating Position
Mounting and installation Mounting / dismounting, operating position The luminaire is suitable for wall and ceiling mounting. In event of wall mounting in outdoor areas, avoid installation with central lock at top. The mounting position with upward light emission in outdoor areas is prohibited. - Page 13 In case of point suspension using pipe clamps, R. STAHL Schaltgeräte GmbH does not guarantee the strength and tightness of the luminaire! For pipe clamp mounting, use the solution of R. STAHL Schaltgeräte GmbH with integrated mounting rail providing reliable and stable four-point fixing!
-
Page 14: En 7.3 Installation
The result is leakage of the luminaire and difficulties in replacing the translucent cover. For pipe clamp mounting, use the solution of R. STAHL Schaltgeräte GmbH with integrated mounting rail providing reliable and stable four-point fixing! In case of point suspension using pipe clamps, R. STAHL Schaltgeräte... - Page 15 Mounting and installation 90° 165° 15451E00 15436E00 15448E00 • Remove the closing cap of the central lock. • Turn the central lock using a socket wrench M8, wrench size 13, by 90° to the left as far as it will go. •...
- Page 16 Mounting and installation 7.3.2 Electrical connections Electrical connection Observe the maximum clamping possibility of the connecting terminals (see chapter "Technical data"). For optional screw-type terminals, two conductors per clamping unit can be clamped (ingoing and outgoing wiring). Note: • Clamping must be carried out precisely! •...
-
Page 17: En 8 Commissioning
The standard luminaire is delivered with 3 lead-in holes, 2 cable glands and 2 stopping plug. Please observe the tightening torque for luminaires with installed cable glands and stopping plugs from R. STAHL Schaltgeräte GmbH. Tightening torque Connection thread Pressure screw Cable gland 8161 M20 x 1.5... -
Page 18: Maintenance, Overhaul, Repair
Maintenance, Overhaul, Repair Maintenance, Overhaul, Repair WARNING Risk of electric shock or malfunctioning of the device due to unauthorized work! Non-compliance can result in severe injuries and material damage. • Work performed on the device must only be carried out by appropriately authorized and qualified electricians. -
Page 19: Repair
Malfunction or damage to the device due to the use of non-original components. Non-compliance can result in material damage. • Use only original accessories and spare parts from R. STAHL Schaltgeräte GmbH. For accessories and spare parts, see data sheet on our homepage www.r-stahl.com.
