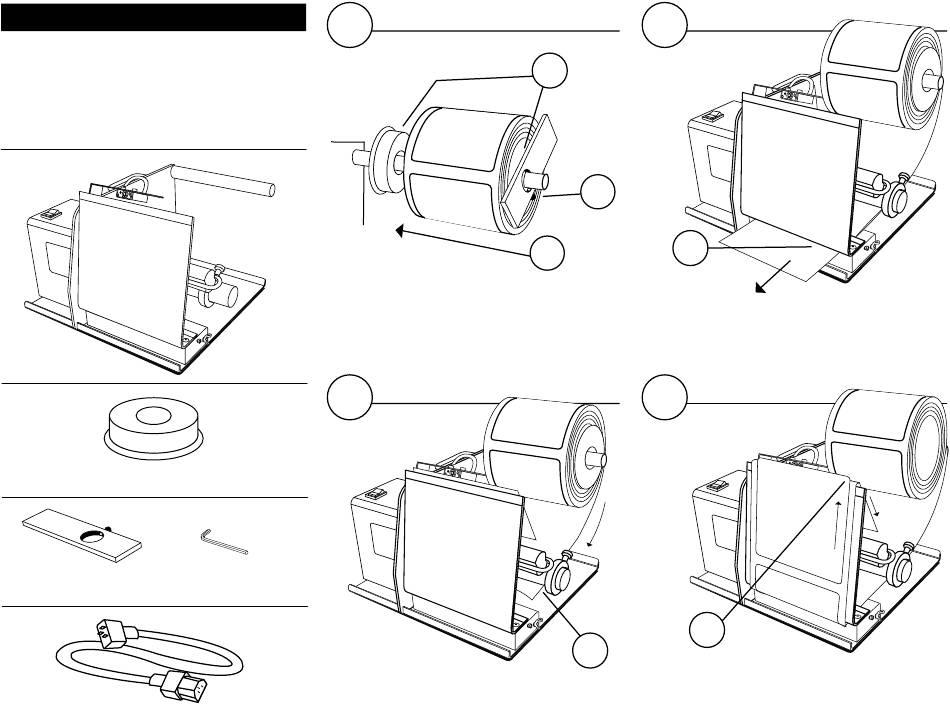

LD5500, LD7500
Electric Label Dispenser
ITEMS INCLUDED
Dispenser
Core Holders (2)
Material Guide
Power Cord
1
Load Label Roll
A: Insert core holders
of your label roll
B: Slide loaded roll onto the reel hanger bar
C: Slide material guide onto reel hanger
bar, tighten lightly using tension screw
2
Feed Labels
Hex Wrench
A: Pull label liner under guide bar
between guide rings
3
Feed Label Tape
A
Under Brush
C
B
into each side
(2)
A: Feed label liner in between brushes
4
Separate Liner
A
A: Pull label liner over strip plate
A
and strip plate
A
separating liner from label
Advertisement
Table of Contents
Related Manuals for Start Label Dispensers LD7500
Summary of Contents for Start Label Dispensers LD7500
- Page 1 LD5500, LD7500 Electric Label Dispenser Feed Label Tape Load Label Roll Under Brush ITEMS INCLUDED A: Insert core holders into each side of your label roll A: Feed label liner in between brushes B: Slide loaded roll onto the reel hanger bar and strip plate C: Slide material guide onto reel hanger bar, tighten lightly using tension screw...
- Page 2 Q8.2 LD5500, LD7500 Remove Lock Rod Adjust Sensor LD5000 A: Loosen wingscrew (on side) to adjust sensor plate B: Point sensor towards edge of label A: Slide lock rod off of take-up hub C: Tighten wingscrew to secure in place Secure Liner Plug In Turn On A: Connect power cord (in back)
