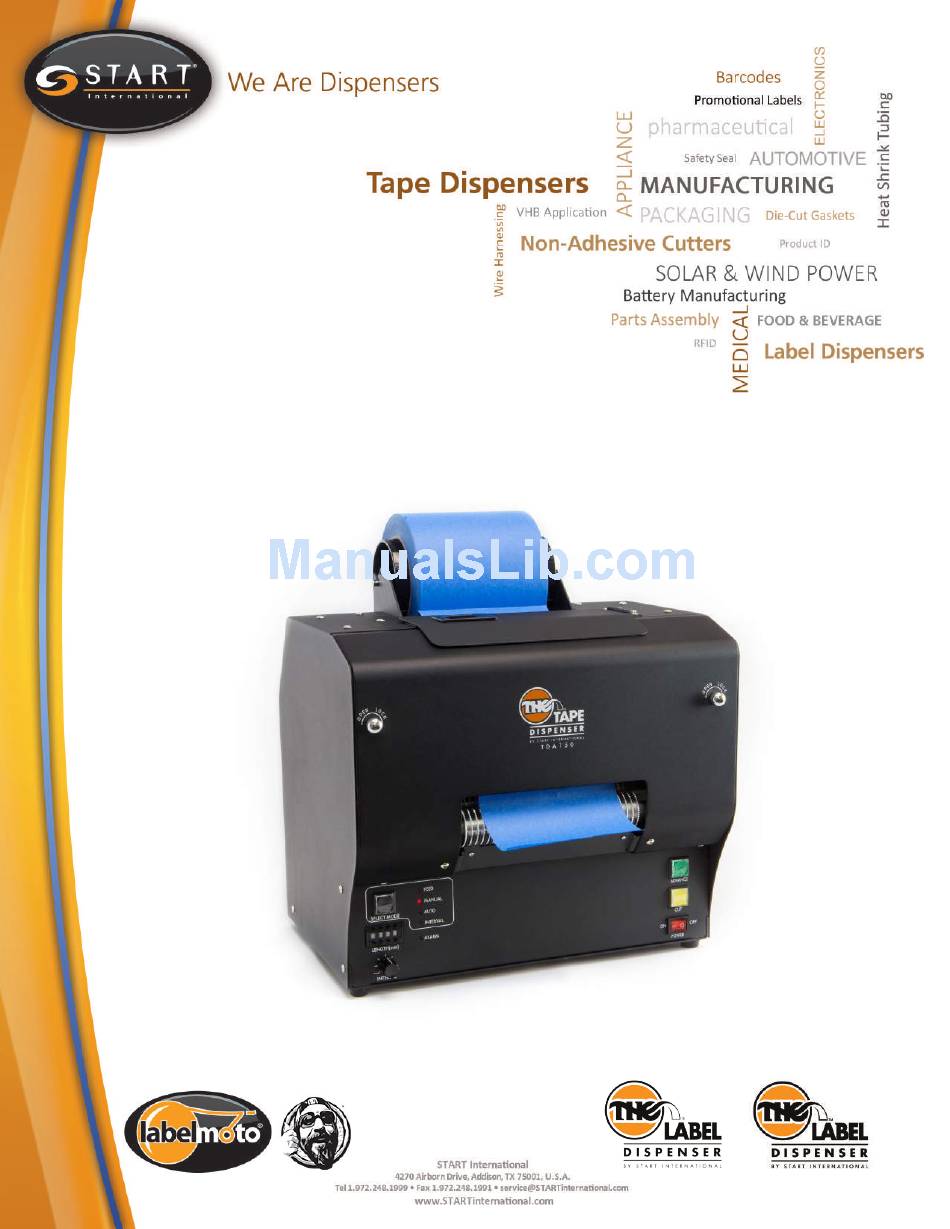

- Page 1 TDA150 Series...
-
Page 2: Table Of Contents
START will issue an RMA (Return Material Authorization) for the repair. Return machine to START by freight, insured and prepaid. START will notify the customer if there is a repair charge.A $25.00 evaluation charge will apply to all non-warranty repairs, which will be applied to repair change. -
Page 3: Features
FEATURES • When using automatic feed, remove the first piece of tape, the unit will automatically feed and cut the next piece at the preset length. • Feed length can be easily set using thumbwheel controls. • Hold down shaft increases accuracy by maximizing tape adhesion to the feed rollers. •... -
Page 4: Setup Operations
SET-UP 1. With Power Switch off, plug power cord into dispenser and then into wall outlet. 2. Make sure machine is grounded properly. 3. Set the Tape Length Display to 200mm. 4. Set the Auto/Manual Switch to Manual. 5. Turn dispenser Power Switch on, switch will be illuminated. 6. -
Page 5: Quick Start Guide
QUICK START GUIDE Remove hold down shaft guide from unit. Re-insert hold down shaft into guide. -
Page 6: Troubleshooting
Replace #279 blade with #279S serrated blade. PREVENTIVE MAINTENANCE WEEKLY – Wipe feed rollers and blade with proper solvent to remove adhesive build- MONTHLY – Apply silicon oil (available from Start International) to #242 blade roller. Inspect pressure rollers and cutting blade for wear. -
Page 7: Exploded Views
EXPLODED VIEWS... - Page 8 EXPLODED VIEWS...
- Page 9 EXPLODED VIEW...
- Page 10 EXPLODED VIEWS...
- Page 11 EXPLODED VIEWS...
