TM
START International
START Japan Corporation
4270 Airborn Dr.
1-26-14 Toshin-Cho
Addison, TX 75001, USA
Itabashi-ku
Tel 972.248.1999
Tokyo, Japan
Fax 972.248.1991
Tel 81.3.3554.5608
info@startinternational.com
Fax 81.3.5966.9591
www.startinternational.com
japan@startinternational.com

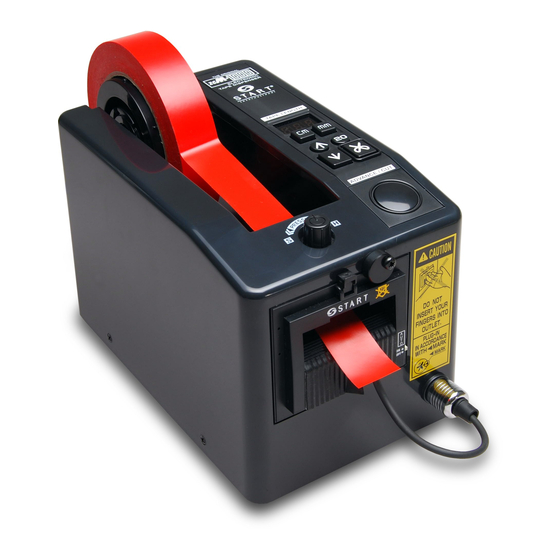

ZCM
02/03
1000, 1500 (Last 3 Pages)
ZCM
2000
TM
Advertisement
Table of Contents
Related Manuals for Start ZCM 1000
Summary of Contents for Start ZCM 1000
-
Page 1: Warranty Information
1000, 1500 (Last 3 Pages) 2000 START International START Japan Corporation 4270 Airborn Dr. 1-26-14 Toshin-Cho Addison, TX 75001, USA Itabashi-ku Tel 972.248.1999 Tokyo, Japan Fax 972.248.1991 Tel 81.3.3554.5608 info@startinternational.com Fax 81.3.5966.9591 02/03 www.startinternational.com japan@startinternational.com... -
Page 2: Notes
NOTES Part Number Description Drawing Roller Pressure ZCM1000P517 Unit 2 ZCM1000P518 Front Holder 3 Unit Do not leave the tape Do not drop the tape Do not use volatile liquids dispenser in direct dispenser or subject it to (thinner, benzine, etc.) to ZCM1000P519 Front Holder 3 heavy shocks. -
Page 3: Description Of Parts And Functions
DESCRIPTION OF PARTS AND FUNCTIONS Part Number Description Drawing TAPE LENGTH Display Gear Cover 2 Unit ZCM1000P433 SIZE Keys (for cutter) RESET Key REVERSE Key REEL Motor Unit 4 12VDC ZCM1000P435 CUT Key Red & Brown PRESSURE FEED Key Knob AUTO Key ZCM1000P501 Left Plate Unit 2... -
Page 4: Operation
OPERATION Part Number Description Drawing Using Automatic Feed: 1. Plug in power cord and turn unit on. ZCM1000P406 Flat Gear Shaft 14 2. Set tape on the center of reel and stick the end of the tape onto the metal feed roller. -
Page 5: Precautions
OPERATION (CONT'D) Part Number Description Drawing To Replace Cutter Unit Turn off sensor and power before removing cutter unit. Pull sensor plug out, ZCM1000P250 Switch Button 3 (20) then pull cutter unit forward while pressing the knob on the top of the unit (Fig. -
Page 6: Specifications
SPECIFICATIONS Part Number Description Drawing Model ZCM1000 ZCM2000 Screw Display 3-Digit LED ZCM1000P228 .28”-2” (7-50mm) Applicable Tape Width Cross Tip Core Diameter 3” (optional 1”, 1.25”, 1.5”) .79”-39” (20-999mm) + .040” Tape Length Set Limit Tapping Screw ZCM1000P229 Memory Settings Cross Tip Drive DC Motor for Tape Feed and Tape Cut... -
Page 7: Preventive Maintenance
PREVENTIVE MAINTENANCE Part Number Description Drawing WEEKLY - Remove cutting head and clean, and look for missing roller rings. Replace as needed. Tapping Screw ZCM1000P150 MONTHLY- Remove blade spring and blades to inspect cutter liners. Cross Tip Place one drop of silicone oil on each liner, or replace if worn. -
Page 8: Exploded Views/Parts Breakdown
EXPLODED VIEWS / PARTS BREAKDOWN Part Number Description Drawing REMOVE BODY COVER AND BOTTOM PLATE ZCM1000P115 Bottom Plate ZCM1000P116 Rubber Feet ZCM1000P118 Power Switch Fuse ZCM1000P120 1Amp ZCM1000P121 Fuse Holder ZCM1000P124 Plate ZCM1000P134 Main Board Shaft CHANGE THE SEPARATING ROLLER Separating Roller ZCM1000P136 With Roller Rings... - Page 9 EXPLODED VIEWS / PARTS BREAKDOWN Part Number Description Drawing FRONT HOLDER STRUCTURE ZCM1000P101 Main Unit Cover ZCM1000P102 Face Decoration Plate ZCM1000P105 Clear Plate ZCM1000P106 Pressure Knob ZCM1000P107 3" Reel Unit ZCM1000P108 1" Reel ZCM1000P109 1-1/4" Reel ZCM1000P110 1-1/2" Reel ZCM1000P111 Transformer 110V ZCM1000P112 Transformer 220V...
- Page 10 EXPLODED VIEWS / PARTS BREAKDOWN EXPLODED VIEWS / PARTS BREAKDOWN FEED STRUCTURE BOTTOM PLATE WIRING BEARING - 2 CONTROL PANEL CONNECTIONS REMOVING SENSOR UNIT Numbers in balloons represent the last three digits in replacement part number. Numbers in balloons represent the last three digits in replacement part number. When ordering, ask for ZCM1000P_ _ _.
- Page 11 EXPLODED VIEWS / PARTS BREAKDOWN NOTE: Parts grouped within broken lines can be purchased as complete assemblies. Corresponding Parts: ZCM1000 ZCM2000 102 .....605 246 .....608 247 .....609 248 .....610 249 .....611 250 .....613 251 .....612 504 .....601...
-
Page 12: Table Of Contents
ZCM1500P131 Tape Magnetic Guide Start International warrants all parts on ZCM series tape dispensers against defects in design, materials and workmanship for a period of 180 days. Parts excluded from this are: cutting blades, silicone rollers and cutter liners; these parts are considered “wear parts”. Labor to replace...
