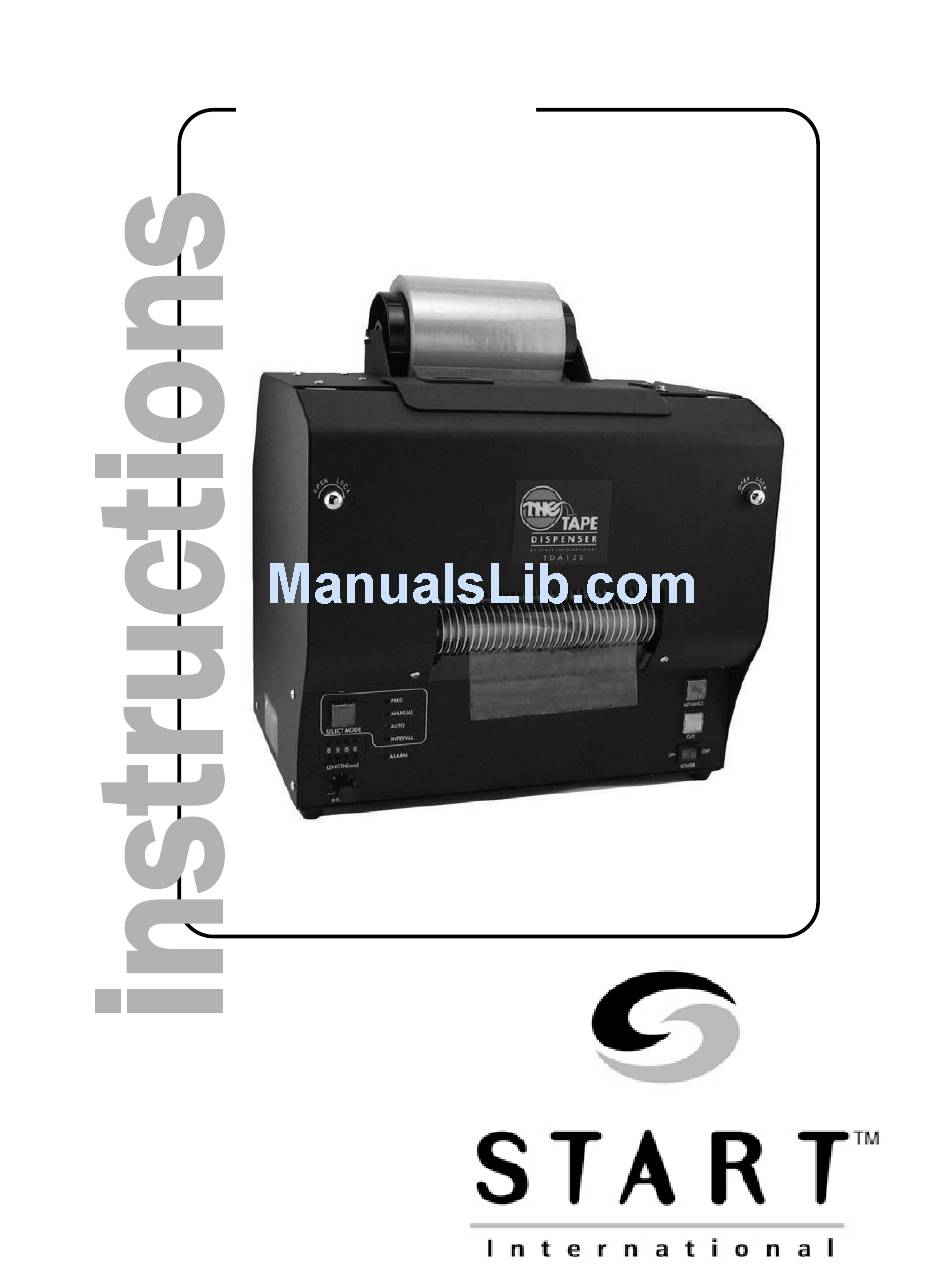

Page 1 TDA150...
Page 2 WARRANTY POLICY FOR TDA150 TAPE DISPENSER START International warrants all parts on the TDA150 tape dispenser against defects in design, materials and work- manship for a period of 360 days. Parts excluded from this are: cutting blade, springs, pressure rollers; these parts are considered "wear parts".
Page 3 NOTES • Do not leave tape dispenser in direct sunlight. • Do not use in humid or dusty locations. • Wipe with dry cloth only. • Do not insert your fingers into the tape outlet. • Do not drop the dispenser or subject it to heavy shock. FEATURES •...
Page 4 Core Accuracy Tape Feed Type Length Weight Dimensions Outside Diameter** of Cut* Cutter Setting Dia. Þ TDA150 .25 to 5.9" 2 to 394" 9" 3" +/- .04" Automatic Automatic Digital 38lbs. 10"(L) x 13"(W) x (6 to 150mm) (50 to (251mm) (76.2mm)
Page 5 • Replace #279 blade with #279S serrated blade. PREVENTIVE MAINTENANCE WEEKLY – Wipe feed rollers and blade with proper solvent to remove adhesive build-up. MONTHLY – Apply silicone oil (available from Start International) to #242 blade roller. Inspect pressure rollers and cutting blade for wear.
Page 6 4270 Airborn Drive 1-26-14 Toshin-Cho Addison, TX 75001, USA Itabashi-ku Toll Free 800.259.1986 Tokyo, Japan Tel 972.248.1999 Tel 81.3.3554.5608 Fax 972.248.1991 Fax 81.3.5966.9591 info@startinternational.com japan@startinternational.com www.startinternational.com 04/07...
