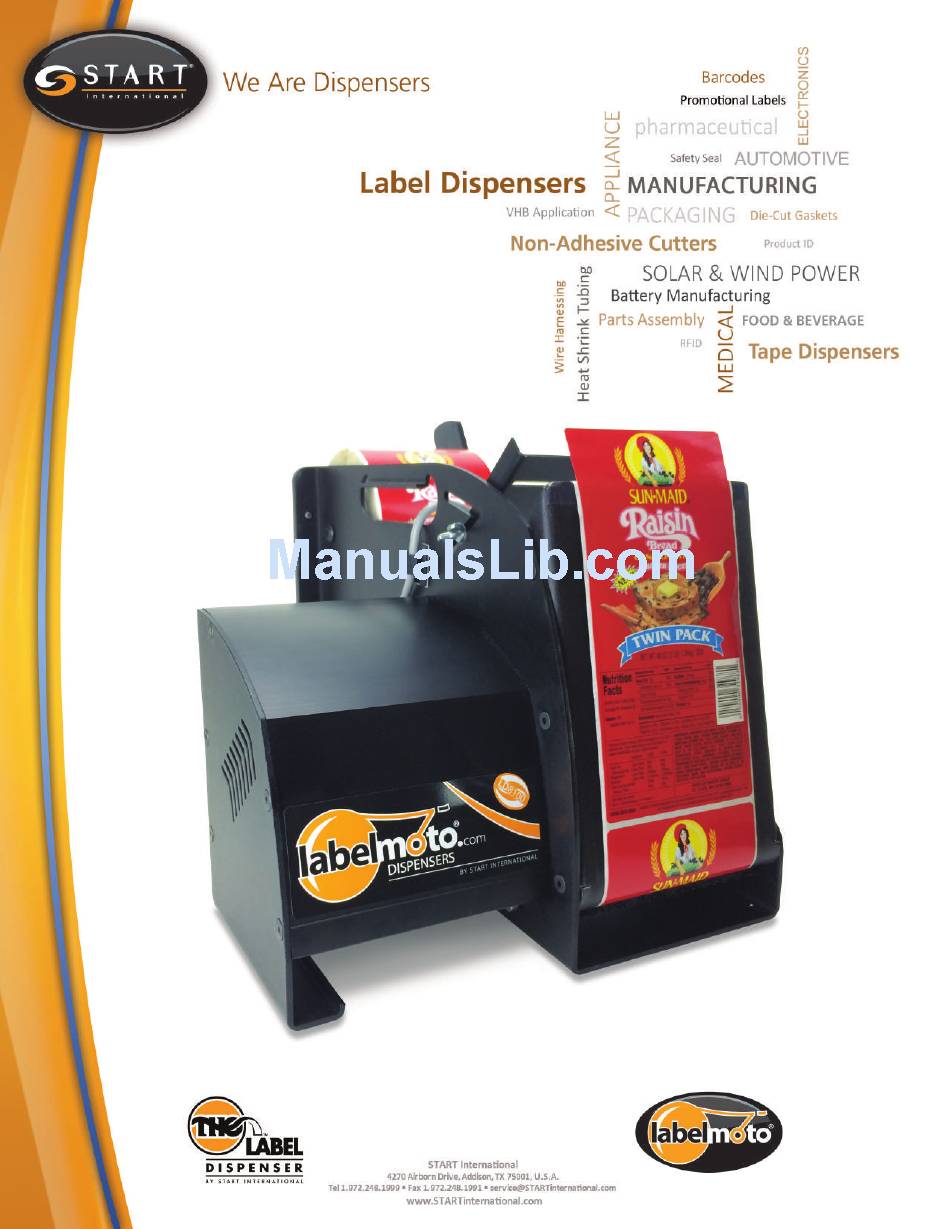

- Page 1 LD8000 Series LD8025 LD8050 LD8100...
- Page 2 Page 7 WARRANTY POLICY FOR LD SERIES LABEL DISPENSERS START International warrants all parts on LD8000 series label dispensers against defects in design, materials and workmanship for a period of 1080 days. Labor to replace defective parts will be performed at no charge for the first 360 days after date of purchase.
- Page 3 MAINTENANCE Turn machine off when not in use. Remove liner material from take-up hub at approximately 3” in diameter or if motor appears to be straining. Do not operate machine without covers in place. Do not operate if inspection reveals a damaged power or sensor cord. EXPLODED VIEW...
- Page 4 3. If available, date purchased and copy of invoice or packing slip. START will issue a RMA (Return MerchandiseAuthorization) for repair. Return machine to START, insured and prepaid. START will notify the customer if there is a repair charge. SPECIFICATIONS: Model#...
- Page 5 SET-UP INSTRUCTIONS...
- Page 6 SET-UP INSTRUCTIONS...
- Page 7 ADJUSTMENTS Hold Down: Using the upper thumbscrew on the side of the machine, adjust the hold down for tensioning. For best results, labels should be pressed firmly against the strip plate. However, if the labels are held too tightly, they will cause excessive drag on the motor. Photosensor: The photosensor can be adjusted in any direction by using the lower thumbscrew on the side of the machine and the thumbscrew underneath the photosensor bracket.
