Battery Installation - Logiblocs Super Inventor's Inventors Manual

You will need four 1.5 V AA (LR6) batteries.
Open the BATTERY BOX lid by loosening the large screw
underneath with a screwdriver or coin and then lift the lid.
Put the batteries in, starting with the two centre ones. It is best
to put the flat end (-ve) of each battery in first, which depresses
the spring in the battery compartment.
Insert the two lugs into the holes and close the lid.
Do up the screw again. Do not tighten too much !
SCREW
(underneath)
FUSE REPLACEMENT
As an added safety feature there is a 1A fuse contained in the BATTERY
BOX and the BATTERY CONNECTOR (LBT/F2). If in the unlikely event this
gets broken you will need to obtain a replacement BATTERY BOX or
BATTERY CONNECTOR. Please send the old one back to us, enclosing
your own address and tell us what you think caused the fuse to blow.

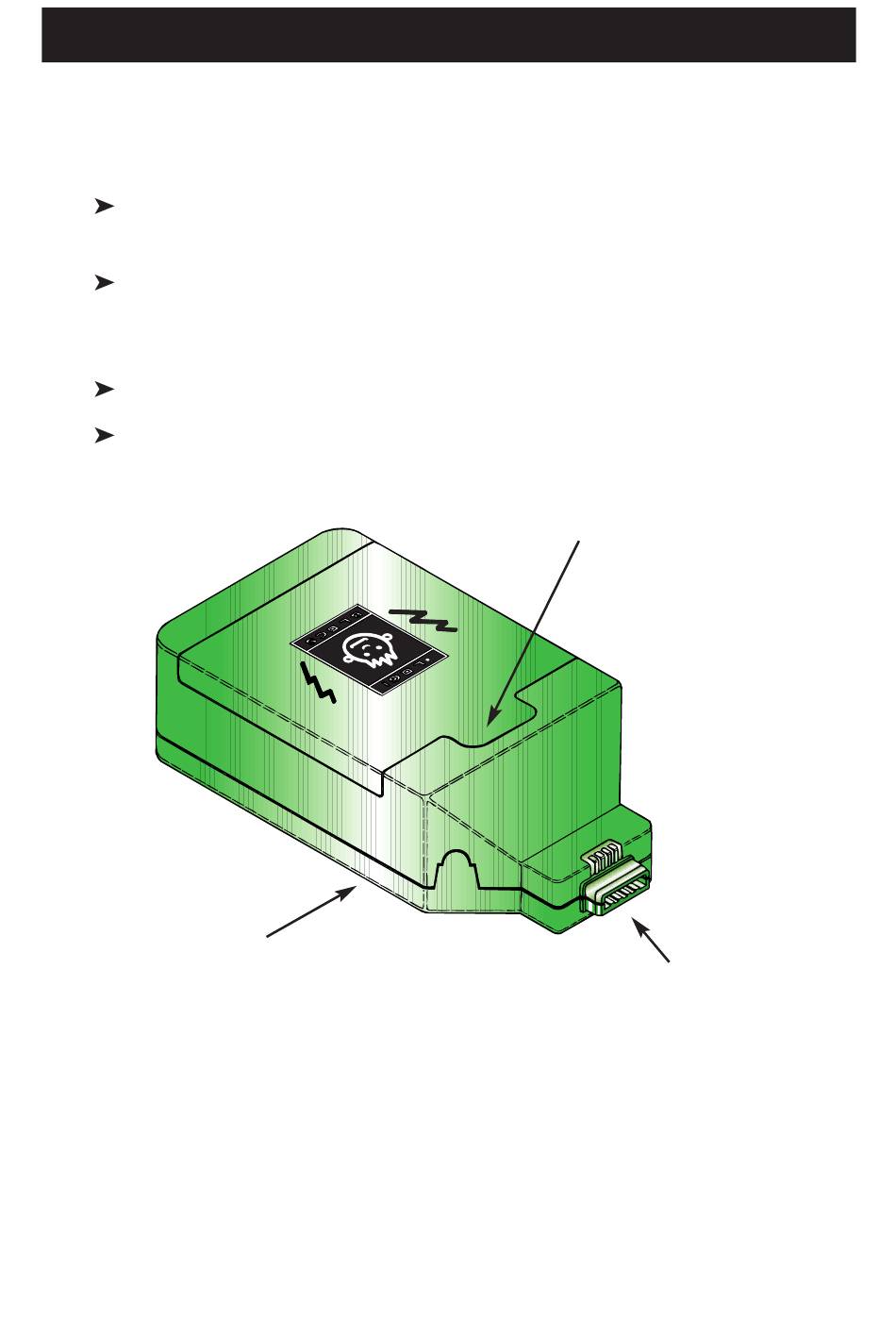

BATTERY INSTALLATION
