Initial Inspection - MOXTEK MAGNUM X-ray Source Manual

Initial Inspection

When a MAGNUM tube is received, it should be unpacked and inspected as soon as possible. A standard MAGNUM tube is
packaged in a brass shield. This shield is connected to a high voltage power supply via two white high voltage wires and one
green ground wire (Figure 1). Inspect the high voltage power supply and the tube shield assembly for any damage that may have
occurred during shipping. If a tube has been damaged, please contact Moxek immediately. The serial number is located on the
high voltage power supply. Please do not touch the beryllium window. Do no pull on or bend the high voltage wires.
High Voltage
Grounded Wire
Power Supply
Source and Shield
Handling
Care should be taken when handling the tube and the high voltage power supply. Lift the power supply and the tube with both
hands to avoid damaging the high voltage wires or potting material. Prevent the tube from striking any surface. Care must be taken
to not damage the beryllium window or high voltage wires.
Table 1 Pin Assignment
Pin Assignment for Ribbon Wire DB9 Connector
Function Pin # I/O Value
Input power N/A
+6 to +12 V
Input power 1
+6 to +12 V
Ground 2
Ground
HV control 3
+0.32 V to +4.0 V
HV enable 4
0.0 V or +5 VTTL
Current 5 0.0 V or +5 VTTL
Monitor
Ground 6
Ground
Current 7 0.0 V or +4 V
Control
Filament 8
0.0 V to +5 V
ready
HV monitor 9 +0.32 V to +4 V
MOXTEK
Assembly

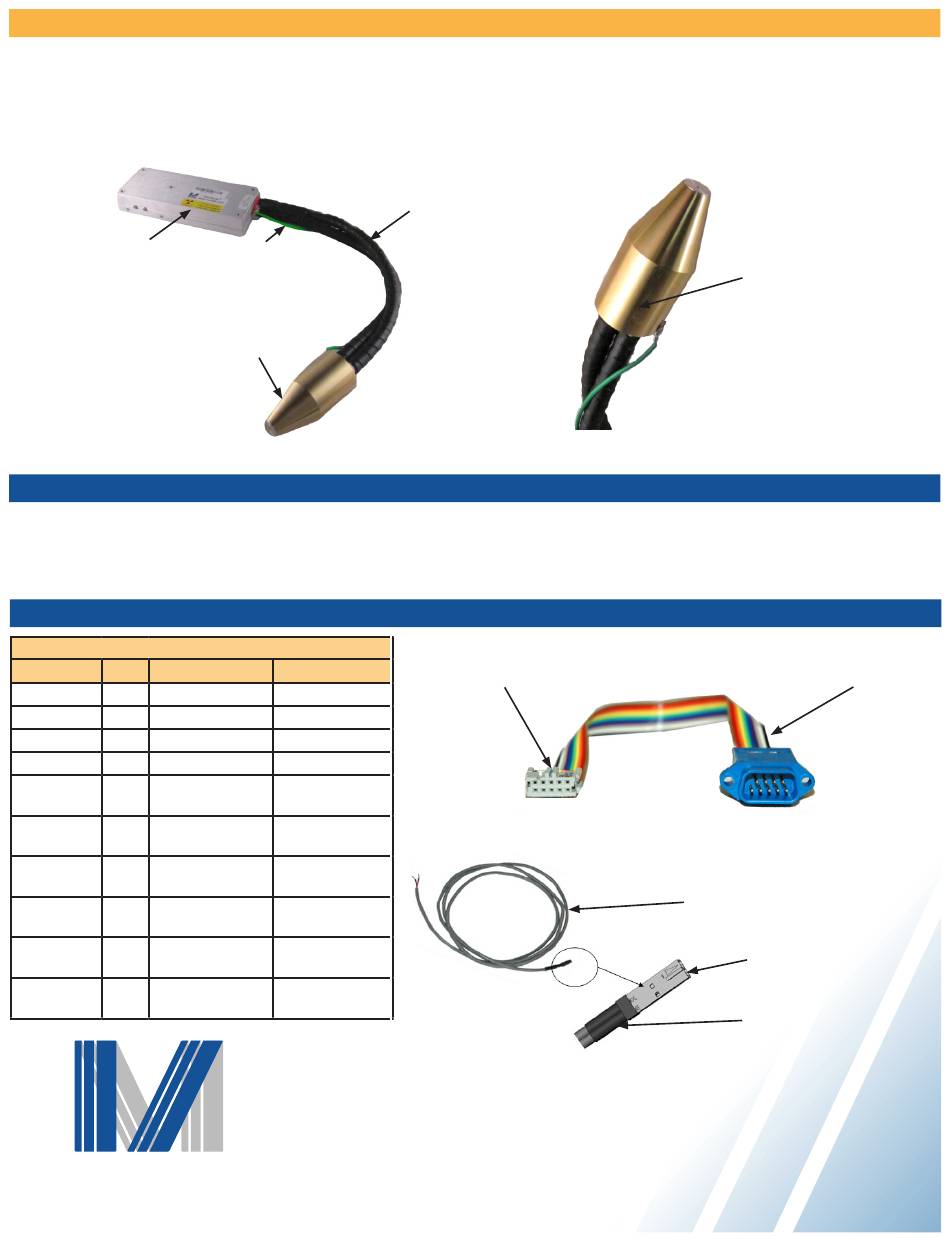

Figure 1 MAGNUM Source
Response
Input power
Input power
Ground
-10 to 50 kV
0 Disabled, +5
input Enabled
-4 kV to -50 kV
output
0 Not ready +5
Ready
0 Disabled, +5
Enabled
Proportional to -4
output kV to -50 kV
Proportional to 0
output to 200 µA
®
High Voltage
Wire
Manufacturer: 3M
Part Number: 3473-7600
Figure 3: Ribbon Cable (ASM00362)
Figure 2 MAGNUM Source
Temperature
Manufacturer: OKI Electrical Cable
Manufacturer: BELDEN
Part Number: R216-2500
Figure 4: 2-Pin Secondary Cable
(ASM00364)
Max anode shield
temperature= 100ºC
Part Number: R000-50-ND
Manufacturer: MOLEX
Part Number: 50-57-9202
Manufacturer: MOLEX
Part Number: 516-02-0103
TUB-MAN-1001, Rev A
Subject to technical change without notice
