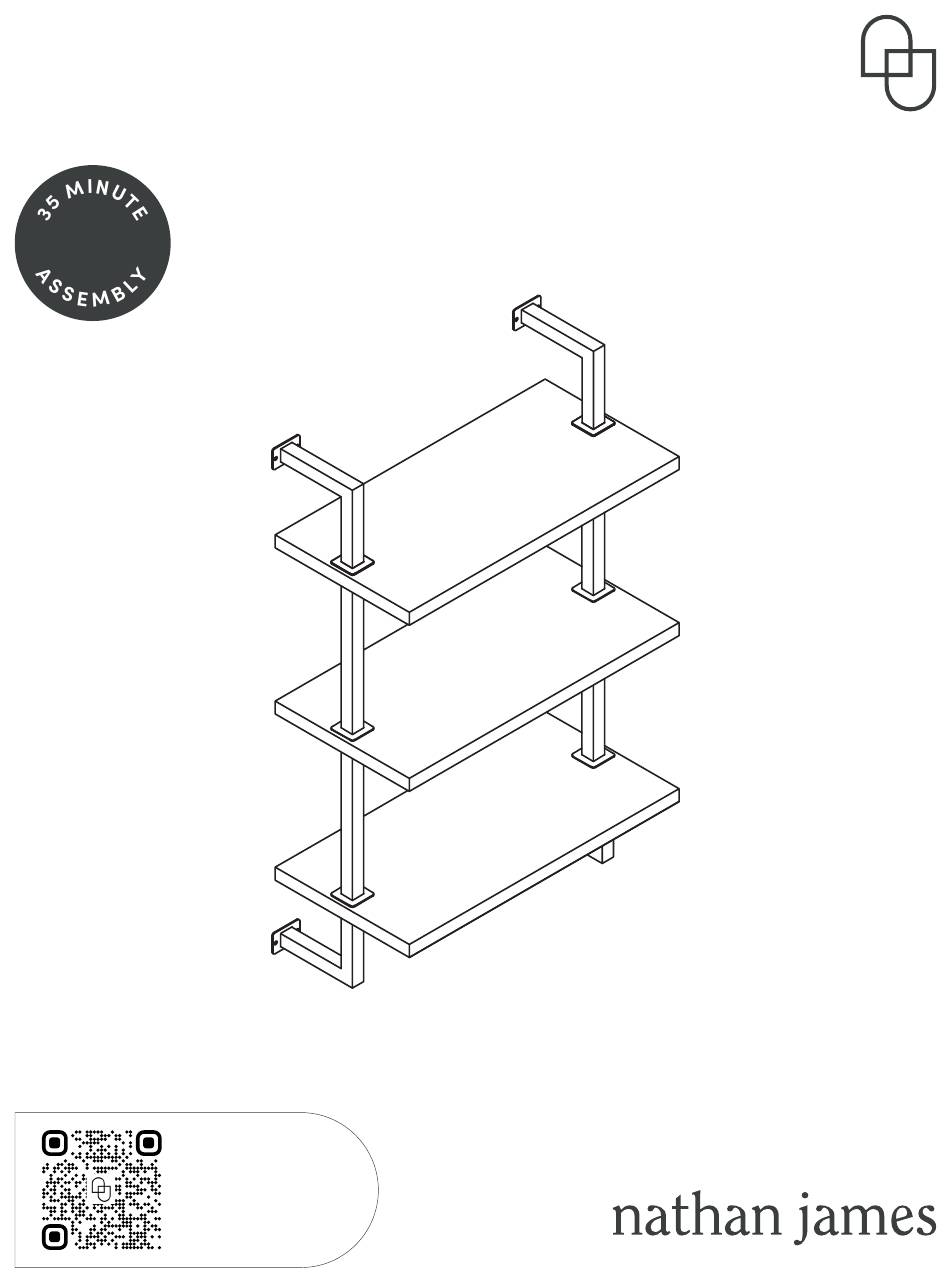

- Page 1 Let’s build the Theo Floating Shelf SKU 66201 Scan me! Inspiration Digital Instructions Free Lifetime Warranty 22-1101...
- Page 2 Ok, let’s What’s included get rolling Description Bookcase Shelves This should be easy, just follow Bookcase Frame Support our instructions and you will be (top with wall mount) back to Netflix in no time. Bookcase Frame Support (for shelves joint) Estimated time for assembly D Bookcase Bottom Support 35:00...
- Page 3 The goods IMPORTANT 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes. 2. Do not over tighten screws and bolts to avoid stripping. 3. Please use hand tools to assemble this product. Do not use power tools.
- Page 4 Step 1 Let’s get this thing fired up! Attach the frame supports to the shelves.
- Page 5 Step 2 We told you it was easy! Now is a great time to invite a friend over and have them help you secure the bookcase to the wall. Don’t skip our important tip section below! IMPORTANT TIP To prevent parts from breaking while placing the bookcase unit upright, be sure to: 1) Have at least 2 people grab the bookcase on each side prior to lifting to an upright position.
- Page 6 Step 3 Choose your desired location on the wall, have your friend hold the bookcase in place and use a pencil to mark where the anchor will go. For non-drywall applications, follow the immediate steps. For drywall applications, skip ahead to page 9.
- Page 7 Step 3 (cont.) Non-drywall Application Let’s get this bookshelf attached to your wall! Friendly reminder: the following steps are for non-drywall application. If you have drywall, skip to Page 9.
- Page 8 Step 3 (cont.) Non-drywall Application Mark it Chose your desired location on the wall, have your friend hold the bookcase in place and use a pencil to mark where the anchors will go. 1/4” Drill bit Move bookcase to the side and following the mark you just made.
- Page 9 Step 3 (cont.) Drywall Application Mark it Chose your desired location on the wall, have your friend hold the bookcase in place and use a pencil to mark where the anchors will go. 5/16” Drill bit Move bookcase to the side and following the mark you just made.
- Page 10 Step 3 (cont.) Drywall Application Hello Team Drywall! Take a look at the following illustration and then flip over to the next page for a closer look at how to use drywall anchors!
- Page 11 Step 3 (cont.) How to use drywall anchors 1. Drill hole with 5/16” bit 2. Pinch and insert 3. Begin tightening 4. Tighten to 100%...
- Page 12 Step 4 The hard part is over! Align your bookshelf with the wall anchors and tighten to 100%. Lastly, tighten bottom screws to secure. Tip from a friend to a friend: Tighten the screws to about 90% to ensure that all screws are lined up with their respective anchor.
- Page 13 No heartburn, when we handle the return Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle. Our way Their way Give us a call Re-package item Replacement Schedule pick up Track package Replacement...
-
Page 14: Proper Use
Any modifications will present the risk of creating significant safety Nathan James and its parent companies cannot issues which NJ will not be responsible for. be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product. - Page 15 If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase. Brooklyn Burdon Founder, Nathan James...
