- Page 2 ©2020 OBSIDIAN CONTROL SYSTEMS all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. Obsidian Control Systems logo and identifying product names and numbers herein are trademarks of ADJ PRODUCTS LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
C O N T E N T S GENERAL INFORMATION LIMITED WARRANTY SAFETY GUIDELINES OVERVIEW INSTALLATION CONNECTIONS MAINTENANCE SPECIFICATIONS DIMENSIONS... -
Page 4: General Information
G E N E R A L I N F O R M AT I O N INTRODUCTION Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this device. These instructions contain important safety and use information. UNPACKING Every device has been thoroughly tested and has been shipped in perfect operating condition. -
Page 5: Limited Warranty
The sole responsibility of Obsidian Control Systems under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of Obsidian Control Systems. All products covered by this warranty were manufactured after January 1, 1990, and bare identifying marks to that effect. -
Page 6: Safety Guidelines
This device is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. OBSIDIAN CONTROL SYSTEMS is not responsible for injury and/or damages resulting from the misuse of this device due to the disregard of the information printed in this manual. -
Page 7: Overview
K E Y F E A T U R E S The Netron EN12 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. -
Page 8: Installation
CONSUMPTION OF OTHER MODEL DEVICES MAY EXCEED THE MAXIMUM POWER OUTPUT OF THIS DEVICE. CHECK SILK SCREEN FOR MAXIMUM AMPS. THE NETRON EN12 IS DESIGNED TO BE RACK-MOUNTED; HOWEVER, IT CAN BE USED STAND-ALONE, WHERE THE DEVICE MUST SIT ON A FIRM FLAT SURFACE. -
Page 9: Connections

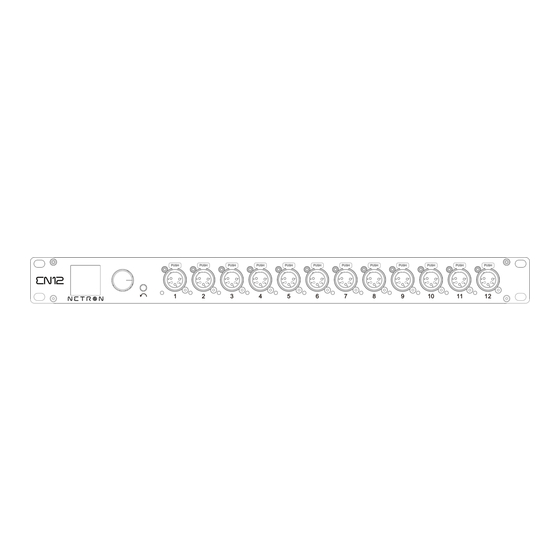

A C C O N N E C T I O N S The Obsidian Control Systems Netron EN12 is rated 100-240V 50/60Hz and accepts AC mains power over a range of 90-264V 50/60Hz. Do not connect it to power outside this range. - Page 10 C O N N E C T I O N S : F R O N T & R E A R P A N E L S F R O N T C O N N E C T I O N S (12) 5pin DMX/RDM optically isolated ports Ports are bidirectional for DMX In and Output Full color OLED display...
- Page 11 C O N N E C T I O N S : C O N T A C T C L O S U R E S 10 Inputs are provided that can be mapped to various functions of the EN12. The inputs are simple dry contact closures and are provided in ten pairs of trigger and ground connections.
-
Page 12: Maintenance
M A I N T E N A N C E The Obsidian Control Systems Netron EN12 is designed as a rugged, roadworthy device. The only required service is occasional cleaning. For other service related concerns, please contact your Obsidian Control Systems dealer, or visit www.obsidiancontrol.com. -
Page 13: Specifications
S P E C I F I C A T I O N S Connections Front (12) 5pin DMX/RDM optically isolated ports Ports are bidirectional for DMX In and Output Full color OLED display Encoder w. Push to Select / Exit Button Back - (2) RJ45 network connections (1xPOE) - (10) Contact Closures (Terminal Block) -
Page 14: Dimensions
D I M E N S I O N S 6.33” [160.8mm] 1.73” [44mm] 5.76” [146.4mm]...
