Sun Microsystems Oracle StorageTek SL48 Getting Started page 2

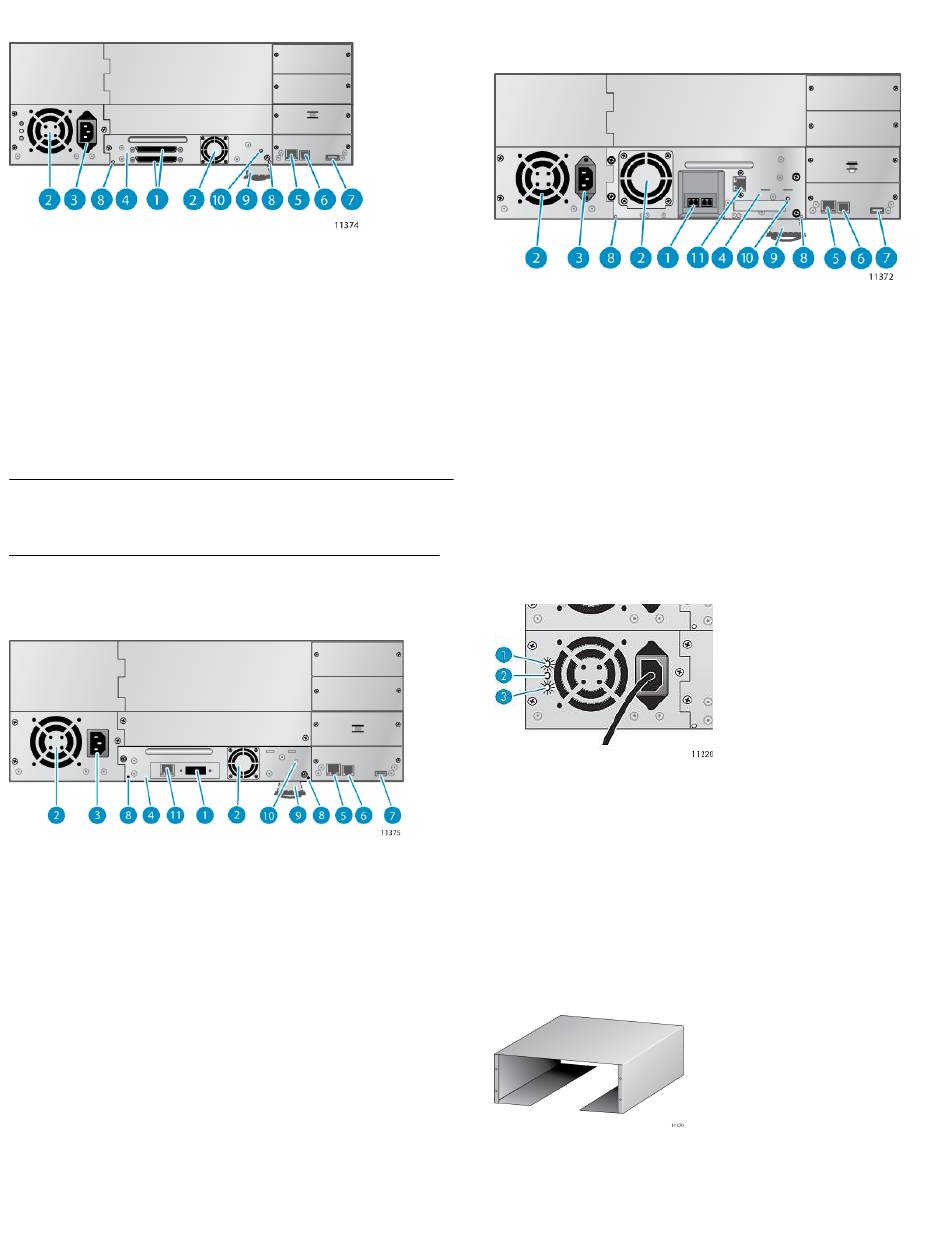

Back panel overview: parallel SCSI
1. 68-pin HD parallel SCSI
connectors
3. Power connector
5. Ethernet port
7. USB port
9. Pull-out tab containing
product information
NOTE:
The overview of Libraries with full-height SCSI drives is similar to
that of Libraries with half-height SCSI drives, shown above.
Back panel overview: SAS
1. SAS port
3. Power connector
5. Ethernet port
7. USB port
9. Pull-out tab containing product
information
11. Tape drive Ethernet port
(LTO-5 only)
2. Fan
4. Tape drive assembly
6. Serial port (Factory use only)
8. Magazine release hole
10. Tape drive assembly LED
2. Fan
4. Tape drive assembly
6. Serial port (Factory use only)
8. Magazine release hole
10. Tape drive assembly LED
Back panel overview: Fibre Channel
(FC)
1. Fibre Channel ports
3. Power connector
5. Ethernet port
7. USB port
9. Pull-out tab containing product
information
11. Tape drive Ethernet port
(LTO-5 only)
Power supply LEDs
1. Blue AC power is connected.
2. Yellow Fan failure. The fan is running too slow or is defective.
3. Green The power supply is producing good power for the
Library.
Optional: Tabletop conversion cover
The Library should only be either installed into a rack with the enclosed
rails or installed into the optional tabletop conversion cover and set on
a flat surface.
Page 2
2. Fan
4. Tape drive assembly
6. Serial port (Factory use only)
8. Magazine release hole
10. Tape drive assembly LED
