Screw-Mounting

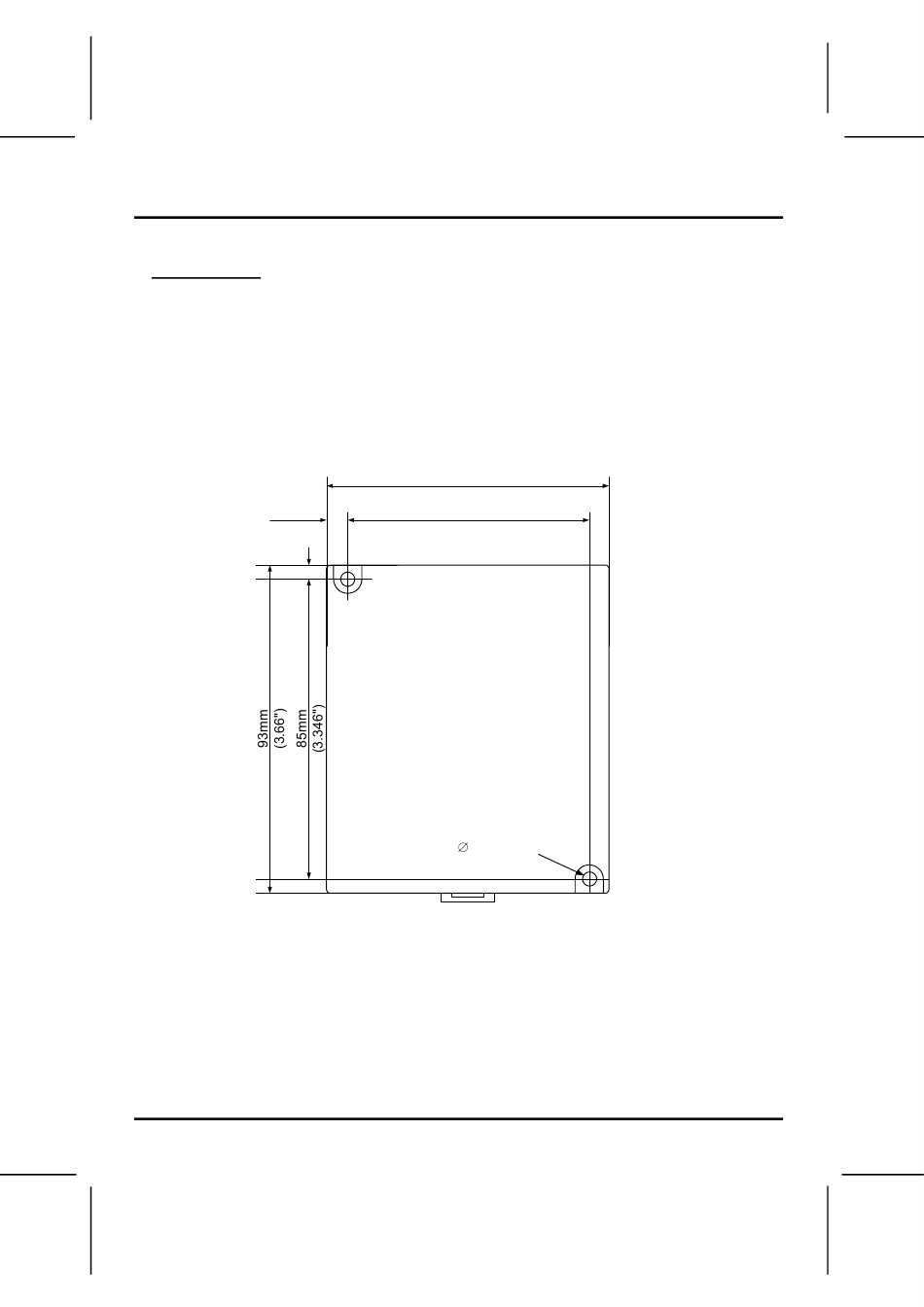

The figure below is not drawn to scale. It may be used as a guide for screw-mounting the module.
Mounting screw type: either M3 or NC6-32.
5.8mm
(0.228")
4mm
(0.16")
Unitronics Industrial Automation
I O - A T C 8
I / O E x p a n s i o n M o d u l e
80mm
(3.15")
68.4mm
(2.693")
4mm (x2)
(0.16")
3
