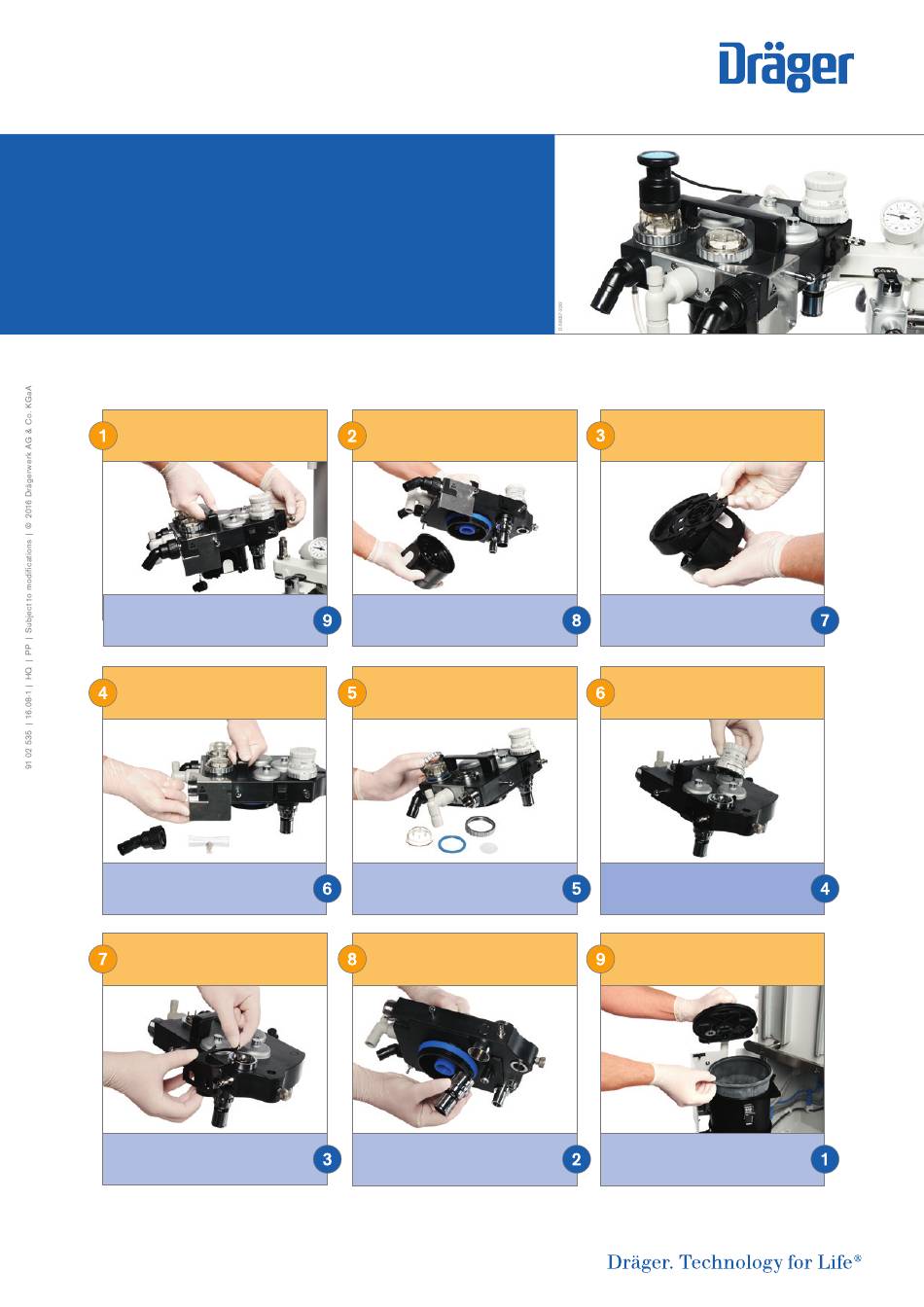

Dräger Fabius Family
Compact Breathing System
Disassembly/Assembly

Disassembly

Remove all hoses, cables
and the absorber, lift off the
breathing system.
Mount the breathing system,
connect all hoses, cables
and the absorber.
Loosen and pull out expiratory
port; pull out flow sensor.
Remove flow-sensor guard.
Attach flow-sensor guard. Insert
flow sensor, insert and tighten
expiratory port.
Remove hook for gas sample
line (optional).
Mount hook for gas sample line
(optional).
Unscrew CLIC adapter (optional)
or absorber canister. Inspect the
CLIC adapter seal.
Make sure all seals are in place.
Screw on CLIC adapter (optional)
or absorber canister.
Remove inspiratory and
expiratory valve.
Mount inspiratory and expiratory
valve.
Remove waste-gas port.
Mount waste-gas port.
Insert cleaning disc into
the adapter. Close adapter
until it snaps.
Remove cleaning disc from
the adapter. Close adapter
until it snaps.
Remove APL-valve.
Mount APL-valve.
Remove cover of ventilator
chamber, remove ventilator
diaphragm.
Insert ventilator diaphragm
and mount cover of
ventilator chamber.

Assembly
