Portable BACnet®/IP to MS/TP Router
Installation Instructions
TL-BRTRP-0
Applications
The Portable BACnet®/Internet Protocol to Master
Slave/Token-Passing (MS/TP) Router (TL-BRTRP-0)
routes information between BACnet/IP and MS/TP
networks. It is intended to be used as an interface
between the following applications:
•
FX CommPro BACnet software (running on your
computer) and FX Field Controllers fitted with
BACnet MS/TP communication cards
•
FX-PCT software (running on your computer) and
FX-PC Programmable BACnet Controllers
•
Controller Configuration Tool (CCT) software
(running on your computer) and BACnet Field
Equipment Controllers (FECs)
Note: CCT must be at Release 5.3 or later to support
the BACnet routing connection.
To configure the BACnet/IP to MS/TP router, use the
router webpage.

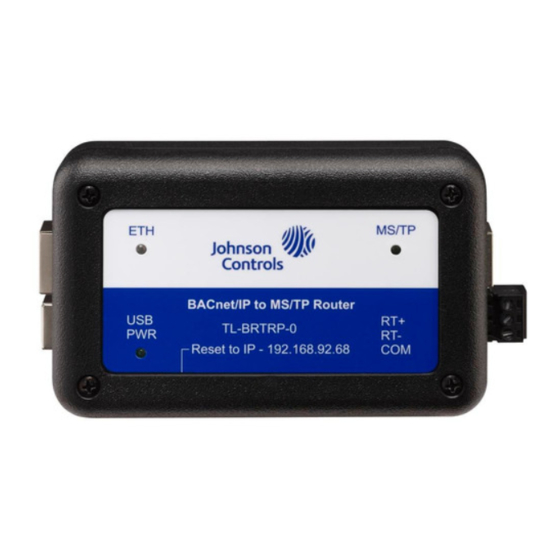

The router electronics exist in a small portable case
and are powered from the computer USB port;
however, no USB drivers are needed. The router
contains a 10/100 Mbps Ethernet Auto-Medium
Dependent Interface Crossover (MDIX) port and an
MS/TP compatible port.
The MS/TP port offers a choice of EIA-485 connectors
(an RJ-11 connector or a 3-pin terminal block with
removable plug) and is optically isolated from USB
power. The MS/TP port can address 127 devices. The
MS/TP port also supports up to 32 devices on a single
segment, and you can use repeaters to add additional
devices or to extend bus length. All MS/TP baud rates
are supported.
Installation
Parts Included
Included in this package are the following items:
•
BACnet/IP to MS/TP Router
•
BACnet/IP to MS/TP Router Installation
Instructions (Part No. 24-10414-2)
•
USB cable
Arrow.com.
Downloaded from
Refer to the
QuickLIT website
•
CAT5 Ethernet cable
Connectors
The BACnet/IP to MS/TP Router contains the
following:
•
3-pin (MS/TP) Pin Assignments (also explained
on the product label) - See Figure 1.
•
RJ-11 (MS/TP) Pin Assignments
•
2 RT-
•
4 COM
•
5 RT+
•
All other pins are unused. See Figure 2.
•
RJ-45 (Medium Dependent Interface [MDI]
Ethernet) Pin Assignments
•
1 TD+
•
2 TD-
•
3 RD+
•
6 RD-
•
All other pins are unused. See Figure 3.
Portable BACnet®/IP to MS/TP Router Installation Instructions
Part No. 24-10414-2, Rev. F
Issued April 2016
for the most up-to-date version of this document.
Figure 1: 3-Pin Connector
Figure 2: RJ-11 Connector
Figure 3: RJ-45 Connector
1
Advertisement
Table of Contents
Related Manuals for Johnson Controls TL-BRTRP-0
Summary of Contents for Johnson Controls TL-BRTRP-0
- Page 1 Applications • CAT5 Ethernet cable The Portable BACnet®/Internet Protocol to Master Connectors Slave/Token-Passing (MS/TP) Router (TL-BRTRP-0) The BACnet/IP to MS/TP Router contains the routes information between BACnet/IP and MS/TP following: networks. It is intended to be used as an interface •...
-
Page 2: Operation
USB Port Table 1: Custom RJ-11 Cable Connections The BACnet router has a USB 2.0, Type B receptacle Connector B Plug Connector A Plug which is only used to obtain power from a computer. Terminal 1+ Terminal 5+ No communications are supported via the USB port. Since no USB driver is required, disregard the Terminal 2- Terminal 2-... - Page 3 Table 3: LEDs 2. From the Network Tasks section, select View network connections. The Network Connection Name Description window appears. USB PWR The power LED glows when sufficient 3. Right-click Local Area Connection and select power is provided from the USB host. Properties.
-
Page 4: Configuring The Router
2. Use Table 5 as a reference when you configure the If the BACnet/IP to MS/TP router fails to operate within router parameters. its specifications, replace the unit. For a replacement unit, contact the nearest Johnson Controls® representative. Table 5: Router Parameters (Part 1 of 2) Name... - Page 5 Table 5: Router Parameters (Part 2 of 2) Name Description IP Subnet Enter a decimal value (0–30) for the IP subnet mask. This value is the number of bits with a 1 in the mask. Default Value = 24 IP Gateway Enter the default gateway for the IP stack.
-
Page 6: Technical Specifications
Technical Specifications BACnet to MS/TP Router Product Code TL-BRTRP-0 Electrical (USB) Input Voltage: 5 VDC (nominal) Input Current: 500 mA (maximum) Environmental Operating temperature: 0 to 50°C (32 to 122°F) Storage temperature: -40 to 85°C (-40 to 185°F) Relative humidity: 10 to 95%, noncondensing Signaling USB: 1.1 (2.0 compatible) - Page 7 507 E. Michigan Street, Milwaukee, WI 53202 Metasys® and Johnson Controls® are registered trademarks of Johnson Controls, Inc. All other marks herein are the marks of their respective owners. © 2016 Johnson Controls, Inc. Portable BACnet®/IP to MS/TP Router Installation Instructions Published in U.S.A.
