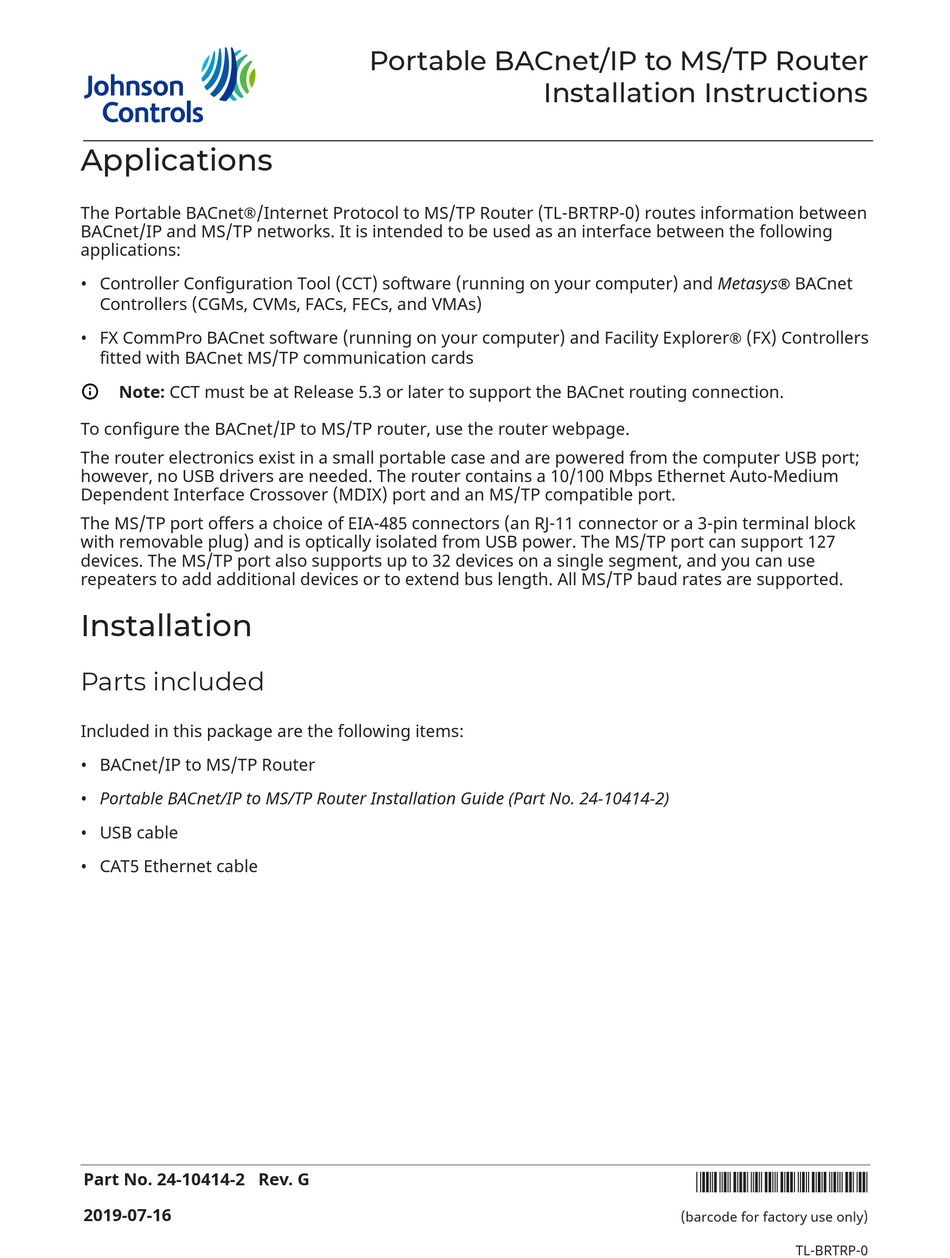

Applications

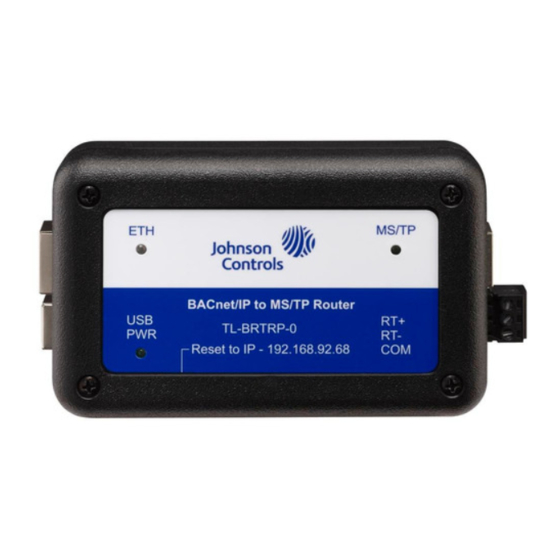

The Portable BACnet
/Internet Protocol to MS/TP Router (TL-BRTRP-0) routes information between
®
BACnet/IP and MS/TP networks. It is intended to be used as an interface between the following
applications:
• Controller Configuration Tool (CCT) software (running on your computer) and Metasys
Controllers (CGMs, CVMs, FACs, FECs, and VMAs)
• FX CommPro BACnet software (running on your computer) and Facility Explorer
fitted with BACnet MS/TP communication cards
Note: CCT must be at Release 5.3 or later to support the BACnet routing connection.
To configure the BACnet/IP to MS/TP router, use the router webpage.
The router electronics exist in a small portable case and are powered from the computer USB port;
however, no USB drivers are needed. The router contains a 10/100 Mbps Ethernet Auto-Medium
Dependent Interface Crossover (MDIX) port and an MS/TP compatible port.
The MS/TP port offers a choice of EIA-485 connectors (an RJ-11 connector or a 3-pin terminal block
with removable plug) and is optically isolated from USB power. The MS/TP port can support 127
devices. The MS/TP port also supports up to 32 devices on a single segment, and you can use
repeaters to add additional devices or to extend bus length. All MS/TP baud rates are supported.
Installation
Parts included
Included in this package are the following items:
• BACnet/IP to MS/TP Router
• Portable BACnet/IP to MS/TP Router Installation Guide (Part No. 24-10414-2)
• USB cable
• CAT5 Ethernet cable
Part No. 24-10414-2 Rev. G
2019-07-16
Portable BACnet/IP to MS/TP Router
Installation Instructions
BACnet
®
(FX) Controllers
®
*24104142G*
(barcode for factory use only)
TL-BRTRP-0
Advertisement
Related Manuals for Johnson Controls TL-BRTRP-0
Summary of Contents for Johnson Controls TL-BRTRP-0
- Page 1 Portable BACnet/IP to MS/TP Router Installation Instructions Applications The Portable BACnet /Internet Protocol to MS/TP Router (TL-BRTRP-0) routes information between ® BACnet/IP and MS/TP networks. It is intended to be used as an interface between the following applications: • Controller Configuration Tool (CCT) software (running on your computer) and Metasys BACnet ®...
- Page 2 Dimensions Figure 1: BACnet/IP to MS/TP router dimensions, in. (mm) Connectors The BACnet/IP to MS/TP Router contains the following: Table1: Connectors Assignment Image Assignment explained on the 3-pin (MS/TP) Pin product label. • 2 RT- • 4 COM RJ-11 (MS/TP) Pin •...
- Page 3 MS/TP port The MS/TP port uses an EIA-485 transceiver connected to both a 3-pin removable connector and an RJ-11 connector. The + and - lines of the EIA-485 transceiver tie to RT+ and RT- pins of both connectors. The COM pins of both connectors tie to the circuit ground of the EIA-485 transceiver. The port is electrically isolated from the USB power.
-
Page 4: Operation
IP address, gateway address, and netmask. After you use the reset switch, you need to reboot the router. Rebooting the router To reboot the router, unplug and then plug the USB cable on the router. Table3: Default address values Address type Default address IP Address 192.168.92.68... - Page 5 To configure the router, you need a computer with an Ethernet connection, router, and standard web browser. Note: Verify that the Use a Proxy Server for your LAN check box in Internet Explorer is not selected or you cannot connect to the router. This check box is located in the Internet Explorer Tools menu under Internet Options >...
- Page 6 Table5: PC address settings Address type Default address Subnet Mask 255.255.255.0 Default Gateway 192.168.92.1 Configuring the router To configure the router: 1. In your web browser address field, enter the router IP address: 192.168.92.68. 2. Use the following table as a reference when you configure the router parameters. Table6: Router parameters Name Description...
- Page 7 Table6: Router parameters Name Description MS/TP MAC Enter the 8-bit (0–127) decimal value for the MAC address of the router's MS/TP port. Each device on the local BACnet network must have a unique MAC address. Lower MAC address numbers are preferred. Default Value = 0 Note: Many supervisory class controllers (NxEs, SNx's and FX80s) are assigned MS/TP MAC Address 0;...
-
Page 8: Repair Information
Repair information If the BACnet/IP to MS/TP router fails to operate within its specifications, replace the unit. For a replacement unit, contact the nearest Johnson Controls representative. ® BACnet to MS/TP Router technical specifications Table7: BACnet to MS/TP Router technical specifications... -
Page 9: Product Warranty
This product is covered by a limited warranty, details of which can be found at www.johnsoncontrols.com/buildingswarranty. Points of single contact APAC Europe NA/SA JOHNSON CONTROLS JOHNSON CONTROLS JOHNSON CONTROLS C/O CONTROLS PRODUCT MANAGEMENT WESTENDHOF 3 507 E MICHIGAN ST NO. 32 CHANGJIJANG RD NEW DISTRICT... - Page 10 www.johnsoncontrols.com...
