Timeguard TPT44 Quick Start Manual

24 hour digital programmable thermostat

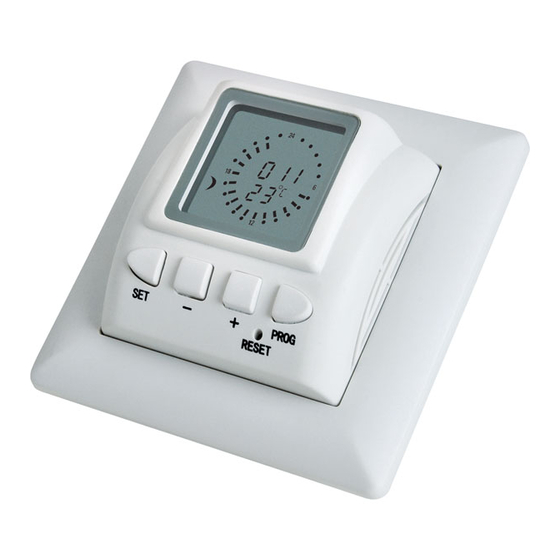

24 Hour Digital Programmable Thermostat

When first switched on this thermostat has a default program set, which is a 'comfort' mode

from 7:00am to 10:30pm

In case of a power cut, the unit will remember this default program but the time will need to

be reset.

To reset the unit to it's original default program use a narrow blunt object (such as the end of

a paper clip) to press and hold the "Reset" button through the small hole, then press and hold

"SET" then release "RESET".

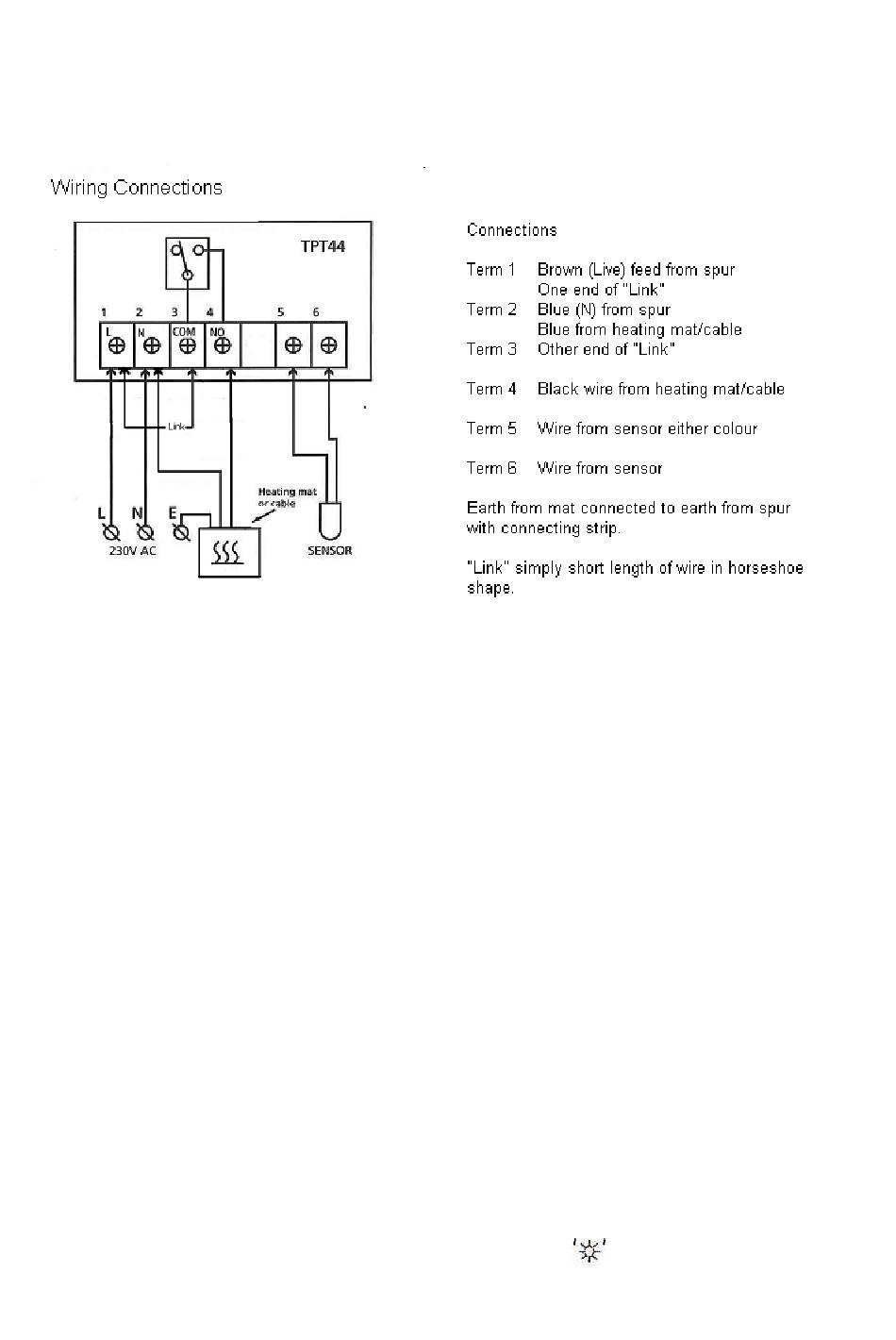

If using this control to regulate a bathroom heating mat please read section after

There are 5 functions that need to be set.

The correct time

The programme on and off times that you require

The comfort temperature (indicated on the unit as

temperature

Programming

Program Setting

), this is the peak

Table of Contents

Do you have a question about the TPT44 and is the answer not in the manual?

Page 1 24 Hour Digital Programmable Thermostat Programming When first switched on this thermostat has a default program set, which is a ‘comfort’ mode from 7:00am to 10:30pm In case of a power cut, the unit will remember this default program but the time will need to be reset.
Page 2 The set-back temperature (frost setting, indicated on the unit as ), this is the off peak temperature the control cannot be turned off completely Maximum floor temperature Pressing the ‘PROG’ button starts the setting process and pressing the ‘SET’ button moves it on to the next function to be set.
Page 3 5. Press ‘SET’ key once the symbol flashes then press ‘+’ or ‘−’ keys to set ‘Comfort’ temp from 10°C up to 30°C 6. Press the ”SET” button and the symbol flashes and set the ‘Set Back’ temp in the same way.
Page 4 B. Override for hour set periods. 1. Follow steps 1 & 2 as above. 2. Press ‘PROG’ key. ‘1H’ will be displayed. 3. Press ‘+’ or ‘−’ to set the number of running hours from 1 to 24. The indicator will again flash every 3 seconds.
