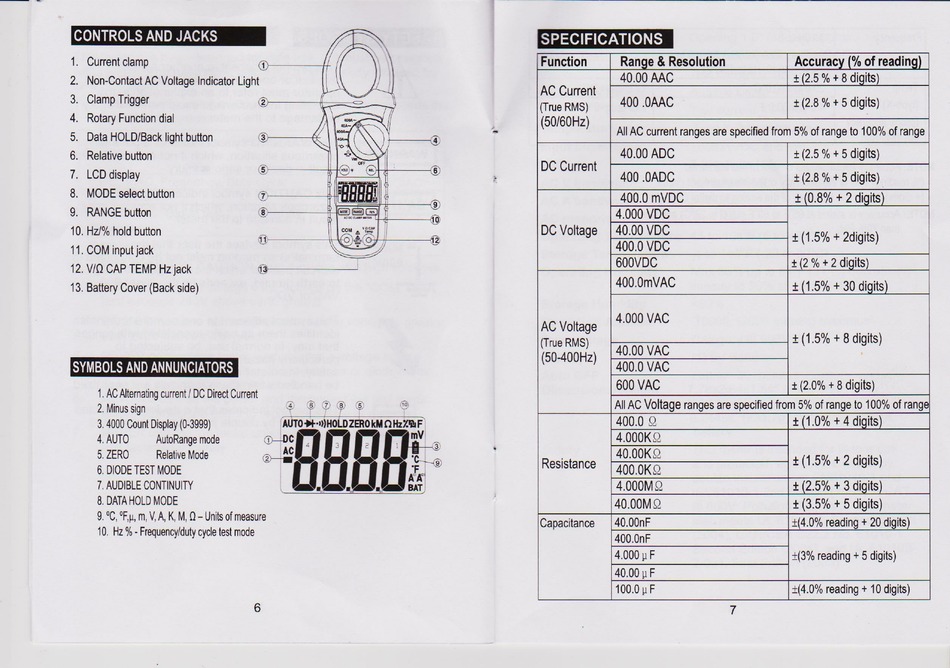

Specifications - Craftsman 19741 Owner's Manual

CONTROLS AND JACKS
Current clamp
Non-Contact AC Voltage Indicator Light
Clamp Trigger
Rotary Function dial
Data HOLD/Back light button
Relative button
LCD display
MODE select button
. RANGE button
10. Hz/% hold button
11. COM input jack
12. VIQ CAP TEMP Hz jack
13. Battery Cover (Back side)
BE Ue ests
1. AC Alternating current / DC Direct Current
2. Minus sign
3. 4000 Count Display (0-399)
4, AUTO AutoRange mode
5, ZERO Relative Mode
6. DIODE TEST MODE
7, AUDIBLE CONTINUITY
8, DATA HOLD MODE
9. °C, °F,u, m, V, A, K, M, Q - Units of measure
10. Hz % - Frequency/duty cycle test mode
) ©O® © @
a _
AUTO-Dt-)) HOLD ZERO kMQHz/F
V
SPECIFICATIONS
Function Range & Resolution Accuracy (% of reading)
40.00 AAC + (2.5 % + 8 digits)
AC Current : =
(True RMS) 400 .OAAC £(2.8%+5 digits)
een All AC current ranges are specified from 5% of range to 100% of range
40.00 ADC + (2.5 % +5 digits)
DC Current =
400 .OADC + (2.8 % +5 digits)
400.0 mVDC + (0.8% + 2 digits)
4.000 VDC
DC Voltage | 40.00 VDC 9 is
4000 VDC + (1.5% + 2digits)
600VDC +(2% +2 digits)
400.0mVAC + (1.5% + 30 digits)
AC Voltage eC £ (1.5% + 8 digits)
oO igi
ree) [aOR }
400.0 VAC
600 VAC + (2.0% + 8 digits)
AIlAC Voltage ranges are specified from 5% of range to 100% of range
400.0 & + (1.0% + 4 digits)
4.000K 2
Resistance
aoe -
+ (1.5% + 2 digits)
4.000M 2 + (2.5% + 3 digits)
40.00M2 + (3.5% + 5 digits)
Capacitance | 40.00nF +(4.0% reading + 20 digits)
400.0nF
4.000 1 F +(3% reading + 5 digits)
40.00 uF
100.0 uF +(4.0% reading + 10 digits)
