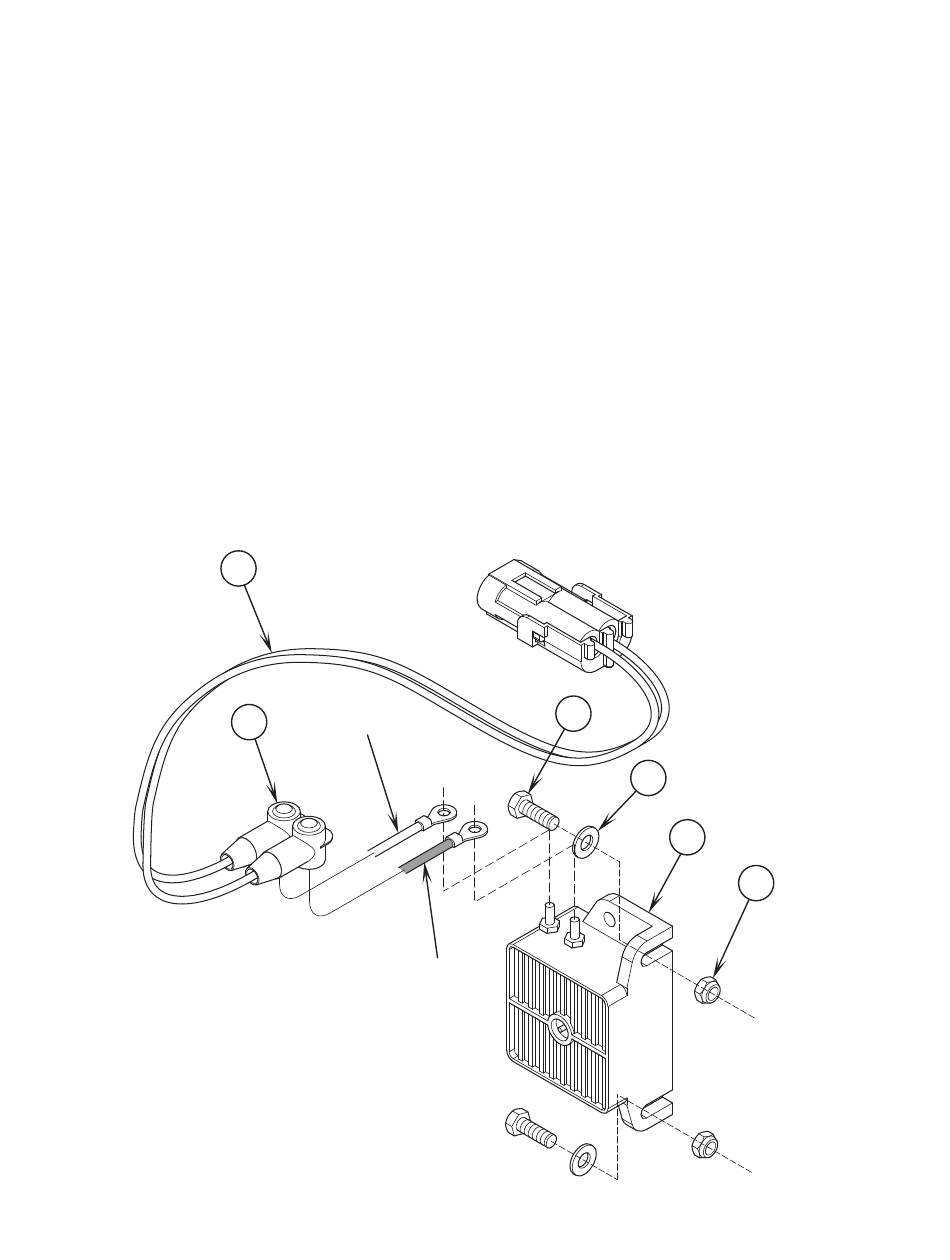

See Figure 1. Slide one Terminal Insulator (C) onto each of the wires (one RED & one BLK) in the Wire Assembly Pigtail (B) as shown.
2
Remove one nut from each of the terminal studs on the Back-Up Alarm (A).
3
Connect the RED wire of the harness to the (+) positive terminal of the alarm, then connect the BLK wire to the (–) negative terminal on the alarm
using the nuts from the previous step.
4
Slide both terminal insulators down so that they completely cover the alarm terminal studs and nuts.
FIGURE 1
© 2013 Nilfi sk-Advance, Inc.
56305519 BACK-UP ALARM KIT
For LP & D CS7000 Hybrid, CS7000 Hybrid EcoFlex™ CS7000 B & CS7000 B EcoFlex™
For Condor XL / ER1300, ER1600 / SC8000
For Diesel, LPG & Petrol Captor
For Battery Captor
ITEM
PART NO.
[ ]
56040800
A
56409232
B
56409495
C
56409538
D
56009018
E
56002708
F
56002098
[ ] = Not Shown
B
C
RED
4300, 4800, 5400 / CR 1100, 1200, 1400
™
4300, 4800 / CR 1100, 1200
™
CONTENTS OF KIT
QTY
DESCRIPTION
1
Instruction Sheet
1
Back-Up Alarm
1
Wire Assembly, Pigtail
2
Terminal Insulator
2
Scr, Hex Thd Form 1/4-20 x .75
2
Nut, Hex Nyl Loc 1/4-20
2
Washer, Flat
D
BLK
(page 1 of 7)
F
A
E
8/03 revised 7/13 Form No. 56040800 REV D
