L L P - U L- M K I T
The LLP-UL-M-KIT is a field installable motorized latch pullback kit for the Hager 4500,
A.

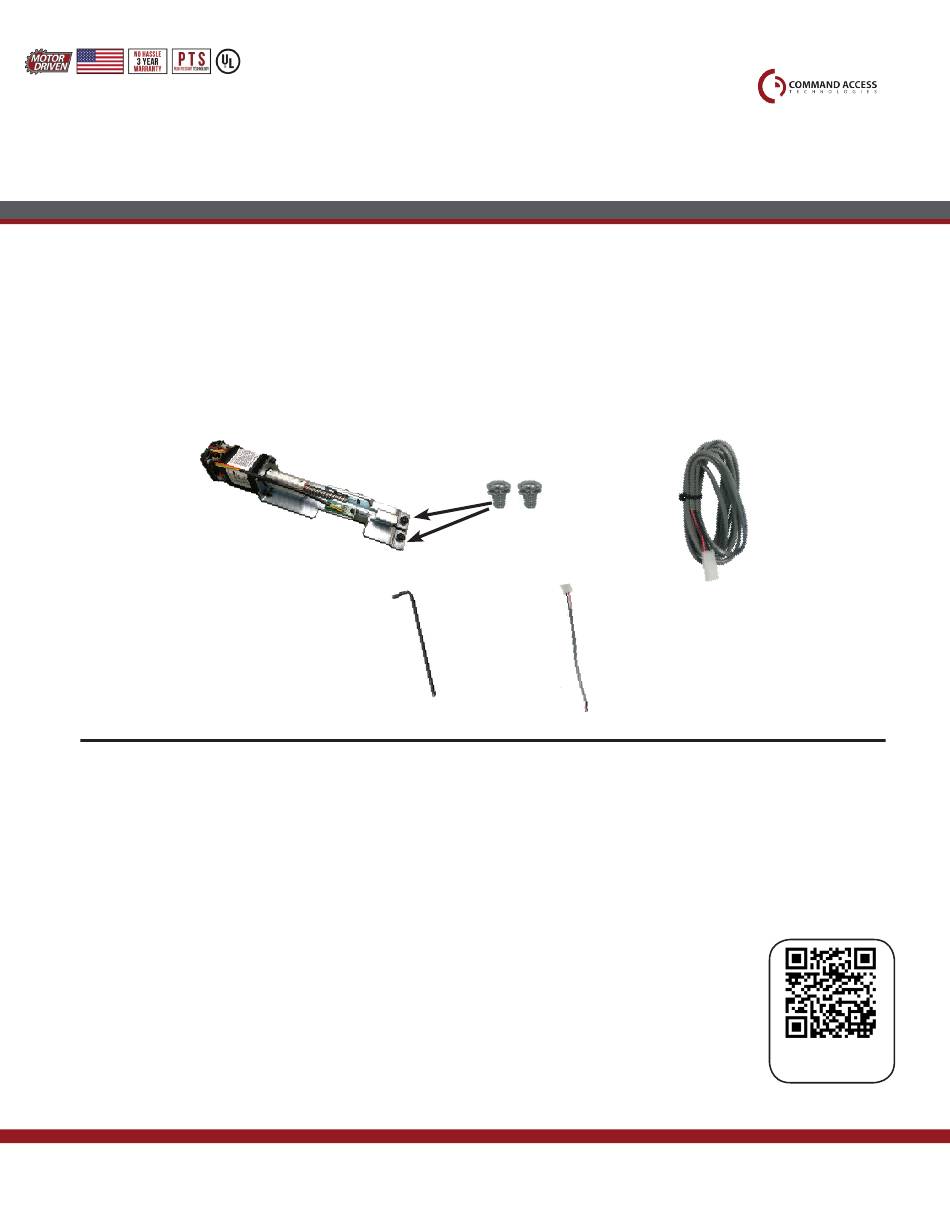

Kit I n c l ude s
A.
Motor Mount w/ MM4 series Module
2- ALLEN SCREWS
B.
1- 8' Lead w/ VD Connector
C.
D.
1-Allen Wrench 3/32
E.
1- Push & go connector
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
INSERT Instructions
LSDA9000 and Lawrence 8000 series.
B.
D.
D.
C.
E.
To o l s R e q u i r e d
#2 Phillips head screwdriver
Additional
Information
# 2 0 2 2 7 _ E
Advertisement
Table of Contents
Related Manuals for Command access LLP-UL-M KIT
Summary of Contents for Command access LLP-UL-M KIT
- Page 1 L L P - U L- M K I T INSERT Instructions The LLP-UL-M-KIT is a field installable motorized latch pullback kit for the Hager 4500, LSDA9000 and Lawrence 8000 series. Kit I n c l ude s To o l s R e q u i r e d Motor Mount w/ MM4 series Module #2 Phillips head screwdriver 2- ALLEN SCREWS...
- Page 2 Technical Information SPECIFICATIONS mm4s switches • Input Voltage: 24VDC +/- 10% STANDARD TORQUE • Wire gauge: Minimum 18 gauge Standard Torque Mode HIGH TORQUE • Direct wire run - no relays or access control Average Latch Retraction Current: 1 Amp PTS PROGRAMMING on Average Holding Current: 215 mA units in-between power supply &...
- Page 3 P USH N’ GO Conne ctor ccess elease R ecommend ed Po w er Su ppli e s: All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory. For more information click here or go to our website U S C U S T O M E R S U P P O R T 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | W W W .
- Page 4 Installation Instructions Remove head cover. Remove filler plate. Slide off housing, exposing baserail and push pad. Remove (2) screws securing base rail to housing. If your device has dogging will remove it, if Flip over the push pad and remove (2) phillips screws your device doesn’t please skip ahead 3 steps.
- Page 5 CONTINUED Remove dogging assembly and place aside. Remove (2) screws from back of the push pad. Remove push pad end cap Depress the push pad to extend dogging hole. Slide motor mount attaching hook into dogging hole. Release push pad and line up holes on baserail Install (2) screws with allen wrench provided with holes on motor mount underneath.
- Page 6 CONTINUED Re-install the push pad end cap with (2) screws. Slide housing back onto baserail being cautious not to pitch any wires While sliding housing back on make sure motor bracket Confirm motor has seated properly but see if the fits between exsiting groves.
- Page 7 CONTINUED Re-install filler plate being cautious of wires. Re-install the head cover. Hook up to power. Depress push pad & set PTS adjustment. Setting PTS Step 1- Select your preferred torque mode (ships in standard torque) Press the device push pad to the desired setting.
