Command access PD10-UL-M-KIT Insert Instructions

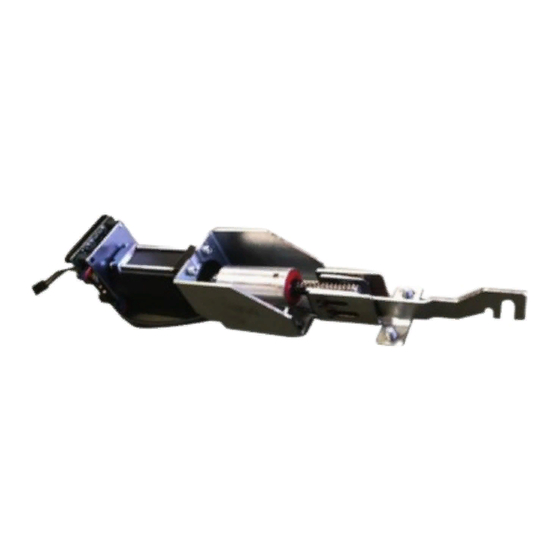

Field installable motorized latch pullback for the pd10/11, doromatic or falcon 1690/1790, & first choice 3600/3700
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

P D 1 0 - U L - M - K I T

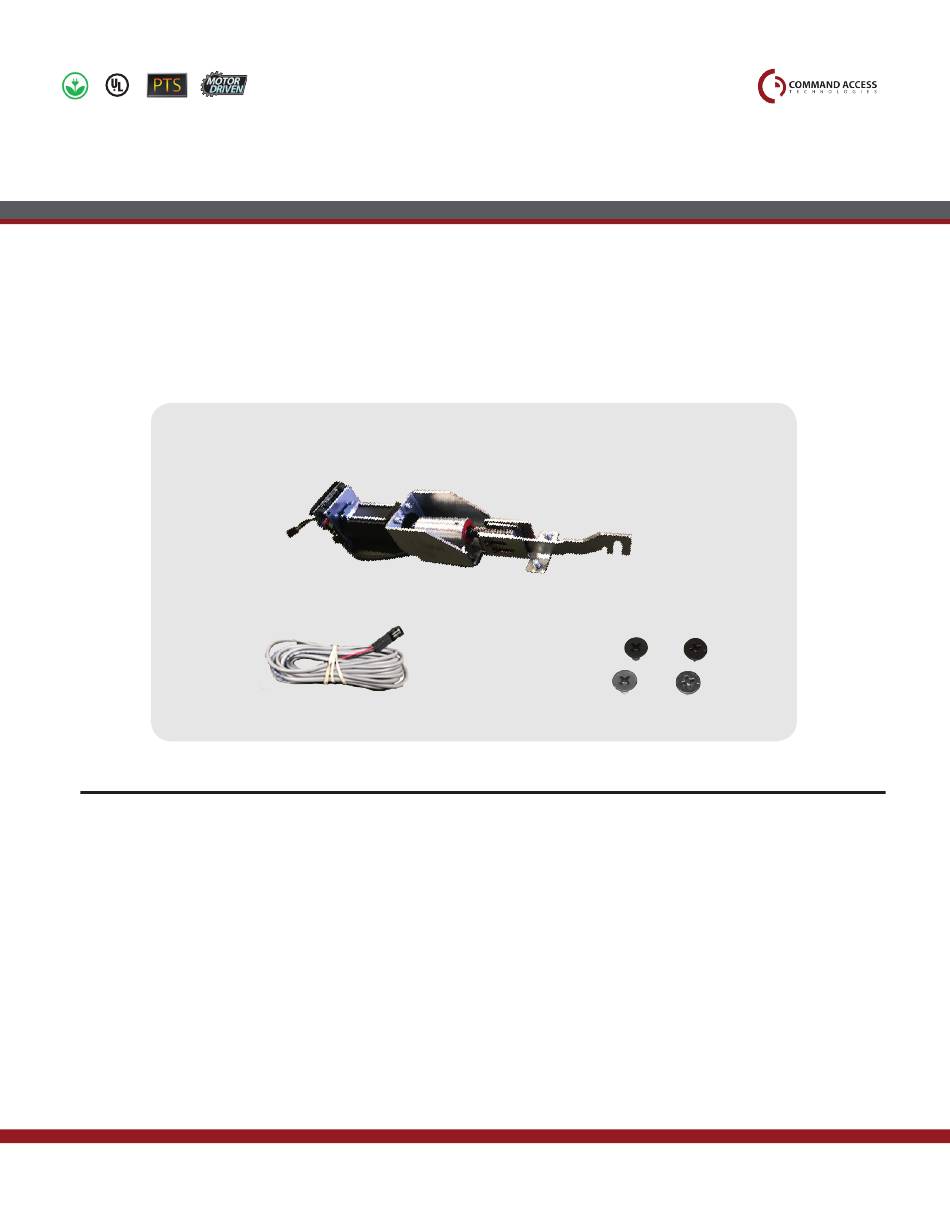

The PD10-UL-M-KIT is a field installable motorized latch pullback for the
PD10/11, Doromatic or Falcon 1690/1790, & First Choice 3600/3700.
A.
Motor Mount w/MM4
B.
1- 8' Lead w/ Connector
C.
2 - Sets of finished phillips screws
C o m m a n d A c c e s s Te c h n o l o g i e s | 2 2 9 0 1 L a P a l m a A v e , Yo r b a L i n d a , C A 9 2 8 8 7 | P h o n e : ( 8 8 8 ) 6 2 2 - 2 3 7 7
INSERT INSTRUCTIONS
A.
B.
K it In cl ud es
C.
Tools Re quire d
Cordless Drill or Phillips
Screwdriver
Hacksaw
#20410_B
