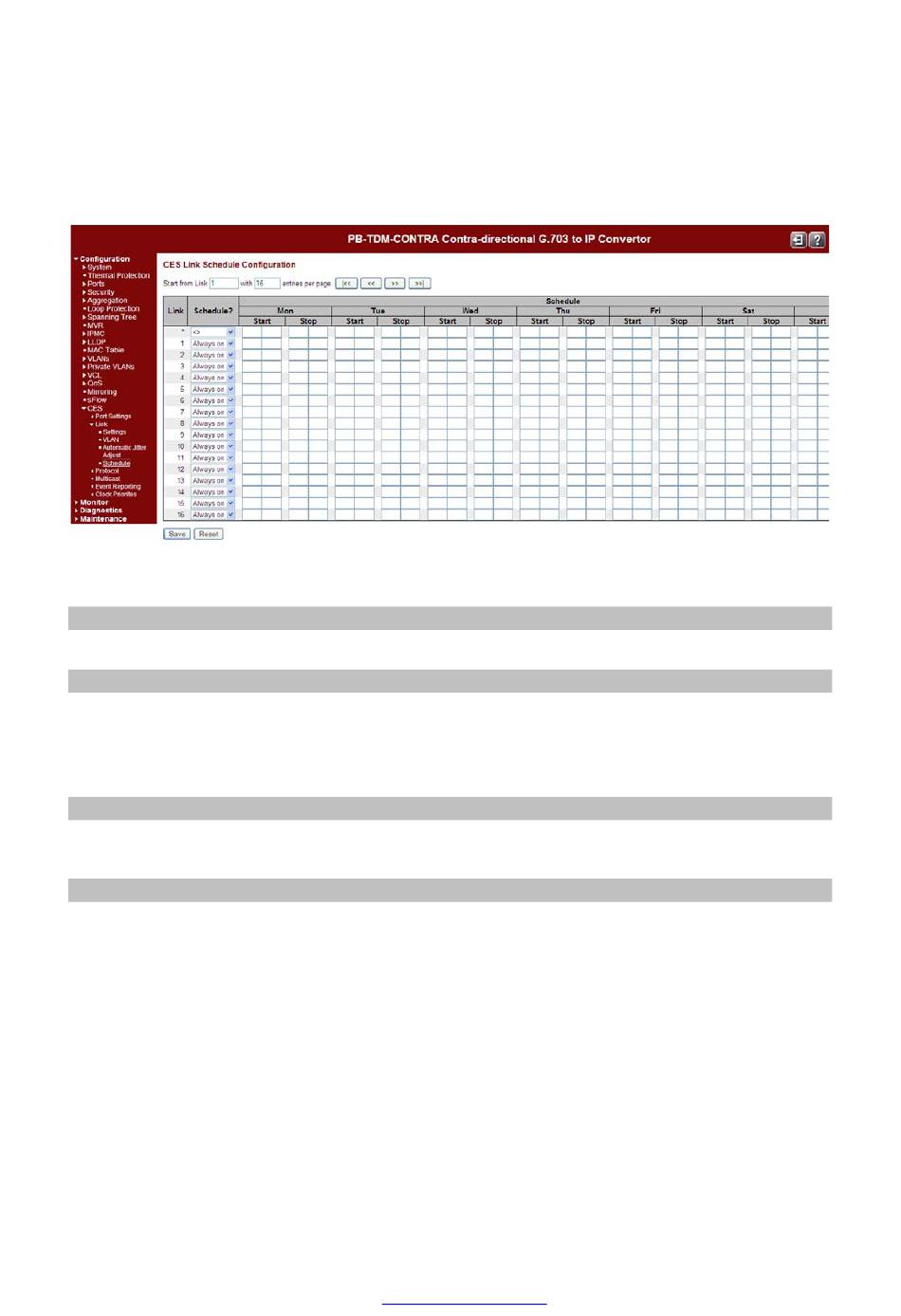

Configuration > CES > Link > Schedule
This page displays the current CES schedule configuration for logical links and allows the
configuration to be modified. Schedules are used to control when a logical link will be active. Note that
other factors may also affect making the link active (e.g., network connectivity and TDM port
availability).
The parameters are described below.
Link
The logical link number.
Schedule?
Whether to enable scheduling. Choose one of:
•
Always on - No scheduling.
•
Schedule - The logical link is only active during the specified schedule times.
Schedule / Day / Start
In 'Schedule' mode, the time of day to activate the logical link. The first field is hours, the
second is minutes.
Schedule / Day / Stop
In 'Schedule' mode, the time of day to decativate the logical link. The first field is hours, the
second is minutes.
Buttons
Save: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
|<<: Click to display the first page. NB Unsaved changes on the current page will be lost.
<<: Click to display the previous page. NB Unsaved changes on the current page will be lost.
>>: Click to display the next page. NB Unsaved changes on the current page will be lost.
>>|: Click to display the last page. NB Unsaved changes on the current page will be lost.
