SoundTraxx Kato HO P42 Application Note

Tsunami digital sound decoder installation notes

Advertisement

Quick Links

Overview

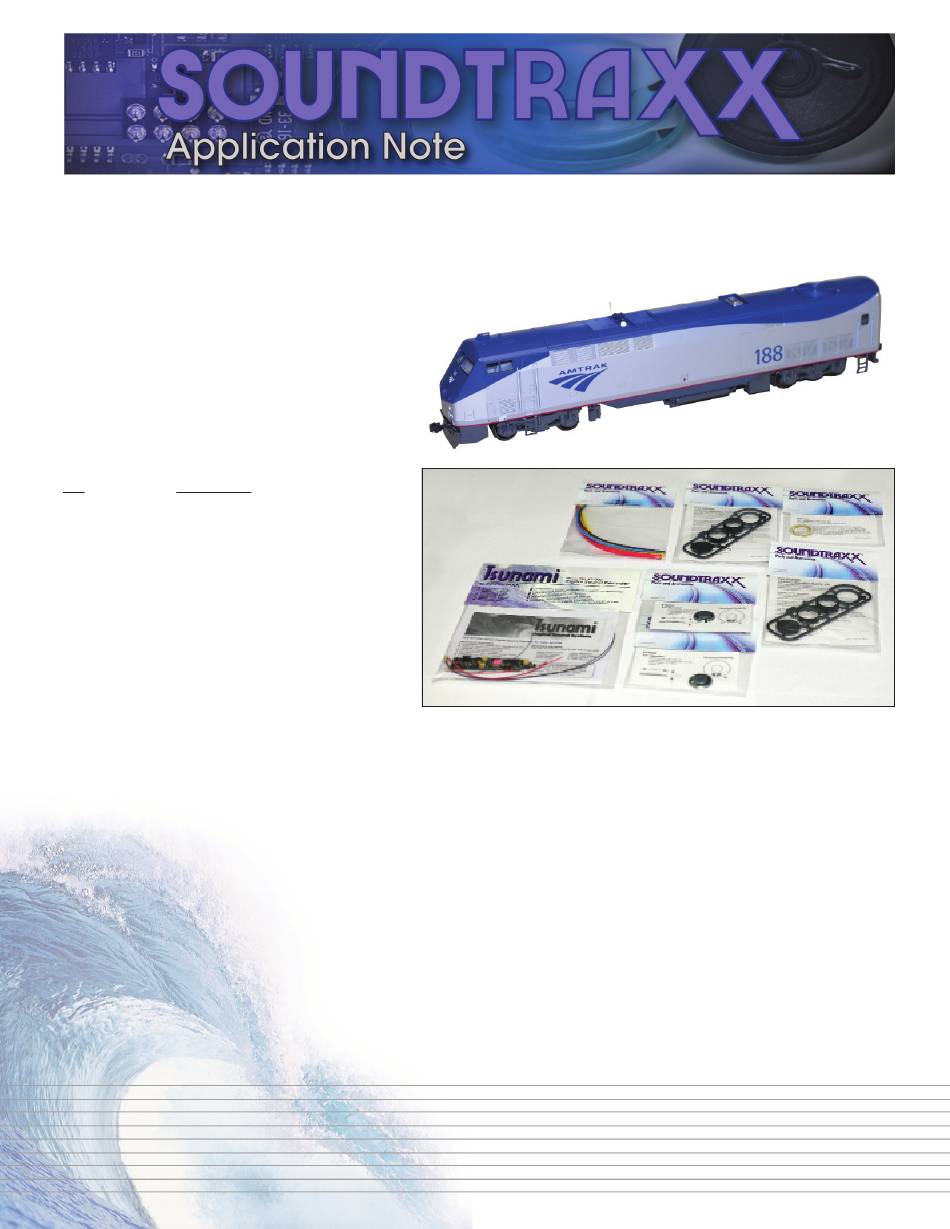

This application note describes the procedure for
installing a TSU-KT1000 Digital Sound Decoder into a
Kato HO P42 locomotive.
Skill Level 2: This installation can be completed in 1
to 2 hours with minimal modification required to the
model.
Bill of Materials
P.N.
Description
828068
TSU-KT1000 for HO Kato P42
810053
Two 20.5mm Round Speakers
810109
Two 20.5mm Speaker Baffles
810118
20.5mm Speaker Gasket Kit
810037
Shrink Tube Assortment
Tools You Will Need
■ 25W Soldering Iron
■ Rosin Core Solder
■ Flux for Electrical Work
■ Wire Cutters
■ Wire Strippers
■ Hobby Knife with #11 Blade
■ Metal Straight Edge/Ruler
■ Miniature Screwdriver Set
■ Electric Drill
Kato P42
Tsunami Digital Sound Decoder Installation Notes
■ 1/8" Drill Bit
■ Small Pliers
■ Heat Gun or Blow Dryer
■ Liquid Plastic Cement (TENAX-7R™ or equivalent)
■ Double-sided Foam Tape
