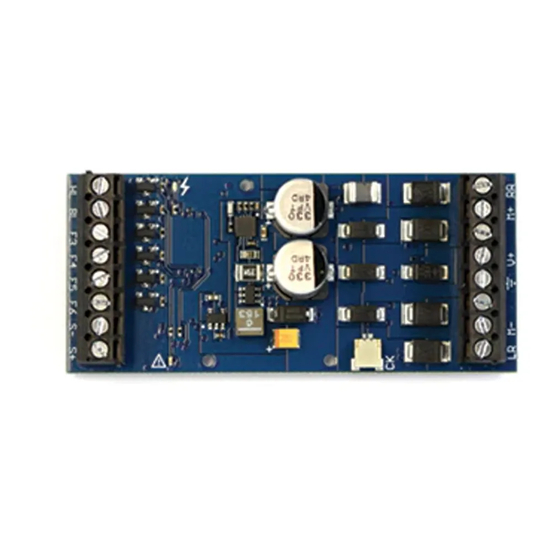

SoundTraxx tsunami2 User Manual

Digital sound decoder
Hide thumbs Also See for tsunami2:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
Tsunami2
™
Digital Sound Decoder
Diesel User's Guide
Software Release 1.0
Rev. A 06/27/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the tsunami2 and is the answer not in the manual?

Questions and answers

Stephen R Fletcher
April 19, 2025

How do I enable analog operation for a tsu 2200

0

Subscribe to Our Youtube Channel

Related Manuals for SoundTraxx tsunami2

Summary of Contents for SoundTraxx tsunami2

  • Page 1 Tsunami2 ™ Digital Sound Decoder Diesel User’s Guide Software Release 1.0 Rev. A 06/27/16...
  • Page 2 The information in this document is subject to change without notice. SoundTraxx (Throttle Up! Corp.) shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damage resulting from the furnishing, performance or use of this material.

  • Page 3: Table Of Contents

      Sorting Out Decoder Difficulties ................73   Appendix A: Decimal-Hex-Binary Conversions ......76   Appendix B: Tsunami2 Diesel CV Reference ......... 77   Appendix C: License Agreement ........... 78   Appendix D: Service and Warranty Policy ........79  ...

  • Page 4: All Aboard

    Tsunami to offer the highest quality sound for model railroading. This user’s guide shows you how to operate Tsunami2 and customize each decoder setting to fit your preferences, while providing some helpful troubleshooting tips along the way.

  • Page 5: Using Tsunami2

    (CVs). Most DCC decoder and command station manuals call this “programming”, though this is misleading and sounds scarier than it is. At no point are you required to learn programming! This user’s guide will walk you through operating and programming Tsunami2 to its full capacity. Default Function Assignments Table A.
  • Page 6 Signaling can make your operating sessions more fun! Engineers signal to notify passengers, crew, and other trains of common locomotive movements, such as stopping, moving forward, backing up, and approaching grade crossings. Tsunami2 provides three functions for signaling. Use F2, F3, and F9 to signal prototypically while you operate, as described below.
  • Page 7 To simulate this reality, Tsunami2 is equipped with automatic Dynamic Digital Exhaust (DDE) and provides F5 (RPM+) and F6 (RPM-) for manual control. Dynamic Digital Exhaust is one of the most innovative features in Tsunami2, and automatically adjusts the volume and engine RPM schedule to simulate the locomotive producing a range of power during operation.
  • Page 8 50%. Press F14 again to reset locomotive speed to the prior speed step and reactivate all momentum CV settings. For more information about momentum CVs, refer to “Configuring Throttle and Braking.” Tsunami2 Diesel User’s Guide...
  • Page 9 After the coach doors slam shut, increase the throttle and depart the station. Turn On FX3-FX6 Lighting Depending on board format, Tsunami2 offers up to six lighting outputs to support Hyperlight effects. If you have additional lights wired to the FX3-FX6 function outputs, use function keys F24-F27 to activate them.
  • Page 10 Automatic Sound Effects Tsunami2 plays a variety sound effects automatically. Automatic sound effects respond prototypically to aspects of operation, such as certain functions, speed settings, and motor load changes.

  • Page 11: Cv Programming Tutorial

    If reading about CV programming already has your head spinning, this tutorial will help you understand how CVs work. At first glance, you may feel overwhelmed by the large number of CVs offered by Tsunami2. Don’t worry! You don’t need an engineering degree to customize your decoder’s settings. As...
  • Page 12 Each of these values is only counted when the bit is enabled with a “1.” Looking at the figure below, you can see that using this method, bit 1 has a value of 2 and bit 5 has a value of 32. Adding these two numbers together gives the correct decimal value of 34. Tsunami2 Diesel User’s Guide...

  • Page 13: Introduction To Programming

    CV values. Service Mode Service Mode programming usually requires connecting the model to a dedicated programmer or placing it on a separate programming track. Tsunami2 supports four types of Service Mode instructions: Address Mode: CV 1 may be modified...
  • Page 14 Indexed CVs are accessed with the use of two CVs: CV 31 enables indexing when set to a value of 16 (the default value) and CV 32 selects the desired indexed page. Because of the number of features and options contained within Tsunami2 decoders, three pages of indexed CVs are provided: To access CVs 1.257-1.512:...
  • Page 15 Operations Mode or Service Mode. Further, a locked decoder cannot be reset to its factory defaults until it is unlocked. Tsunami2 decoders are shipped from the factory with all CVs unlocked, that is, CV 15 and 16 are both set to 0.
  • Page 16 0 to 7 and the decoder still does not respond, there may be a problem with the installation, the program track, or the decoder itself and further investigation will be required. To reiterate, follow the steps below to unlock CVs and determine the lock code: Tsunami2 Diesel User’s Guide...
  • Page 17 If you still can’t identify the lock code, there may be a problem with the installation, programming track, or decoder. Contact SoundTraxx customer support if this occurs. If you do not have access to a programming track with read-back capabilities (or are uncertain...

  • Page 18: Basic Programming

    If the decoder’s extended address is enabled (bit 5 of CV 29 set to 1), only the primary address can be changed in Operations Mode. Primary Address Enter a value from 1 to 127 into CV 1 to set the primary address. All SoundTraxx decoders are set to primary address 3 by default. Extended Address The extended address is actually made up of two CVs, 17 and 18.

  • Page 19: Configuring The Decoder

    Address) are used to set the extended address. Set bit 5 of CV 29 to 1 to enable the extended address. Refer to the previous section, “Configuring the Address,” for more information about setting the extended address. Refer to Table C on the following page to view decimal values for CV 29. Tsunami2 Diesel User’s Guide...
  • Page 20 Extended (CV 17:18) 28/128 Normal Extended (CV 17:18) 28/128 Reversed Note: Values in Table C are shown in decimal format. If your command station requires hex inputs, you will need to convert. Refer to Appendix A for conversions. Tsunami2 Diesel User’s Guide...

  • Page 21: Configuring Throttle And Braking

    CV 2 until the locomotive just begins to move. Setting Momentum Rates Tsunami2 provides two CVs to simulate the momentum due to train weight. CV 3 (Baseline Acceleration Rate) controls how fast the locomotive responds to increases in throttle settings.
  • Page 22 This will allow the decoder to produce more prototypical prime mover responses when encountering changes in both grade and number of cars, during operation. To adjust all DDE settings provided by Tsunami2, refer to “Configuring Dynamic Digital Exhaust.”...
  • Page 23 1. Enter a non-zero value into CVs 3 and 4 to set acceleration and deceleration rates. 2. Enter a non-zero value into CV 116 to set the dynamic brake rate. 3. Accelerate to a moderate speed (above speed-step 8). Tsunami2 Diesel User’s Guide...
  • Page 24 Example: Prototypical Braking Tsunami2 has more ways to prototypically operate your model, and the dynamic, independent, and train brake functions are a great example! The steps below will guide you through setting...
  • Page 25 Use the 3-Point Speed Curve The figure shown below gives an example of how CVs 2, 5, and 6 can be used to change voltage levels during operation. Tsunami2 Diesel User’s Guide...
  • Page 26 Basic Programing Setting the Custom Speed Table Tsunami2 offers a custom speed table with 28 Table D. 28-Point Speed Table Settings adjustable speed points. The 28-point custom Value % of Throttle speed table is disabled by default. However, you can enable it with CV 25 (Speed Table...
  • Page 27 Note: Bit 4 (STE) of CV 29 (Configuration Data 1) must be set to ↓ 1 for the motor trim scaling factors in CVs 66 and 95 to modify 255 = Voltage × 1.99 forward and reverse drive voltages. Tsunami2 Diesel User’s Guide...

  • Page 28: Configuring Lighting Outputs

    Basic Programing Configuring Lighting Outputs Lighting Output Control CVs Tsunami2 provides up to six lighting outputs (depending on CV 49: Headlight Configuration the board format). Lighting output control CVs allow you to CV 50: Backup Light Configuration enable Hyperlight effects, Grade-Crossing Logic, phase offset,...
  • Page 29 The on/off brightness 1 and 2 effects will set lighting outputs to the brightness levels of CVs 61 and 62, respectively. Emergency Gyralite The emergency Gyralite follows the same oscillating sweep pattern as the Gyralite, and will automatically disable all active lighting effects. Tsunami2 Diesel User’s Guide...
  • Page 30 LED to balance the LED and incandescent brightness levels. Add a value of 128 to enable LED Compensation Mode for the corresponding lighting output. Note: Enabling LED Compensation Mode will not change the output voltage. Resistors may still be necessary depending on the board format. Tsunami2 Diesel User’s Guide...
  • Page 31 FX3 and FX4 lighting outputs and allow them to alternate during the crossing hold timer countdown after Grade-Crossing Logic is activated: 1. Add CV values for Grade-Crossing Logic and ditch light I. Add 64 for Grade-Crossing Logic and 9 for ditch light I: 64 + 9 = 73 Tsunami2 Diesel User’s Guide...
  • Page 32 1 + 2 + 4 + 8 + 16 + 32 = 63 5. Enter a value of 63 into CV 58 to enable all lights in the reverse direction. Tsunami2 Diesel User’s Guide...

  • Page 33: Configuring Sound Effects

    Configuring Sound Effects Sound control CVs allow you to fully customize the decoder’s sound effects to fit your preferences. All sound effects included in Tsunami2 are recordings from actual locomotives and simulate the reality of operating a diesel locomotive. Sound Control CVs...
  • Page 34 CV 126, turning on the couple function will activate the couple sound effect, and turning on the uncouple function will activate the uncouple sound effect. To map effects to function keys F0-F28, Refer to “Configuring Function Mapping.” Tsunami2 Diesel User’s Guide...
  • Page 35 For DCC operation, the prime mover will not start when the decoder receives track power when auto-start is disabled. For analog mode (DC) operation, the prime mover will start when the decoder receives track power regardless of CV 114. Auto-start is enabled by default. Tsunami2 Diesel User’s Guide...
  • Page 36 If you start to hear some distortion, lower the volume level accordingly. Note: Be sure that your speaker is rated to match the audio amplifier of your decoder. Ratings for each format are available on the packaging and at www.soundtraxx.com. Failure to do so could cause severe damage to your speaker.
  • Page 37 Independent Brake Release Reserved Reserved Poppet Valve Steam Generator Cab Doors Reserved Relay Clicks E-Brake App. Glad Hand Release All Aboard/Coach Doors Reserved Reserved Clickety-Clack Sander Valve Fuel Loading Air Conditioner Wrenches Pneumatic Oilers Toilet Flush Cab Chatter Tsunami2 Diesel User’s Guide...
  • Page 38 Basic Programing Adjust Alternate Mixer Volume Levels Tsunami2 includes an alternate volume mixer that can be selected in place of the primary volume mixer. This allows you two volume levels for each sound effect, which can be useful if you need quieter or louder volume settings for different operating situations, such as one group of settings for your home layout and another for your club layout.
  • Page 39 Entering values from 0 to 255 into CV 113 will set the time-out period from 0.25 seconds to 63.75 seconds. Use the equation below to calculate the quiet mode time-out period: Time-Out Period = CV 113 × 0.25 Tsunami2 Diesel User’s Guide...

  • Page 40: Configuring Automatic Sounds

    A value of 0 will trigger the brakes whenever the locomotive is decelerating. Note: The best results when using the Auto-Brake feature will occur with some momentum programed in CV 3 Baseline Acceleration Rate and CV4 Baseline Deceleration Rate. Tsunami2 Diesel User’s Guide...
  • Page 41 The poppet valve releases ↓ more frequently in humid environments and less 255 = Slowest Release Rate frequently in arid environments. CV 200 is set to a value of 25 by default. Tsunami2 Diesel User’s Guide...
  • Page 42 CV 205: Cab Chatter Event Probability stopped for two minutes and the general CV 206: Toilet Flush Event Probability service function (F18 by default) is turned CV 207: Air Conditioner Event Probability off. CV 208: Relay Clicks Event Probability Tsunami2 Diesel User’s Guide...
  • Page 43 CV 114: Engine Exhaust Control CV 124: Air Compressor Select CV 120: Airhorn Select CV 126: Coupler Select CV 121: Auxiliary Airhorn Select CV 195: Coach Door Count CV 122: Bell Select CV 200: Poppet Valve Release Rate Tsunami2 Diesel User’s Guide...
  • Page 44 4. You can select a different primary airhorn for the long airhorn function (F2 by default) with CV 120. Entering a value from 0 to 41 into CV 120 will select airhorns 1-42. To select airhorn 15, enter a value of 14 into CV 120. Tsunami2 Diesel User’s Guide...
  • Page 45 Entering a value from 1 to 255 into CV 200 will set the poppet valve release from the fastest rate to the slowest rate. Enter a value of 150 into CV 200 to simulate an arid environment. Tsunami2 Diesel User’s Guide...

  • Page 46: Advanced Programming

    Configuring Audio Control Audio Control CVs CVs 161-192: FX Bus Mixer CV 224: High-Pass Filter Cutoff Frequency Tsunami2 features a high-pass filter and 7-band CV 225: Equalizer Control Register equalizer, allowing you to adjust frequency responses CV 226: 62Hz Cut/Boost according to your installation.
  • Page 47 CVs 226-232 (Cut/Boost Controls) to adjust the cut/boost of each band’s frequency level from +12dB to -12dB. CVs 226-232 are set to values of 128 by default, which indicates a flat response (0dB). Refer to Table K on the next page to configure EQ Frequency Level CVs 225-232. Tsunami2 Diesel User’s Guide...
  • Page 48 Note: Setting the cut/boost levels in CVs 226-232 to values that are -12dB too high may result in poor sound responses or damage the speaker. Ensure that equalizer settings do not exceed your speaker’s power rating to avoid this. Tsunami2 Diesel User’s Guide...
  • Page 49 Each send level may be set from 0 to 255 to adjust the percentage from 0% to 100%. CVs 161-192 are listed on the following page. Tsunami2 Diesel User’s Guide...
  • Page 50 Remember, on the prototype, the reflected signals that create the reverberation are usually lower in volume than the original signal. Generally, you will want just enough output to notice the effect without overwhelming the original signal. Tsunami2 Diesel User’s Guide...
  • Page 51 Increasing the value of CV 236 will increase the number of reflections and add a “springiness” to the sound. Like any sound effect, it is possible to over-adjust a particular setting and create an artificial sounding effect. Make adjustments in small steps and let your ears be the judge! Tsunami2 Diesel User’s Guide...

  • Page 52: Configuring Dynamic Digital Exhaust

    Advanced Programming Configuring Dynamic Digital Exhaust Dynamic Digital Exhaust (DDE) is one of the most DDE Control CVs fun effects featured in Tsunami2. CV 2.503: DDE Load Offset CV 2.504: DDE Load Slope When the locomotive encounters a grade. DDE CV 2.507: DDE Prime Mover Low Volume Limit...
  • Page 53 CV 2.512 (DDE Load Sensitivity) is used to adjust the correlation between motor load and engine RPM sound effects. As the motor is impeded during operation, the DDE processor and Tsunami2 Diesel User’s Guide...
  • Page 54 Setting CV 2.512 to 255 indicates that the prime mover sound effect will be most sensitive to changes in motor load. Note: DDE Load Sensing is disabled if Back EMF is disabled in CV 217. Tsunami2 Diesel User’s Guide...

  • Page 55: Configuring Function Mapping

    16 (default) and CV 32 (CV Index 2) must be set to a value of 1 (default). Function Mapping with Flex-Map Technology To complement the decoder’s wide range of effects, Tsunami2 puts you in control of all function assignments. Flex-Map CVs determine default function assignments for Tsunami2, and allow you to customize function keys and effects according to a simple and versatile format.
  • Page 56 CV 1.307: Reserved Not Assigned CV 1.308: Handbrake CV 1.309: Sander Valve CV 1.310: Reserved CV 1.311: All Aboard/Coach Doors CV 1.312: Steam Generator CV 1.313: Fuel Loading CVs 1.314-1.320: Reserved CV 1.321: E-Brake App. CVs 1.322-1.384: Reserved Tsunami2 Diesel User’s Guide...
  • Page 57 Note: Mapping a function to the E-Stop button will not change the Emergency Stop functionality. It will still stop the motor regardless of the effect that has been mapped to it. Refer to Table O on the next page for a list of CVs 1.385-1.512 and corresponding effects. Tsunami2 Diesel User’s Guide...
  • Page 58 CV 1.435: Reserved CV 1.436: Handbrake CV 1.437: Sander Valve CV 1.438: Reserved CV 1.439: All Aboard/Coach Doors CV 1.440: Steam Generator CV 1.441: Fuel Loading CVs 1.442-1.448: Reserved CV 1.449: E-Brake App. CVs 1.450-1.512: Reserved Tsunami2 Diesel User’s Guide...
  • Page 59 2. Enter a value of 255 into CV 259 (FX3 Effect Map Register) to disable function control for the FX3 lighting output. 3. To map the emergency Gyralite to the emergency stop button, enter a value of 16 into CV 387 (FX3 Effect Auxiliary Map Register). Tsunami2 Diesel User’s Guide...
  • Page 60 Tsunami2’s default function assignments. CVs 1.257-1.512 (Extended Function Mapping CVs) provide default function assignments for 28 function keys and offer comprehensive function mapping support for all of Tsunami2’s effects in an uncomplicated and versatile format. However, mapping an effect to a function key (F0(f), F0(r), or F1-F12) using CVs 33-46 will override the corresponding function assignment mapped within CVs 1.257-1.384.

  • Page 61: Configuring Hyperdrive2

    CV 211: Low-Speed Compensation constant speeds. Load compensation and a proportional- CV 212: BEMF Feedback Intensity integral (PI) control loop allows Tsunami2 to sense motor CV 215: BEMF Reference Voltage CV 216: Motor Speed-Step Deadband load in response to back-EMF measurements.
  • Page 62 Advanced Programming Control Loop Coefficients Tsunami2 compensates for load changes in response to back-EMF voltage readings that compare motor load to locomotive speed. When a variation between them occurs, a proportional-integral (PI) control loop adjusts the motor voltage to compensate for the difference so that the locomotive’s speed remains consistent.
  • Page 63 CV 215 may be programmed with any value from 60 to 255 to set the back-EMF reference Voltage from 6 to 25.5 volts. If you are planning to consist the model with other models equipped with SoundTraxx decoders (such as Tsunami or MC1 and MC2 DCC Mobile Decoders), make sure that the value entered in CV215 is equal to the observed voltage of the track output from your command station, so that the reference voltage is identical to your other decoders.
  • Page 64 Baseline Deceleration Rate in CV4. Any throttle increase in from speed step 0 will turn off the feature and the locomotive will accelerate back to the desired speed step set by the throttle. Tsunami2 Diesel User’s Guide...

  • Page 65: Configuring Advanced Consist Operation

    Note: You can enable the effects mapped to function keys in CVs 1.257-1.384 (Effect Map Registers) for advanced consist operation with CVs 21, 22, 245, and 246. Refer to “Using Tsunami2” to default function assignments for F0-F28, and refer to “Configuring Function Mapping” to customize Flex-Map function mapping CVs.
  • Page 66 CV Value CV 245 Value = _____ CV 246: Consist Function Enable 4 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Function CV Value CV 246 Value = _____ Tsunami2 Diesel User’s Guide...
  • Page 67 Continuously Active turn on in the reverse direction regardless of Emergency Stop Button pressed movement, and a value of 3 will allow the effect to turn on when the consist is in motion regardless of direction. Tsunami2 Diesel User’s Guide...
  • Page 68 3. To enable F4 and F8, add the corresponding CV 21 bits together: 8+ 128 = 136. Set CV 21 to a value of 136 to enable the dynamic brake and mute functions. 4. To enable the backup light (F0(r) by default), set CV 22 to a value of 2. Tsunami2 Diesel User’s Guide...

  • Page 69: Miscellaneous Features

    Note: You can enable the effects mapped to function keys in CVs 1.257-1.384 (Effect Map Registers) for analog mode operation with CVs 13, 14, 241, and 242. Refer to “Using Tsunami2” to default function assignments for F0-F28, and refer to “Configuring Function Mapping” to customize Flex-Map function mapping CVs.
  • Page 70 CV 241 Value = _____ CV 242: Analog Mode Function Enable 4 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Function CV Value CV 242 Value = _____ Tsunami2 Diesel User’s Guide...
  • Page 71 Entering a value of 0 into CV 219 will set the engine exhaust start voltage level to 6V. Entering a value of 255 into CV 219 will set the engine exhaust start voltage level to the maximum setting. Tsunami2 Diesel User’s Guide...
  • Page 72 DC power. Using older rheostat-style or pulse powerpacks will make operation erratic and should not be used to power Tsunami2-equipped installations in analog mode. If your powerpack has a pulse power switch, make sure that it is turned off.

  • Page 73: Troubleshooting

    Troubleshooting Sorting Out Decoder Difficulties If you have any difficulties operating your Tsunami2 Digital Sound Decoder, refer to this section first before doing anything else. We find that most problems are caused by errant CV values and can be easily corrected. We suggest you perform your diagnostics with the decoder on the programming track.
  • Page 74 Note: The fault light is connected in series with the decoder’s FX6 output (F27 by default) and will illuminate in a steady “on” state when that function is on. This is not an error code but can be used to check for proper operation of the fault light on a decoder. Tsunami2 Diesel User’s Guide...

  • Page 75: Error Codes

    Error 5: EEROM Checksum Failure If you’re still having difficulties, please contact our customer service department: SoundTraxx Customer Service Department 141 Burnett Drive Durango, CO 81301 Telephone: (970) 259-0690 Fax: (970) 259-0691 Email: support@soundtraxx.com Tsunami2 Diesel User’s Guide...

  • Page 76: Appendix A: Decimal-Hex-Binary Conversions

    Appendix A: Decimal-Hex-Binary Conversions Appendix A: Decimal-Hex-Binary Conversions Tsunami2 Diesel User’s Guide...

  • Page 77: Appendix B: Tsunami2 Diesel Cv Reference

    Appendix B: Tsunami2 Diesel CV Reference Appendix B: Tsunami2 Diesel CV Reference Primary CVs Sound Control CVs CV 1: Primary Address CV 112: Sound Configuration 1 CV 2: Vstart CV 113: Quiet Mode Time-Out Period CV 3: Baseline Acceleration Rate...

  • Page 78: Appendix C: License Agreement

    Decoder packaging. Breaking the seal on the packaging indicates you have accepted the license terms detailed herein. If you received the Tsunami2 Digital Sound Decoder pre-installed from your dealer, using the product indicates your acceptance of the license terms detailed herein.

  • Page 79: Appendix D: Service And Warranty Policy

    SoundTraxx will cover the repair under the conditions of our Safety-Net Service Warranty. If you damage the Digital Sound Decoder or it fails to operate within the first ninety (90) days, SoundTraxx will repair or replace the product free-of- charge under the following conditions: A.

  • Page 80: Appendix E: Declaration Of Conformity

    Appendix E: Declaration of Conformity Appendix E: Declaration of Conformity Declaration of Conformity We, Throttle Up! Corp., dba SoundTraxx, 141 Burnett Drive, Durango, Colorado USA, declare in sole responsibility that the following products: Product Description Tsunami2 Digital Sound Decoder Model Numbers...
