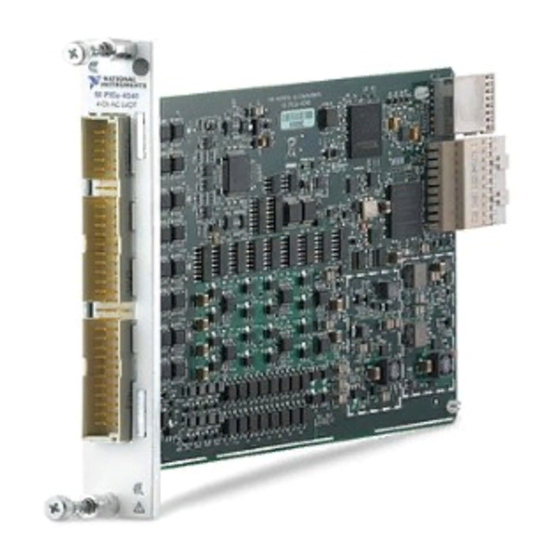

NI PXIe-4304 Calibration Procedure

NI PXIe-4304 Calibration Procedure

32 ch, 24-bit, +-42 v, 5 ks/s or 51.2 ks/s simultaneous filtered data acquisition module

Advertisement

Quick Links

CALIBRATION PROCEDURE
NI PXIe-4304/4305
32 Ch, 24-bit, ±42 V, 5 kS/s or 51.2 kS/s Simultaneous Filtered Data
Acquisition Module
Français
This document contains the verification and adjustment procedure for the National Instruments
PXIe-4304/4305 module.
Contents
Software.................................................................................................................................... 1
Documentation.......................................................................................................................... 2
PXIe-4304/4305 Verification and Adjustment......................................................................... 3
Test Equipment................................................................................................................. 3
Connecting the TB-4304 .......................................................................................... 4
Test Conditions................................................................................................................. 5
Initial Setup....................................................................................................................... 6
Accuracy Verification....................................................................................................... 6
Adjustment........................................................................................................................ 8
EEPROM Update ............................................................................................................. 9
Reverification ................................................................................................................... 10
Specifications............................................................................................................................ 10
World Wide Support and Services ........................................................................................... 10

Software

Calibrating the NI PXIe-4304/4305 requires the installation of NI-DAQmx on the calibration
system. Driver support for calibrating the PXIe-4304/4305 was first available in
NI-DAQmx 15.1.1. For the list of devices supported by a specific release, refer to the
NI-DAQmx Readme, available on the version-specific download page or installation media.
You can download NI-DAQmx from
LabWindows™/CVI™, C/C++, C#, and Visual Basic .NET. When you install NI-DAQmx, you
only need to install support for the application software that you intend to use.
Deutsch
ni.com/manuals
ni.com/downloads
. NI-DAQmx supports LabVIEW,

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXIe-4304 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NI PXIe-4304

  • Page 1: Table Of Contents

    Calibrating the NI PXIe-4304/4305 requires the installation of NI-DAQmx on the calibration system. Driver support for calibrating the PXIe-4304/4305 was first available in NI-DAQmx 15.1.1. For the list of devices supported by a specific release, refer to the NI-DAQmx Readme, available on the version-specific download page or installation media.
  • Page 2: Documentation

    Documentation Consult the following documents for information about the PXIe-4304/4305, NI-DAQmx, and your application software. All documents are available on , and help files install with ni.com the software. NI PXIe-4304/4305 and TB-4304 User Guide and Terminal Block Specifications NI-DAQmx driver software installation and hardware setup.
  • Page 3: Pxie-4304/4305 Verification And Adjustment

    Test Equipment Table 1 lists the equipment recommended for the performance verification and adjustment procedures of the PXIe-4304/4305. If the recommended equipment is not available, select a substitute using the requirements listed in Table 1. Table 1. Recommended Equipment for PXIe-4304/4305 Verification and Adjustment...
  • Page 4: Connecting The Tb-4304

    AIGND Analog ground input Complete the following steps to connect the TB-4304. Install the PXIe-4304/4305 and the TB-4304 in the PXI Express chassis according to the instructions in the NI PXIe-4304/4305 and TB-4304 User Guide and Terminal Block Specifications. Configure the PXIe-4139 to voltage output mode and enable remote sensing. Connect the PXIe-4139 output to the TB-4304 as shown in Figure 2.
  • Page 5: Test Conditions

    The following setup and environmental conditions are required to ensure the PXIe-4304/4305 meets published specifications. • Keep connections to the PXIe-4304/4305 as short as possible. Long cables and wires act as antennas, picking up extra noise that can affect measurements. •...
  • Page 6: Initial Setup

    PXIe-4304/4305. The verification procedures assume that adequate traceable uncertainties are available for the calibration references. The PXIe-4304/4305 has 32 independent analog input channels. You can verify the accuracy of any or all of the channels depending upon your desired test coverage.
  • Page 7 5000 Maximum Value Appropriate maximum range value from Table 6 Minimum Value Appropriate minimum range value from Table 6 Units Volts Start the task. Average the readings that you acquired. NI PXIe-4304/4305 Calibration Procedure | © National Instruments | 7...
  • Page 8: Adjustment

    Appropriate Range Min starting with the first Test Point value in Table 7 physical channels: dev1/ai0:31 The default password is NI, which can be changed. Refer to the NI-DAQmx Help for details. 8 | ni.com | NI PXIe-4304/4305 Calibration Procedure...
  • Page 9: Eeprom Update

    DAQmx Initialize External Calibration action: commit EEPROM Update When an adjustment procedure is completed, the PXIe-4304/4305 internal calibration memory (EEPROM) is immediately updated. If you do not want to perform an adjustment, you can update the calibration date without making any adjustments by initializing an external calibration and closing the external calibration.
  • Page 10: Reverification

    NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance for the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS TO THE ACCURACY OF THE INFORMATION CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS.
