KSB Amarex N Series Installation And Operating Manual

KSB Amarex N Series Installation And Operating Manual

Submersible motor pump
Hide thumbs Also See for Amarex N Series:
Table of Contents

Advertisement

Quick Links

Download this manual

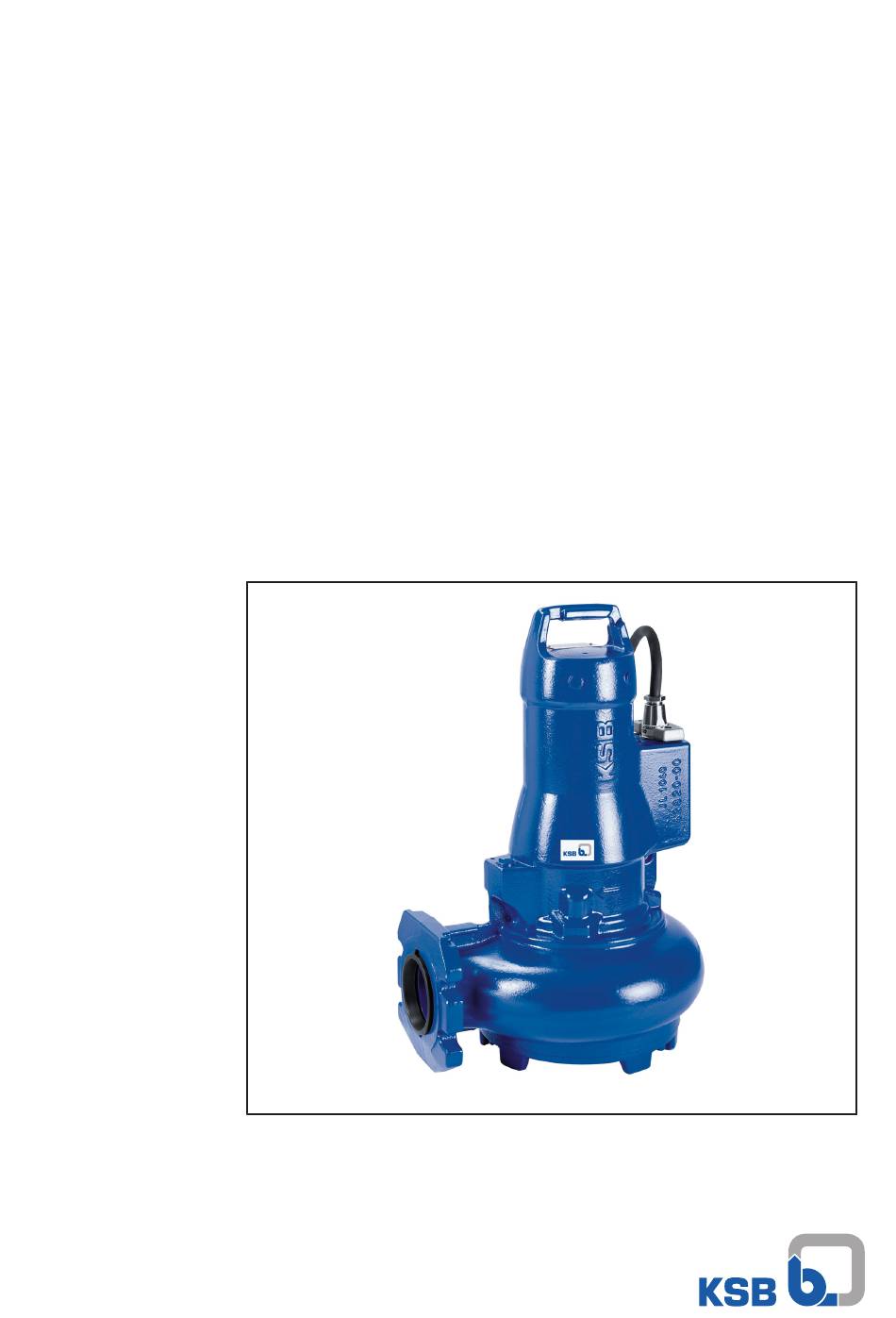

Submersible Motor Pump
Amarex N
Sizes DN 50 to DN 100
Motors:
2 poles: 002 to 042
4 poles: 004 to 044
ATEX-compliant
Installation/Operating Manual
