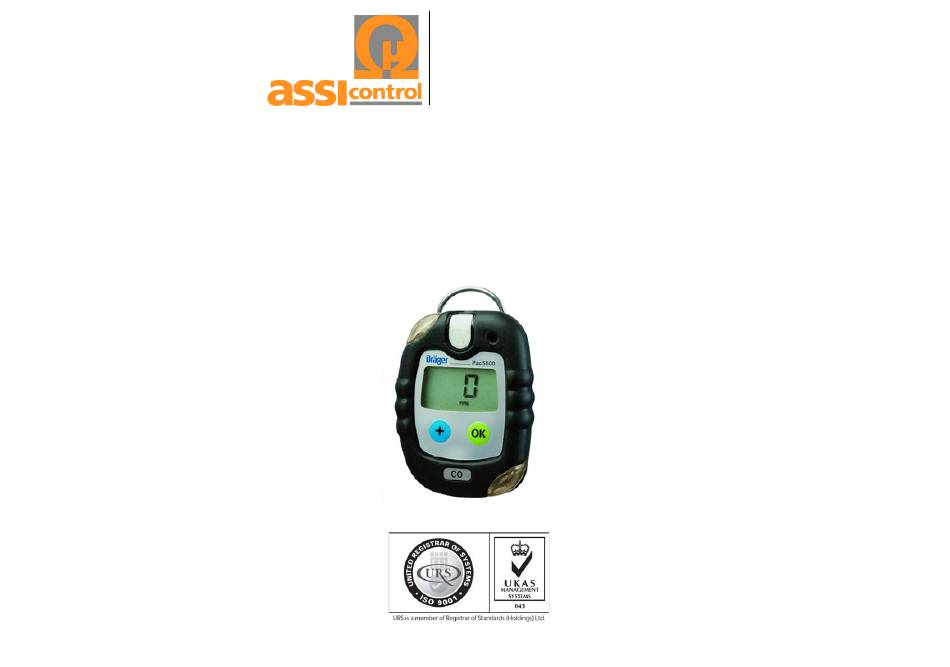

PAC-3500 / 5500
Rilevatori gas / Gas detectors
Manuale d'uso / Instruction manual
RLG-272-ITIN-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAC-3500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dräger PAC-3500

  • Page 1 & S E R V I Z I p e r i l s i s t e m a q u a l i t à PAC-3500 / 5500 Rilevatori gas / Gas detectors Manuale d’uso / Instruction manual...
  • Page 2: Per La Vostra Sicurezza

    1 Per la vostra sicurezza 2 Impiego previsto – Dräger Pac 3500/5500 Attenersi scrupolosamente alle istruzioni per l'uso misura la concentrazione di CO, L'uso del dispositivo richiede la piena comprensione e la scrupolosa osser- S e O nell'aria ambiente vanza delle presenti istruzioni. Il dispositivo deve essere utilizzato unicamente e attiva gli allarmi se la rilevazione per le finalità...
  • Page 3: Funzionamento

    5.1 Accensione del dispositivo Calibrazione aria fresca – Premere e tenere premuto il tasto [OK]. Sul display apparirà il conto alla ro- vescia fino all'avvio: "3, 2, 1”. Modalità bump test Segnale di vita Nota Spegnimento dispositivo sempre sempre sempre Tutti i segmenti del display vengono visualizzati.
  • Page 4 5.2 Prima di raggiungere il posto di lavoro che, al posto del valore di misurazione, viene visualizzato "– – –" e sul di- splay vengono visualizzati i simboli [X] e [!]. In questo caso si deve ripetere AVVERTENZA il bump test oppure eseguire la calibrazione del dispositivo. L'apertura per il gas è...
  • Page 5: Cambio Della Batteria

    5.8 Intervalli di calibrazione 6.2 Preallarmi/allarmi principali batteria – La Dräger raccomanda un'ispezione ogni 2 anni e calibrazioni annuali o se- – Se è attivato il preallarme batteria, suona il segnale di allarme acustico e il mestrali, se necessario, in conformità alle norme EN 60079-29-2, OSHA o LED e il simbolo per "batteria carica bassa"...
  • Page 6: Sostituzione Del Sensore

    7.1 Come trattare le batterie scariche – Spegnere il dispositivo. – Svitare le 4 viti dal retro della cassa del dispositivo. AVVERTENZA – Aprire la parte anteriore della cassa e rimuovere la batteria. Pericolo di esplosione! – Rimuovere il sensore. Non gettare nel fuoco le batterie usate e non tentare di aprirle con la forza.
  • Page 7: Specifiche Tecniche

    10 Cambio del filtro antipolvere e idrorepellente 12 Specifiche del sensore Riproducibilità Punto zero: ±2 ppm ±0,1 ppm ±0,2 vol.-% ≤ ≤ ≤ Sensibilità: ≤ ±2 % del ≤ ±5 % del ≤ ±1 % del valore misurato valore misurato valore misurato Variazione a lungo termine (a 20 °C) Punto zero:...
  • Page 8: For Your Safety

    1 For your safety 2 Intended use – The Dräger Pac 3500/5500 Strictly follow the Instructions for Use measures the CO, H S and O Any use of the device requires full understanding and strict observation of concentration in the ambient air these instructions.
  • Page 9: Operation

    Remaining life of the device (only valid for Pac 3500) – Once activated check the remaining life by pressing [+] while device is turned off. The remaining time in days will be shown. After another press of Alarm Threshold A1 30 ppm 5 ppm 19 vol.-%...
  • Page 10 – The result of the bump test (passed or failed) will be stored in the event log- WARNING ger (see section 5.6). The CO and H S have a 15 minute warm up after the first activation of the – The bump test can also be finished automatically by the instrument without device.
  • Page 11: Changing The Battery

    5.9 Adjustable operation timer (in days) – When the battery main alarm is activated, the audible alarm sounds in a re- peating pattern of 2 repeating tones and the LED blinks in the same pattern. – The device is equipped with an adjustable operation timer. The operation –...
  • Page 12: Changing The Sensor

    9 Trouble shooting warnings/errors Usable life alarm (only valid for Pac 3500) – Before the end of the device’s usable life, a warning period begins. During Warnings this period the remaining life time flashes just after turning the device on, e. Code Cause Remedies...
  • Page 13: Technical Specifications

    11 Technical specifications 12 Sensor specifications Environmental Conditions During operation –30 to 50 C / –22 to 122 Reproducibility 700 to 1300 hPa Zero point: ±2 ppm ±0.1 ppm ±0.2 vol.-% ≤ ≤ ≤ 10 to 90% relative humidity Sensitivity: ≤...
