JBL
SSW-4
®
In-Wall Loudspeaker
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JBL Synthesis SSW-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harman JBL Synthesis SSW-4

Summary of Contents for Harman JBL Synthesis SSW-4

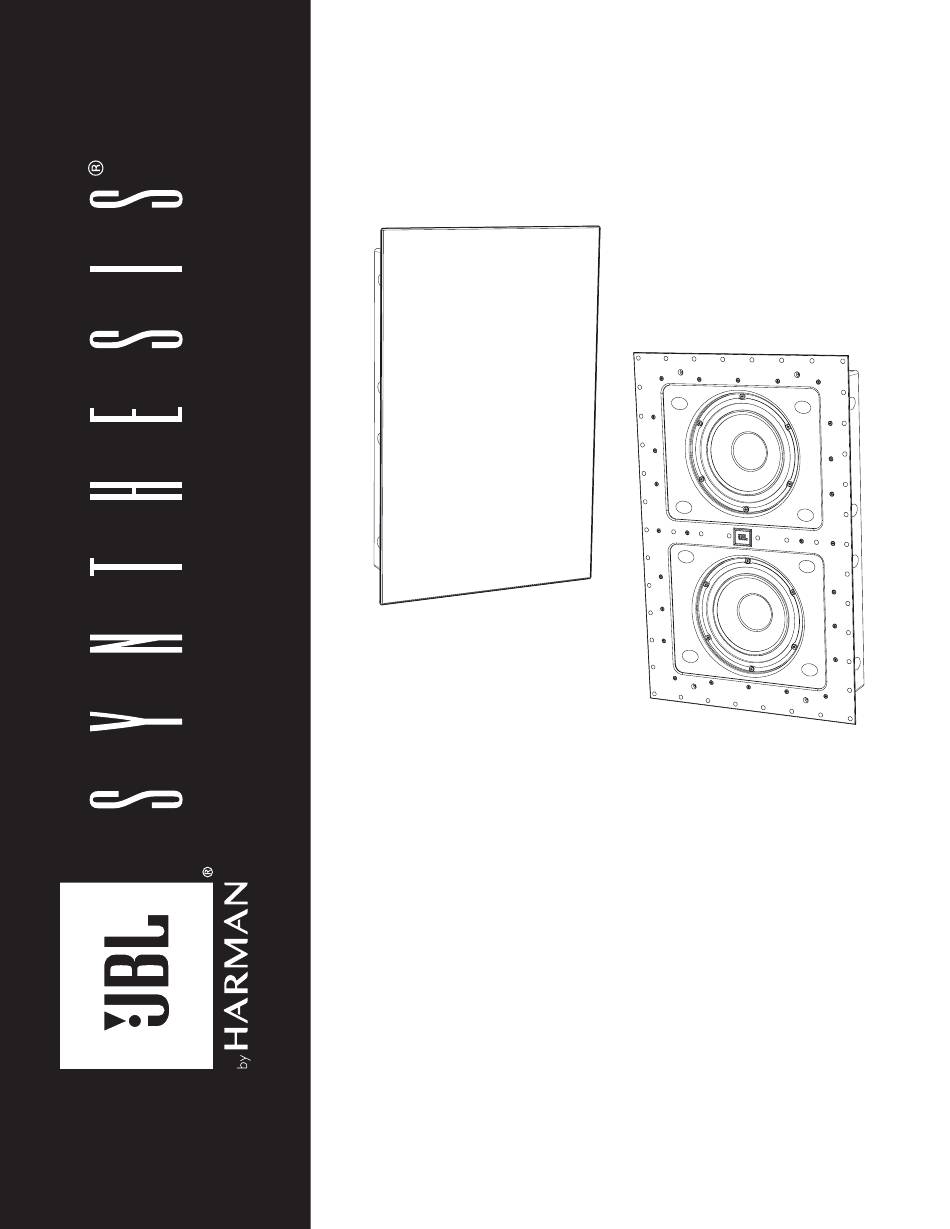

  • Page 1 SSW-4 ® In-Wall Loudspeaker OWNER’S MANUAL...

  • Page 2: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS 1. Use only attachments/accessories specified by the manufacturer. 2. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use This product must not be disposed of or dumped with your other household waste. caution when moving the cart/apparatus combination to avoid injury You are liable to dispose of all your electronic or electrical waste equipment by from tip-over.

  • Page 3: About Jbl

    ABOUT JBL ® Since 1946, JBL has stood at the forefront of loudspeaker design and performance. Backed by Harman International’s ® world leading research and design facilities, JBL loudspeakers benefit from cutting edge resources such as: ®...

  • Page 4: Unpacking

    WARNING: HARMAN International assumes no responsibility for improper installation of hardware or for any personal injuries or product damages resulting from improper installation or a fallen loudspeaker.

  • Page 5: Cutting The Hole

    CUTTING THE HOLE 14.50in (368.30mm) First, use a pencil to mark the hole using the dimension drawing to the right. Then carefully use the sheetrock knife to cut the hole along your markings. The hole should just fit between two studs, which the SSW-4 will use for isolation mount attachment.

  • Page 6: Wiring Examples, Sda 8300 To Ssw-4

    CONNECTING THE JBL SDA 8300 AMPLIFIER TO THE JBL SSW-4 SUBWOOFER MODULE The JBL SSW-4 Subwoofer is intended for use with only the JBL SDA 8300 amplifier (sold separately). IMPORTANT! All crossover settings are contained on a DSP preset file that should be downloaded from the JBL SSW-4 product webpage at www.jblsynthesis.com.

  • Page 7: Installation

    INSTALLATION Once the wire is attached to the SSW-4 in-wall subwoofer, place the subwoofer into the opening you have cut in your wall. The SSW-4 is designed for the terminals to point up as it sits in the wall. When the SSW-4 is in the wall, tighten the attachment screws at the top and bottom. This will bind the wall to the dog- leg clamps at the ends of the subwoofer.

  • Page 8: Troubleshooting

    TROUBLESHOOTING SYMPTOM SOLUTION If there is no sound from any • Check that the source/receiver/SDA 8300 is on and playing. of the speakers: • Check all wires and connections between the receiver/SDA 8300 and the speakers. Make sure all wires are connected. Make sure none of the speaker wires are frayed, cut, punctured or touching each other.

  • Page 9: Limited Warranty

    LIMITED WARRANTY JBL loudspeakers are warranted against defects. The duration of a warranty depends on the laws in the country in which it was purchased. Your local JBL retailer can help you determine the duration and coverage of your warranty. For more information please visit: JBLSYNTHESIS.COM Please visit JBLSYNTHESIS.COM for additional language support on the user manual.
  • Page 10 8500 Balboa Boulevard, Northridge, CA 91329 USA www.jblsynthesis.com © 2018 HARMAN International, Incorporated. All rights reserved. JBL and the JBL logo are trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. Features, specifications and appearance are subject to change without notice.
