USer'S GUide
SRX812P
SRX815P
SRX835P
SRX818SP
SRX828SP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JBL SRX800 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Harman JBL SRX800 Series

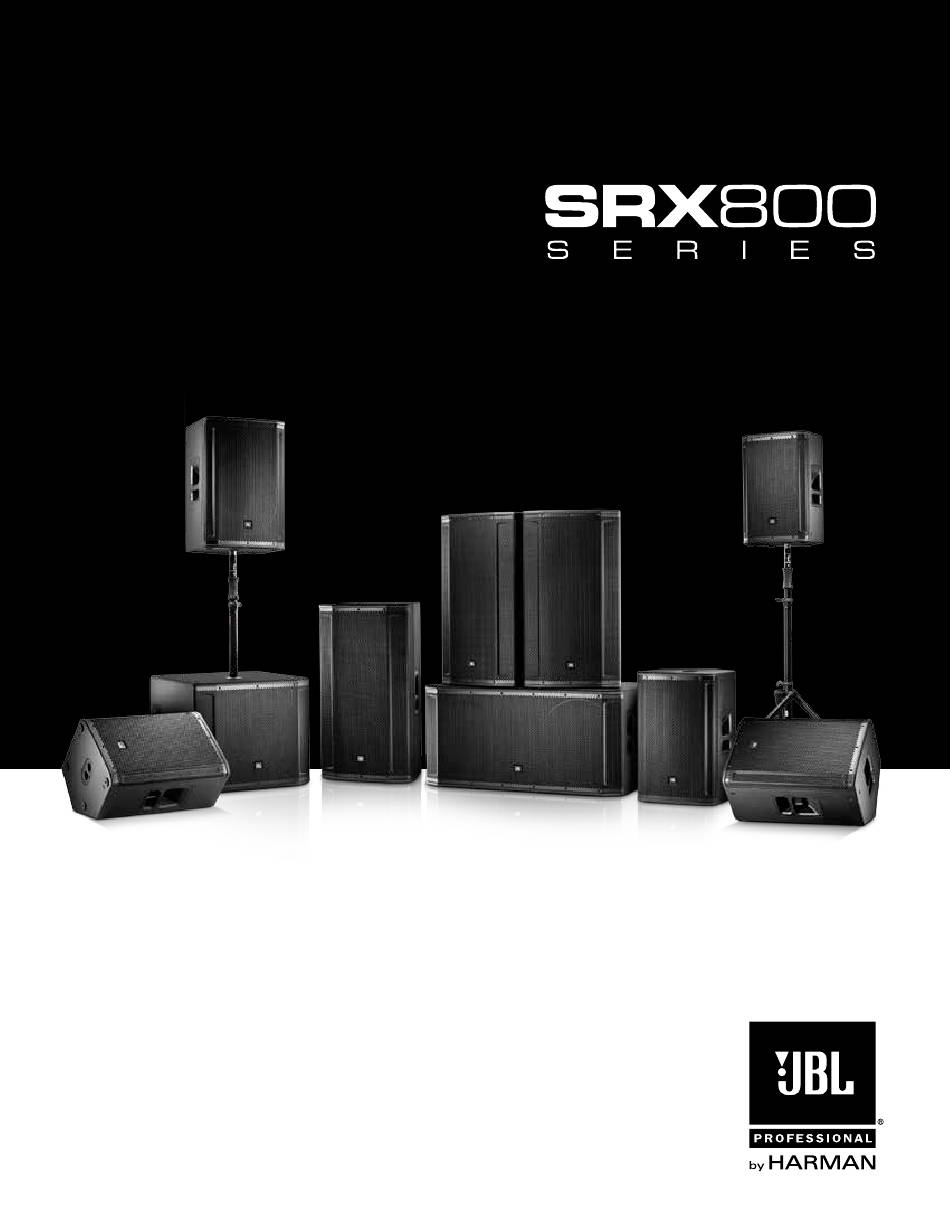

  • Page 1 USer’S GUide SRX812P SRX815P SRX835P SRX818SP SRX828SP...
  • Page 3: Table Of Contents

    CONTENTS Safety Instructions ............................ Declaration Of Conformity ......................... Quick Setup Guide ............................. SRX812P, SRX815P, SRX835P Back Panel ....................SRX828SP, SRX818SP Back Panel ......................Overview - SRX800 Family ........................SRX812P, SRX815P - Block Diagram ....................... SRX835P - Block Diagram ........................SRX818SP - Block Diagram ........................
  • Page 4: Safety Instructions

    SafETy INSTruCTIONS Before You Begin - Important Safety Information Before using your SRX800 speaker system please review the following for important ® information on safety and protection of your investment in quality loudspeakers. 1. Read these instructions. 2. Keep these instructions. 3.
  • Page 5: Declaration Of Conformity

    DEClaraTION Of CONfOrmITy Safety And EMC Compliance Specifications Report No. Description EN 55103-1:2009 +A1:2012 EMC Compatibility – Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 1: Emissions EN 55103-1:2009 +A1:2012 Magnetic Field Emissions – Annex A @ 10cm and 20cm EN 61000-3-2:2006 +A1:2008 +A2:2009 Limits for Harmonic Current Emissions (equipment input current less than or equal to 16A EN 61000-3-3:2013 Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply systems Rated Current less than...
  • Page 6: Quick Setup Guide

    LINK LINK DATA DATA SERIAL NO. A HARMAN INTERNATIONAL COMPANY DESIGNED AND ENGINEERED IN THE USA JBL PROFESSIONAL NORTHRIDGE, CA USA SERIAL NO. JBL PROFESSIONAL NORTHRIDGE, CA USA MADE IN MEXICO A HARMAN INTERNATIONAL COMPANY DESIGNED AND ENGINEERED IN THE USA SERIAL NO.
  • Page 7 CH2 Direct Out LINK Link LED DATA SERIAL NO. JBL PROFESSIONAL NORTHRIDGE, CA USA A HARMAN INTERNATIONAL COMPANY DESIGNED AND ENGINEERED IN THE USA Data LED MADE IN MEXICO Locking IEC Inlet Power it on way before plugging in your audio source. Turn CH1 and/or CH2 Encoders to the left until the level reads “- 100”...
  • Page 8: Srx812P, Srx815P, Srx835P Back Panel

    Mix Out CH2 Encoder NETWORK Ethercon Connector CH2 Input CH2 Direct Out LINK Link LED DATA SERIAL NO. JBL PROFESSIONAL NORTHRIDGE, CA USA A HARMAN INTERNATIONAL COMPANY DESIGNED AND ENGINEERED IN THE USA Data LED MADE IN MEXICO Locking IEC Inlet...
  • Page 9 SrX812p, SrX815p, SrX835p BaCk paNEl LCD Screen Master Encoder Allows users to access presets and basic controls for the system without a Controls the master volume of the unit. By turning the knob counter-clockwise network connection. Controlled with the Master Encoder and the Back Button. you will be lowering the overall volume of the speaker.
  • Page 10: Srx828Sp, Srx818Sp Back Panel

    CH1 Input BACK NETWORK Ethercon Connector CH2 Input CH2 Direct Out LINK Link LED DATA SERIAL NO. JBL PROFESSIONAL NORTHRIDGE, CA USA A HARMAN INTERNATIONAL COMPANY DESIGNED AND ENGINEERED IN THE USA Data LED MADE IN MEXICO Locking IEC Inlet...
  • Page 11 SrX828Sp, SrX818Sp BaCk paNEl LCD Screen Master Encoder Allows users to access presets and basic controls for the system without a Controls the master volume of the unit. By turning the knob counter-clockwise network connection. Controlled with the Master Encoder and the Back Button. you will be lowering the overall volume of the speaker.
  • Page 12: Overview - Srx800 Family

    OvErvIEw - SrX800 famIly SRX812P SRX815P SRX835P SRX818SP SRX828SP Thank you for purchasing the new JBL SRX800! The SRX800 Series is the next generation high performance powered loudspeaker system from JBL Professional. Comprising three full range and two subwoofers, the SRX800 boasts an array of premium features that make it the very best system in its class.
  • Page 13: Srx812P, Srx815P - Block Diagram

    SrX812p, SrX815p - BlOCk DIaGram...
  • Page 14: Srx835P - Block Diagram

    SrX835p - BlOCk DIaGram...
  • Page 15: Srx818Sp - Block Diagram

    SrX818Sp - BlOCk DIaGram...
  • Page 16: Srx828Sp - Block Diagram

    SrX828Sp - BlOCk DIaGram...
  • Page 17: Srx812P Specifications

    SrX812p SpECIfICaTIONS System Specification System Type: Self powered 12”, two-way, bass-reflex Maximum SPL Output: 136dB Frequency Range (-10dB): 40Hz - 21kHz Frequency Response (-3dB): 48Hz - 20kHz Amplification System Power Rating: 2000W Peak, 1500W Continuous Input Impedance: 40k balanced, 20k unbalanced Line Input Gain: 21 dB Consumer Input Gain:...
  • Page 18: Srx815P Specifications

    SrX815p SpECIfICaTIONS System Specification System Type: Self powered 15”, two-way, bass-reflex Maximum SPL Output: 137dB Frequency Range (-10dB): 36Hz - 21kHz Frequency Response (-3dB): 44Hz - 20kHz Amplification System Power Rating: 2000W Peak, 1500W Continuous Input Impedance: 40k balanced, 20k unbalanced Line Input Gain: 21 dB Consumer Input Gain:...
  • Page 19: Srx835P Specifications

    SrX835p SpECIfICaTIONS System Specification System Type: Self powered 15”, three-way, bass-reflex Maximum SPL Output: 137dB Frequency Range (-10dB): 33Hz - 21kHz Frequency Response (-3dB): 41Hz - 20kHz Amplification System Power Rating: 2000W Peak, 1500W Continuous Input Impedance: 40k balanced, 20k unbalanced Line Input Gain: 21 dB Consumer Input Gain:...
  • Page 20: Srx818Sp Specifications

    SrX818Sp SpECIfICaTIONS System Specification System Type: Self powered 18”, subwoofer system Maximum SPL Output: 135dB Frequency Range (-10dB): 29Hz - 150Hz Frequency Response (-3dB): 35Hz - 120Hz Amplification System Power Rating: 1000W Peak , 750W Continuous Input Impedance: 40k balanced, 20k unbalanced Line Input Gain: 21 dB 428 mm...
  • Page 21: Srx828Sp Specifications

    SrX828Sp SpECIfICaTIONS System Specification System Type: Self powered dual 18”, subwoofer system 428 mm Maximum SPL Output: 141dB 16.87 in Frequency Range (-10dB): 29Hz - 150Hz 414 mm 16.31 in Frequency Response (-3dB): 35Hz - 120Hz Amplification 638 mm System Power Rating: 2000W Peak (1000W x 2), 1500W continuous (750W x 2) 25.11 in Input Impedance:...
  • Page 22: Purposeful Product Design

    purpOSEful prODuCT DESIGN Portability made easy The SRX800 series was designed as a versatile all-in-one solution for a variety of applications including touring and permanent installations. Special attention was given to the needs of consumers who require a high level of ruggedness, reliability, and portability.
  • Page 23: Component Elements

    From the brand new transducers to the 14-guage steel grilles, each component in the SRX800 Series was specifically designed for optimal performance in these systems. Featuring a purpose-built Crown amplifier and a full suite of user configurable DSP, these systems deliver the latest technologies from Harman Professional in one easy to use, high performing platform. 2432H HF Driver High frequencies are handled by the JBL 2432H 3”...
  • Page 24 COmpONENT ElEmENTS HiQnet Network Control With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and SRX Connect, a standalone app for iOS and Android.
  • Page 25: Back Panel Lcd

    BaCk paNEl lCD INTRO Introduction JBL SRX815P INTRO The LCD Screen on the back panel of the speaker allows basic control of the system, as well as INTRO JBL SRX815P access to presets and network settings. JBL SRX815P INTRO JBL SRX815P Plug in the system and power it on.
  • Page 26 METERS AUTO SLEEP MAIN MENU AUTO DIM input MEters METERS PRESET MAIN AUTO SLEEP INPUT METERS AUTO DIM input MEters METERS BaCk paNEl lCD AUTO SLEEP INPUT METERS input MEters METERS INPUT METERS input MEters INPUT METERS input MEters Meters INPUT METERS NETWORK MENU 1 - IP input MEters...
  • Page 27: Srx Presets

    SrX prESETS Main 60Hz Sub, 80Hz Sub, 100Hz Sub, 120Hz Sub This is the standard tuning for SRX812P, SRX815P, and These are the tunings to use with the SRX812P, SRX815P, SRX835P for use without a subwoofer. and SRX835P when they are used with a subwoofer other than SRX818SP or SRX828SP.
  • Page 28 SrX prESETS Preset Crossovers Presets are included to use SRX with a variety of different full range speakers and subwoofers. This chart details which presets to use in which systems to achieve optimal performance. Generic Top Box Generic Top Box Generic Top Box Generic Top Box SRX 812/815...
  • Page 29: Premium Dsp Technology

    Here it seamlessly continues Networking to act as the vehicle for artistic expression by delivering the highest quality sound reproduction and enabling the artists to convey a dazzling performance. Whether a theater of 200 or 2,000, the HARMAN solution raises the roof.
  • Page 30: Networking

    NETwOrkING SRX800 Speakers feature an Ethernet connector so that they can be controlled via Audio Architect (version 1.60 or later) or SRX Connect. The latest versions of both of these programs can be found at http://www.jblpro.com/www/products/portable-market/ srx800-series. When a connection is established, the LINK LED on the back panel of the speaker will illuminate. The DATA LED will also light to indicate that the speaker is sending and receiving information via the network.
  • Page 31 Drag speakers from the left hand panel into the room to start the left hand panel on audio architect. A full list of Audio working with them. Architect compatible Harman devices is also available for creating shows while offline. Double-click the speaker to bring up its control panel.
  • Page 32: Smart Device App

    SmarT DEvICE app Introduction For ease of use, SRX800 can be controlled via a proprietary app, SRX Connect, which is available for Android and iOS devices. It may be found at http://www.jblpro.com/www/products/portable-market/srx800-series. Once the speakers are online and connected to the network, connect your device to that same network and the app will find the speakers.
  • Page 33: Loudspeaker Placement And Suspension

    LINK SERIAL NO. JBL PROFESSIONAL NORTHRIDGE, CA USA DATA DATA A HARMAN INTERNATIONAL COMPANY DESIGNED AND ENGINEERED IN THE USA MADE IN MEXICO A HARMAN INTERNATIONAL COMPANY DESIGNED AND ENGINEERED IN THE USA SERIAL NO. JBL PROFESSIONAL NORTHRIDGE, CA USA SERIAL NO.
  • Page 34: Troubleshooting

    TrOuBlESHOOTING Symptom Likely Cause What to do Speaker not connected Verify that speaker is connected and that the circuit is on No sound to active AC power Power not switched on Switch on power and verify that power LED is on No sound, speaker is connected Speaker power cable is faulty •...
  • Page 35: Warranty Information

    warraNTy INfOrmaTION The JBL Limited Warranty on professional loudspeaker products (except for enclosures) remains in effect for five years from the date of the first consumer purchase. JBL amplifiers are warranted for three years from thedate of original purchase. Enclosures and all other JBL products are warranted for two years from the date of original purchase.
  • Page 36: Contact Information

    CONTaCT INfOrmaTION Mailing Address: JBL Professional 8500 Balboa Blvd. Northridge, CA 91329 Shipping Address: JBL Professional 8500 Balboa Blvd., Dock 15 Northridge, CA 91329 (Do not return product to this address without first obtaining prior authorization from JBL) Customer Service: Monday through Friday 8:00am -5:00pm Pacific Coast Time in the U.S.A.
  • Page 38 Part Number: 5032132 03/15 8500 Balboa Boulevard Northridge, CA 91329 USA www.jblpro.com...
