Fingerwheel  Controller
The  Fingerwheel  controller  mounts  to  Redrock  Micro
handgrips  as  well  as  any  other  .878"  diameter  rails.
Once  mounted  to  a  handgrip,  the  Fingerwheel
controller  allows  you  to  support  your  rig  and  pull  focus
simultaneously.  It  can  be  mounted  on  any  handgrip  on
your  rig,  in  any  position.

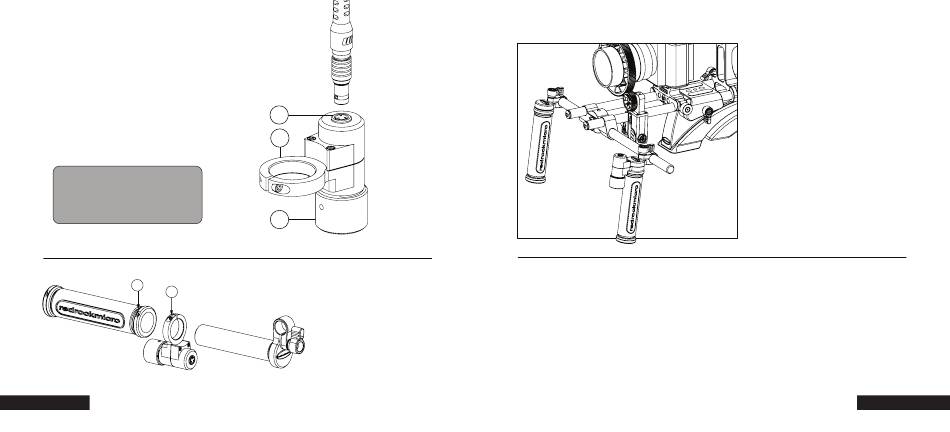

A  Control  cable  port
B  Handgrip  mounting  clamp  with
3/32"  allen  screw
C  Focus  control  knob

1
2
14
Fingerwheel
A
B
C
Mounting  to  a
microHandgrip
Loosen  the  handgrip  clamp
screw  (1)  with  a  3mm  hex
wrench  and  slide  blue  grip  off
stud.  Loosen  the  Fingerwheel
clamp  screw  (2)  and  slide
onto  stud  as  shown.  Tighten
in  place.  Slide  blue  grip  back
onto  stud  and  tighten.

Reversing  Motor  Direction  When  Using  Fingerwheel
When  using  the  Fingerwheel  and  reversing  motor  direction  is  desired,  tap  the  SET  button  on  the
Basestation  (page  10).  This  will  reverse  direction  of  the  lens.  Tap  SET  button  to  return  to  original
direction.
Mounting  to  Your  Rig
Once  the  Fingerwheel  is  mounted  to
your  handgrip,  attach  the  handgrip  to
your  rig  in  the  right  or  left  handed
position.  Route  the  cable  to  the  direct
port  on  Basestation  using  microTies™
for  a  cleaner/safer  installation.
If  you  already  own  the  microRemote
Handheld  system,  fingerwheel  control
can  be  achieved  by  purchasing  part  #
8-­114-­0004  (Fingerwheel  controller
add-­on  option).
15
Fingerwheel
