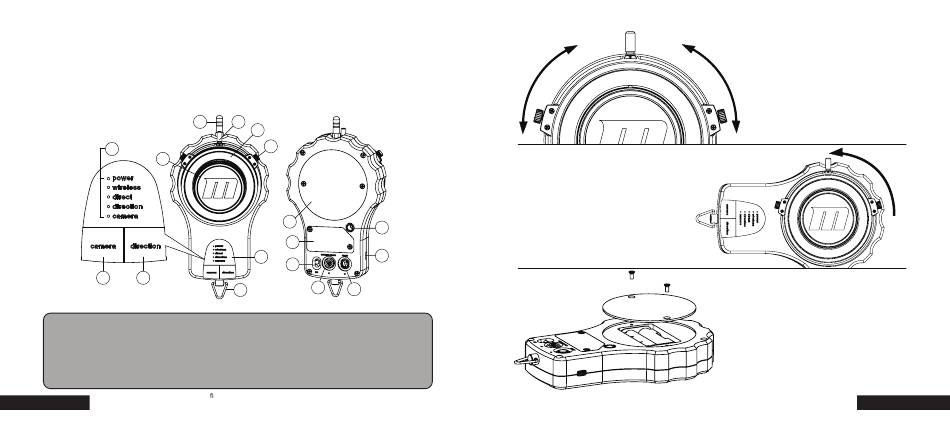

The Handheld Unit - Redrock microRemote User Manual

Handheld
In wireless mode the Remote Handheld unit can be used up to 300 feet away
(line-­of-­sight). The Handheld unit can also be wired to the Basestation (tethered)
when wireless is not available or desired. Turning on the wireless Handheld
controller overrides the Fingerwheel connection. Removing the tethered cable
from the Handheld controller reactives wireless communication.
E
A
D
B
C
A LED function indicators G Illuminated (optional) marking disk**
B Camera run/stop button* H Adjustable hard stop
C Motor direction button I Control pad
D Control knob J Lanyard hook
E Wireless radio antenna K Battery compartment
F Adjustable indicator L Radio compartment
*With optional cable (camera speci c, camera capable) camera
8 Handheld
run/stop can be controlled from the microRemote.
F
G
H
microRemote TM
www.redrockmicro.com
K
Q
L
P
I
M
N
O
J
M On/Off switch
N Power port
O Direct control port
P Mini USB port
Q Radio channel selector
**See page 17 for illuminated marking disk
information
Adjusting the Indicator
The adjustable indicator allows you to hold
the Handheld unit however you find most
comfortable. Decide which position works
best for you and bring the indicator to the 12
O'clock position.
To adjust the indicator, loosen the indicator
knob. Slide to desired position. Tighten knob.
Adjusting the Hard Stops
Rather than relying solely on marks on the
marking disk, the adjustable hard stops
help you achieve better accuracy and
repeatable focus.
Loosen the hard stop thumb screw. Slide
to desired position. Tighten thumb screw.
Changing the Batteries
The handheld unit runs on 2 AA batteries,
included with your purchase. Loosen the
two screws in the battery compartment
cover. Remove the cover, insert batteries,
and replace cover.
Handheld 9
