Torque Motor™
*
B
C
D
Flipping the Gear
To accommodate almost any lens you shoot with, the
Torque Motor drive gear is functional on both sides.
Simply pull the gear out, position it on the opposite side,
line up with peg, and push firmly into place. Make sure
drive gear is fully seated and engaged before using.
12 Motor
The Torque Motor is designed with a small
footprint, making it perfect for compact rigs
but powerful enough for almost any set-­up.
The Torque Motor comes with a 15mm rod
mounting clamp. It can be mounted in any
position necessary to achieve optimal
performance and usability.

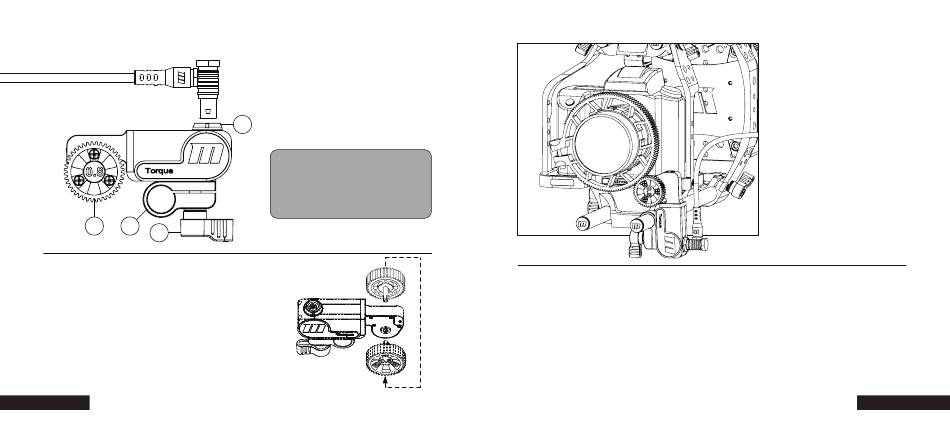

A
A Control cable port
*Note direction of cable elbow
B Reversible drive gear
C 15mm rod clamp
D Adjustable ratcheting thumb screw
Mounting to
Your Rig
Loosen the motor thumb screw,
which loosens both the 15mm
clamp and the vertical height
adjustment mechanism. Engage
the teeth of the motor drive gear
with the teeth of the lens or lens
gear without applying any
pressure. Mounting the gear
too tightly may affect its
performance and noise.
Tighten the 15mm clamp. The
motor can also be mounted
upside-­down to create a larger
distance between the rail and
the drive gear.
