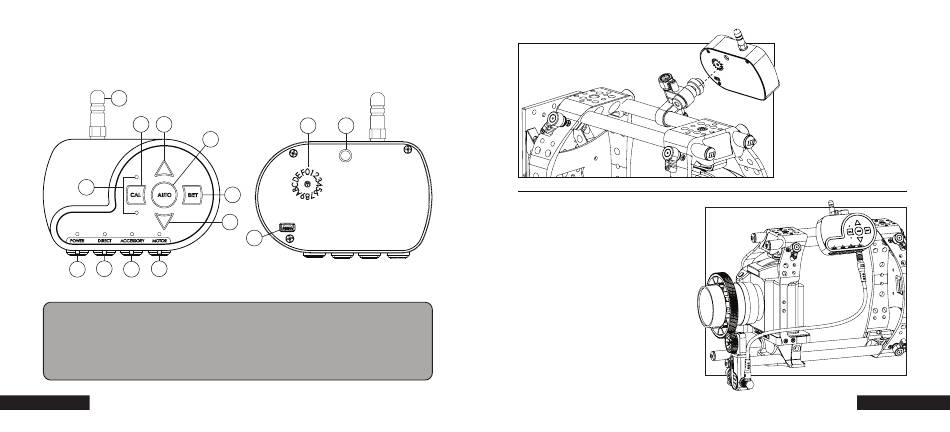

Basestation
The  Basestation  controls  all  the  major  functions  of  the  microRemote
system:  lens  calibration,  motor  torque  adjustment,  and  accessory  control.
A
B
C
G
H
I
J
K

A  Wireless  antenna
B  Manual  calibration  button
C  Up  button
D  Auto  calibration  button
E  Manual  calibration  set  button
F  Down  button
G  Calibration  direction  /  Error  indicators
10
Basestation
M
N
D
E
F
L
H  Power  port  /  power  LED  indicator
I    Direct  connect  port  /  direct  connect  LED  indicator
J  Accessory  port  /  accessory  LED  indicator
K  Motor  port  /  motor  LED  indicator
L    Mini  USB  port
M  Radio  channel  selector
N  ¼-­20  mounting  point
Lens  Calibration
The  Basestation  motor  controller  contains  an
auto-­torque  feature.  This  feature  calculates  the
ideal  amount  of  torque  for  optimal  performance.
Please  follow  these  steps  EACH  TIME  you
remove  the  motor  or  replace  the  lens.
1.  Attach  motor  to  rails  in  line  with
focus/iris/zoom  gear,  carefully  following  the
instructions  on  page  13.
2.  If  performing  an  auto-­calibration,  simply
tap  the  AUTO  button  (D).
3.  If  performing  a  manual  calibration,  refer  to
Quick  Start  guide  (page  7).
Mounting  to
Your  Rig
Attach  a  microMount™
or  other  1/4-­20  mounting
device  to  any  15mm  rod
on  your  rig.  The
Basestation  can  be
mounted  up  to  18  inches
away  from  the  motor
(cable  length  limited).
Basestation
11
