Telligent® level control

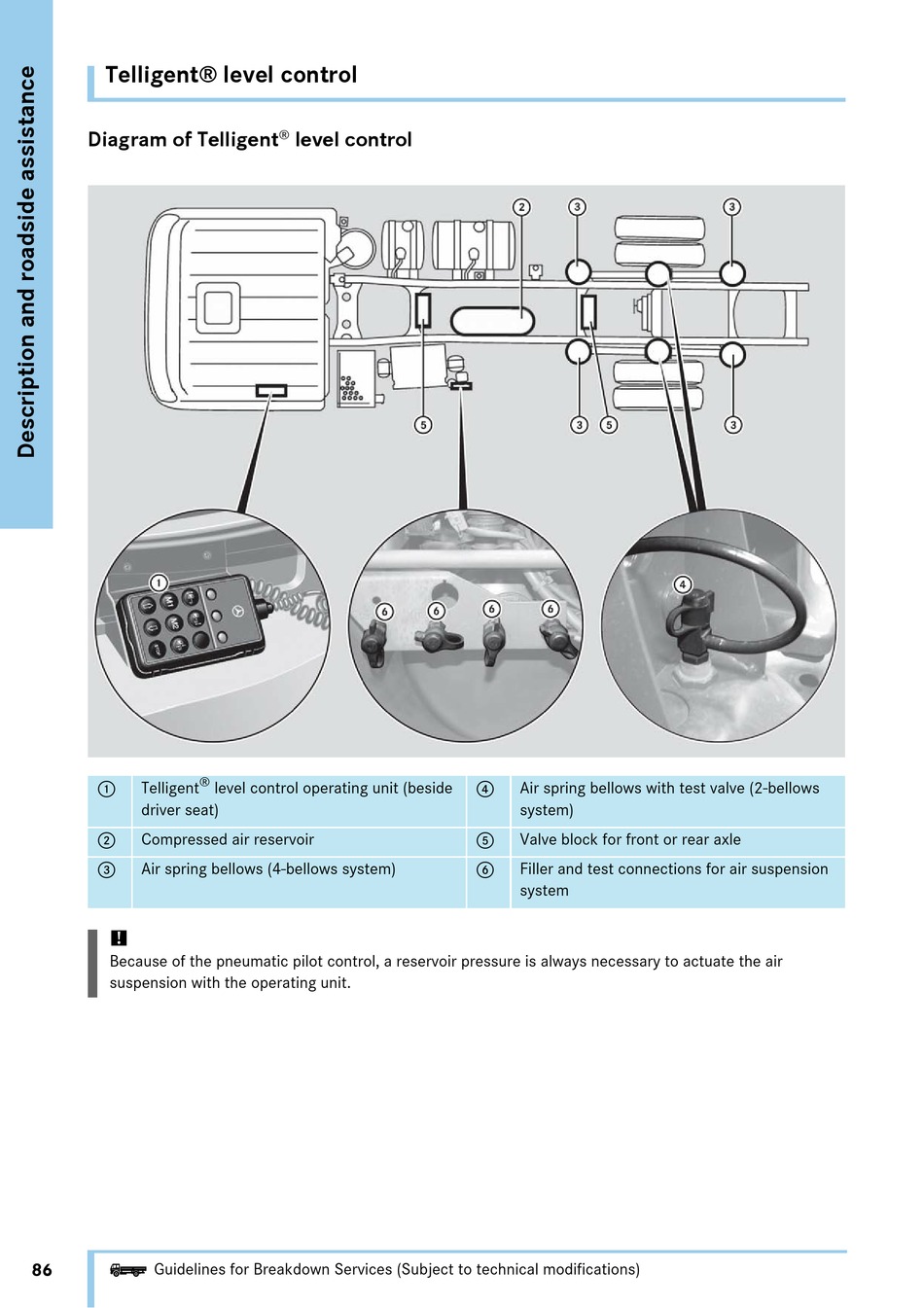

Diagram of Telligent
®
1
Telligent
driver seat)
2
Compressed air reservoir
3
Air spring bellows (4-bellows system)
!
Because of the pneumatic pilot control, a reservoir pressure is always necessary to actuate the air
suspension with the operating unit.
86
Guidelines for Breakdown Services (Subject to technical modifications)
i
level control
®
level control operating unit (beside
4
Air spring bellows with test valve (2-bellows
system)
5
Valve block for front or rear axle
6
Filler and test connections for air suspension
system
